Jonsered HT21 Spare Parts Manual

R
POULAN PARTS LIST
R
R
POULAN PRO PARTS LIST
PARAMOUNT PARTS LIST
R
JONSERED PARTS LIST
1

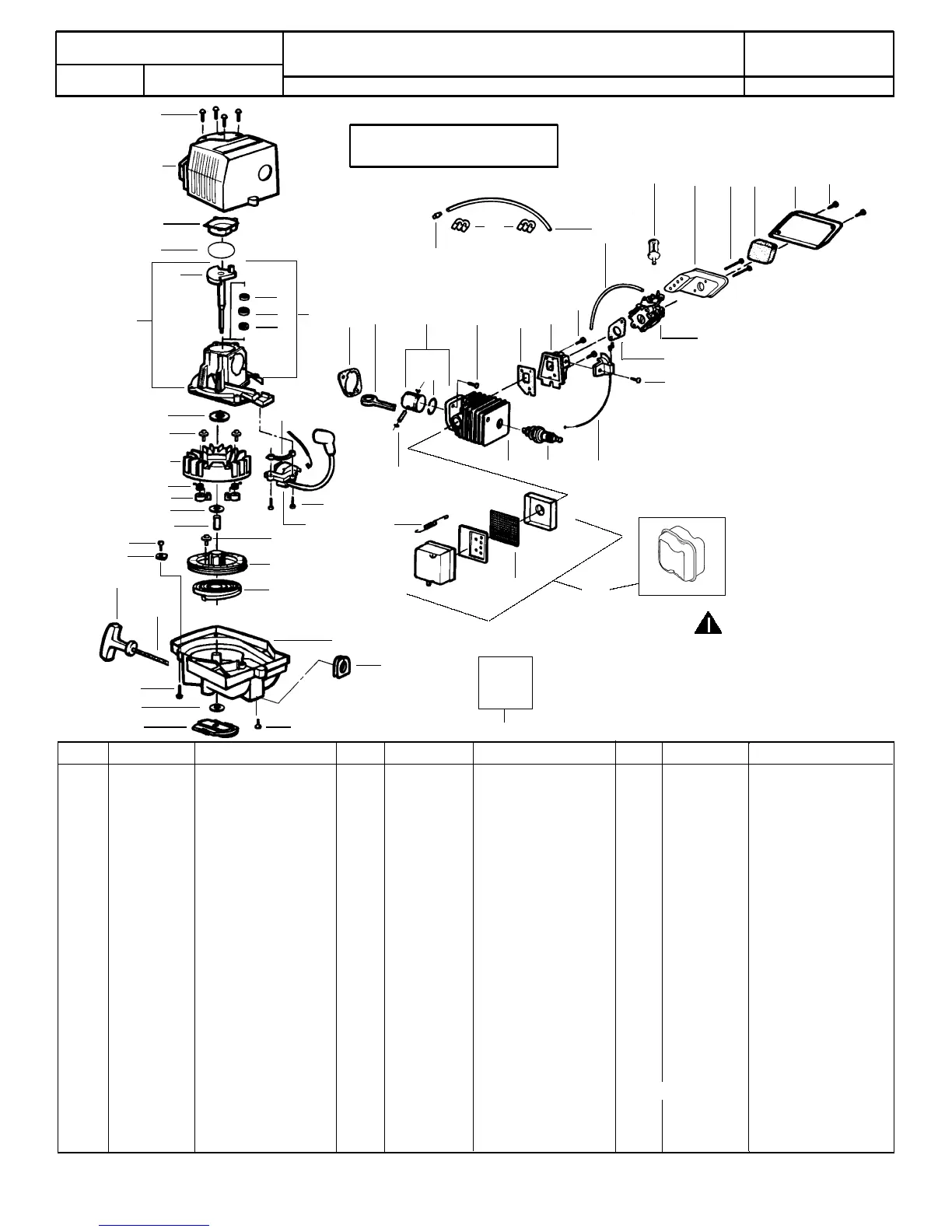

Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
MODEL(s)
530082557
HT21
DATE
6/24/02
REPLACES
530082557--2/13/02
1. 530016386 Screw--Shroud
2. 530038013 Shroud
3. 530029929 Crankcase Cover
4. 530019181 Gasket--Shrd./C’case
5. 530014307 Crankshaft Ass’y.
6. 530032125 Inner Bearing
7. 530015129 Washer
8. 530071615 Kit--Crankcase Seal
9. 530055728 Outer Bearing
10. 530012491 Crankcase Ass’y.
(Incl. 6,8,9)
11. 530015941 Retaining Ring
12. 530016080 Screw--Pulley
13. 530039149 Flywheel Ass’y.
14. 530036145 Spacer--Ignit. Mod.
15. 530039163 Ignition Module
16. 530015954 Screw--Ignit. Mod.
17. 530016191 Spring--Starter Dog
18. 530049284 Starter Dog
19. 530015828 Washer
20. 530015930 Flywheel Spacer
21. 530069232 Rope Kit
22. 530015963 Retainer
23. 530015496 Screw--Retainer
24. 530069353 Starter Pulley Kit
25. 530042085 Starter Spring
26. 530027569 Starter Handle
27. 530015886 Screw--Fan Housing
28. 530014396 Clutch Ass’y. Kit
29. 530014610 Fan Housing Ass’y.
30. 530019182 Grommet
31. 530015882 Screw--Flywheel
32. 530016197 Muffler Spring
33. 530015934 Screw--Fan Hsg/Shrd.
34. 530036180 Muffler Screen
35. 530023877 Fuel Line Fitting
3 6. -- -- -- M uf f l e r K i t
530069659 Old Style
530071574 New Style
37. 530019223 Cylinder Gasket
38. -- Piston Ring
530029924 18cc (Type 1--3)
530036404 21cc (Type 4)
39. -- Piston Kit(Incl. 38 & 55)
530069613 18cc (Type 1--3)
530069621 21cc (Type 4)
40. 530015953 Screw--Cylinder
41. -- Cylinder
530069614 18cc (Type 1--3)
530069619 21cc (Type 4)
42. 952030249 Spark Plug(RCJ--6Y)
43. 530019233 Gasket--Cylin./Carb.
44. 530049024 Carb. Adaptor
45. 530016014 Screw--Carb. Adap.
46. 530014384 Throttle Cable Ass’y.
47. 530015775 Screw--Throtl. Cable
48. 530019194 Gasket--Carburetor
49. 530036192 Air Box
50. -- Carburetor
530035306 Type 1 -- WT 221
530069682 Type 2--4 -- C1U--w4
51. 530015849 Screw--Air Box
52. 530029934 Air Filter Foam
53. 530036193 Air Filter Cover
54. 530015635 Screw--A.F. Cover
55. 530015162 Piston Pin Retainer
56. 530071573 C’case & C’shaft Assy.
(Incl. 5 & 10)
57. 530069622 Engine Gasket Kit
(Incl. 4, 37, 43 & 48)
58. 530069599 Fuel Line Kit (Incl.
(Fuel and Vent lines)
59. 530016103 Retainer Clip
60. 530095646 Fuel Pick--up Ass’y.
61. 530069615 Connecting Rod Ass’y.
-- Operator Manual
530086908 Scandinavian
530086909 European
All repairs, adjustments
and maintenance not de-
scribed in the Operator’s
Manual must be p erformed
by qualified service per-
sonnel.
WARNING
1
2
3
4
5
6
8
9
10
11
13
14
15
16
17
18
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39 40
41 42
43
44
45
46
47
48
50
49 51 52 53 54
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
55
56
Gasket
Kit
57
60
61
12
Not Shown
19
58
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
=
NEW PART NUMBER FOR THIS IPL
n
59
TYPE 1,2,3,4
7
n
n
n
n
n
n

Jonsered HT21 Specifications

General

Brand	Jonsered
Model	HT21
Category	Trimmer
Language	English
