English – 11

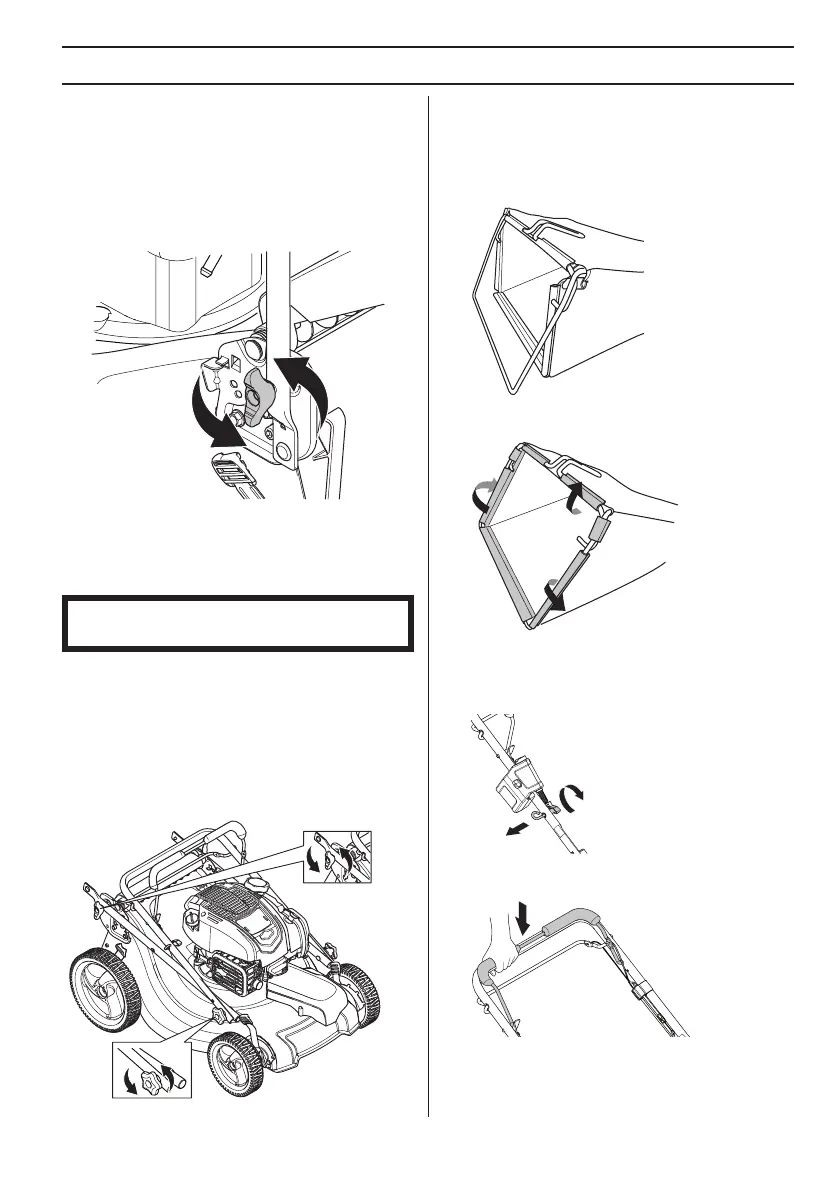

Storage/Transport position
The handle assembly can be folded to minimize space
needed for transport and storage.
CAUTION! Take care not to damage the cables and
wires when you fold the handlebar.
1 Remove the E-start module. See "Install the electric
start module".
2 Loosen the 2 handle knobs on the upper handle and
allow handle to fold down to the rear.
3 Loosen the 2 handle knobs on the lower handle and
pivot entire handle assembly forward and allow it to
rest on mower.
Vertical handle storage
The handle can be set in a vertical storage position.
1 Loosen the lower handle knobs.
2 Rotate the handle and align the handle bar pins with
the vertical slots on the handle bracket
3 Retighten the knobs..
Grass catcher
Assembly of the catcher
1 Put the grass catcher frame into the grass bag with
the rigid part of the bag on the bottom. Make sure the
handle of the frame is outside of the top of the bag.
2 Secure the grass bag to the frame by using the
quick-action clips.
Starter handle
Install starter handle
1 Loosen the T-knob.
2 Hold the operator presence control bar against the
upper handle.
3 Grip the starter handle, slowly pull the engine starter
handle until the starter rope can slip into the loop of
the rope guide.
4 Tighten the T-knob.
ASSEMBLING AND ADJUSTMENTS
