18
1
16
15
12
13
17
10
5
14
4
3
8
9
7
8
9
7
2
6
22
21
5
24
25
26
23
seat_lt.bolt_6
1 532 40 10-42 Seat
2 532 14 05-51 Bracket Pnt Pivot Fender
3 871 11 06-16 Bolt Fin Hex 3/8-16 x 1
4 819 13 16-10 Washer Flat 13/32 x 1 x 10 Ga.
5 532 14 50-06 Clip Push In Hinged
6 873 80 06-00 Nut Lock Hex w/Ins 3/8-16
7 532 12 41-81 Spring Seat Cprsn 2 250 Blk Zi
8 817 00 06-16 Screw 3/8-16 x 1.5
9 819 13 16-14 Washer 13/32 x 1 x 14 Ga.
10 532 19 55-30 Pan Pnt Seat
12 532 17 46 48 Bracket Pnt Mounting Switch
13 532 12 12-48 Bushing Snap Blk Nyl 50 Id
14 872 05 04-12 Bolt Rdhd Sht Nk 1/4-20 x 1-1/2
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
15 532 13 43-00 Spacer Split
16 532 12 12-50 Spring Cprsn
17 532 12 39-76 Nut Lock 1/4 Lge Flg Gr. 5 Zinc
21 532 17 18-52 Bolt Shoulder 5/16-18 unc-2A
22 873 80 05-00 Nut Hex Lock w/Ins 5/16-18
23 871 11 08-14 Bolt Hex
24 819 17 19-12 Washer 17/32 x 1-3/16 x 12 Ga.
25 532 12 70-18 Bolt Shoulder 5/16-18 x .62
26 810 04 08-00 Washer Lock
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

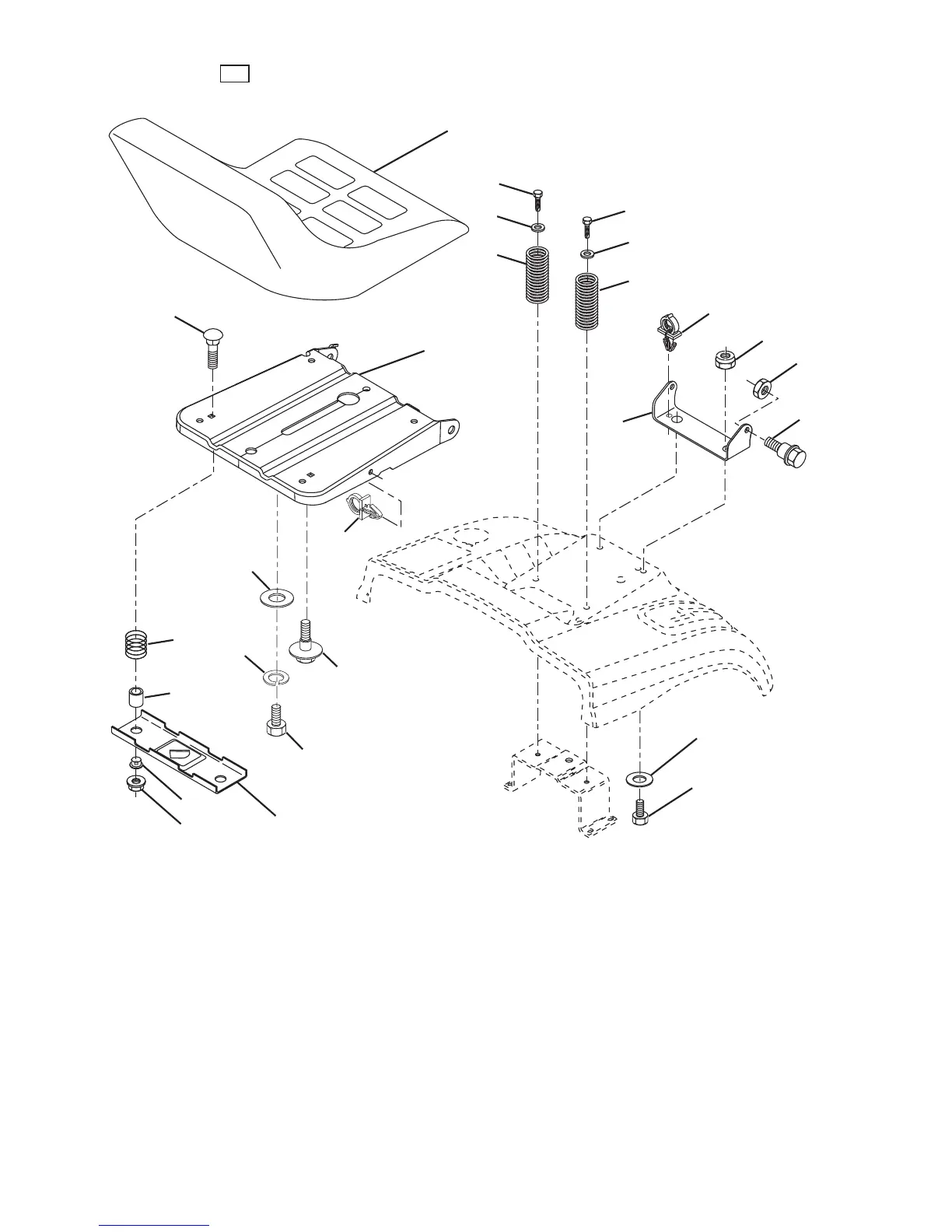

TRACTOR - - MODEL NO. LT2113CM (96061022405), PRODUCT NO. 960 61 02-24
SEAT ASSEMBLY
42
