WHEELS & TIRES
KEY PART
NO. NO. DESCRIPTION
1 532 40 03-89 Decal Warning Sym. CE
2 532 19 68-41 Decal Warning Eng. Sym.
3 532 42 26-39 Decal Hood
4 532 44 13-13 Decal Replacement
6 532 43 74-10 Decal Engine HP
7 532 44 13-70 Decal Side Panel
9 532 18 04-32 Decal Fender 100 DB/CE
10 532 14 50-05 Decal Bat Dan/Poi P/L Sym Wpn
11 532 18 21-66 Decal Mower Cut Finger Symbol
12 532 15 97-37 Decal Brake/Clutch Symbol Lt
13 532 43 75-46 Decal Bagger
14 532 15 97-36 Decal Chassis Hot Muffler
15 532 43 74-43 Decal Fender
16 532 19 68-42 Decal Warning Cutfinger
17 532 14 08-37 Decal Saddle Brake Parking
21 532 16 62-86 Decal Hex Belt Sch 92 CRD
- - 532 13 83-11 Decal Lift Handle
- - 532 44 10-22 Manual Operator's (Euro)
- - 532 44 10-23 Manual Operator's (Scan)
- - 532 44 10-24 Manual Operator's (E-Bloc)
- - 532 44 10-27 Manual Operator's (Baltic)
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 10 62-22 Tire F Ts 15 x 6 0 - 6 Service
4 532 05 99-04 Tube Inner Front #35060
5 532 13 83-36 Rim Asm 6" Front Silver Service
6 532 12 49-57 Fitting Grease
7 532 12 49-59 Bearing Flange
8 532 13 83-37 Rim Asm 8" Rear Silver Service
9 532 12 46-35 Tire R Ts 18 x 8-8 Service
10 532 12 49-26 Tube Rear 9 5 x 8 Service
11 532 17 50-39 Cap Axle Blk 1 50 x 1 00
- - 532 14 43-34 Sealant, Tire (10 oz. tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
1
5,8
4,10
3,9
11
7
wheel_1
MAX
+
_
90N
MAX
+
_
150N
11
7
3
14
21
6
17
1
12
10
3
14
7
4
13
16
2
16
15
9

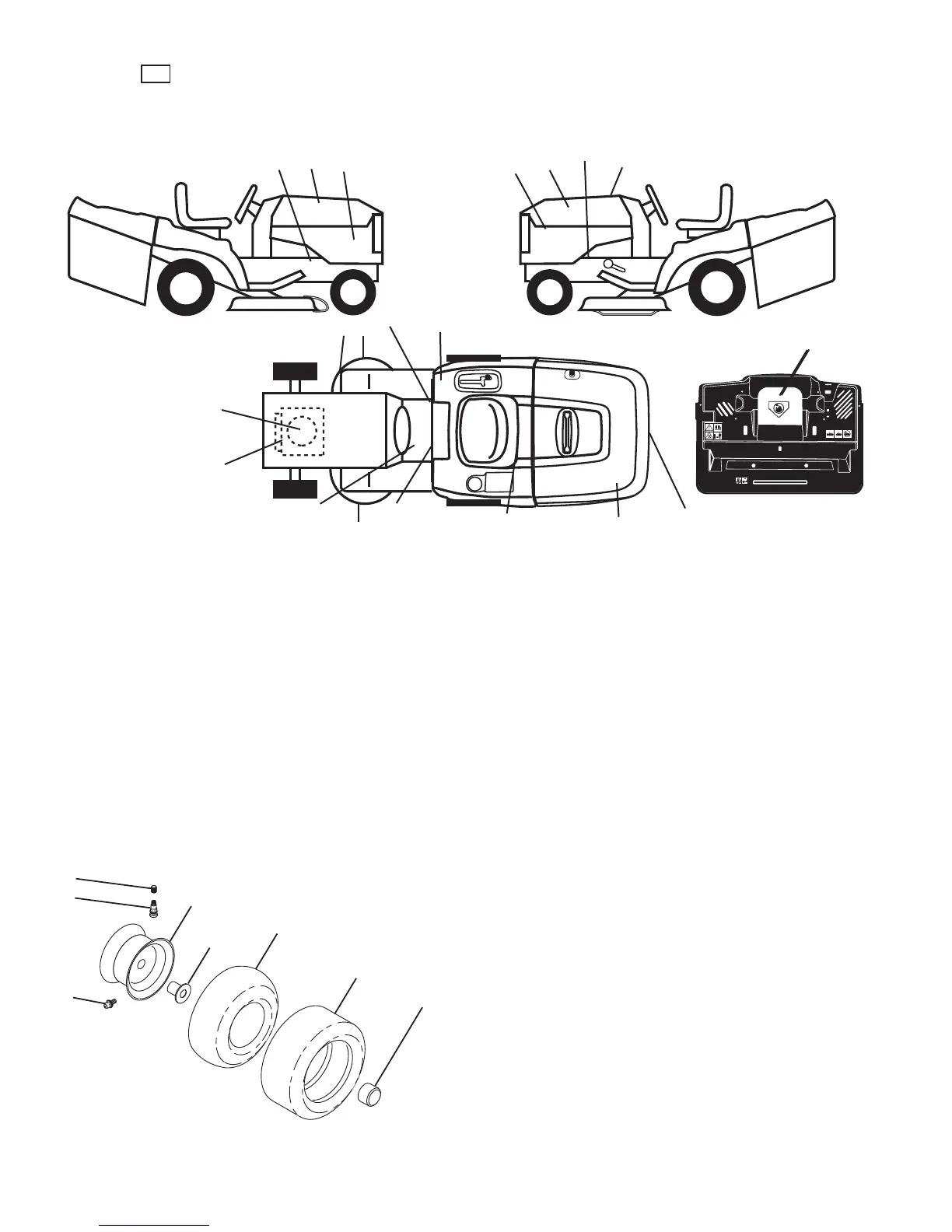

TRACTOR - - MODEL NO. LT2113CM (96061022405), PRODUCT NO. 960 61 02-24
DECALS
27
