11
ELAPSED TIME
HOURS 1/10
0000000000
AMPS
60
0
60
0
3046
OPERATION

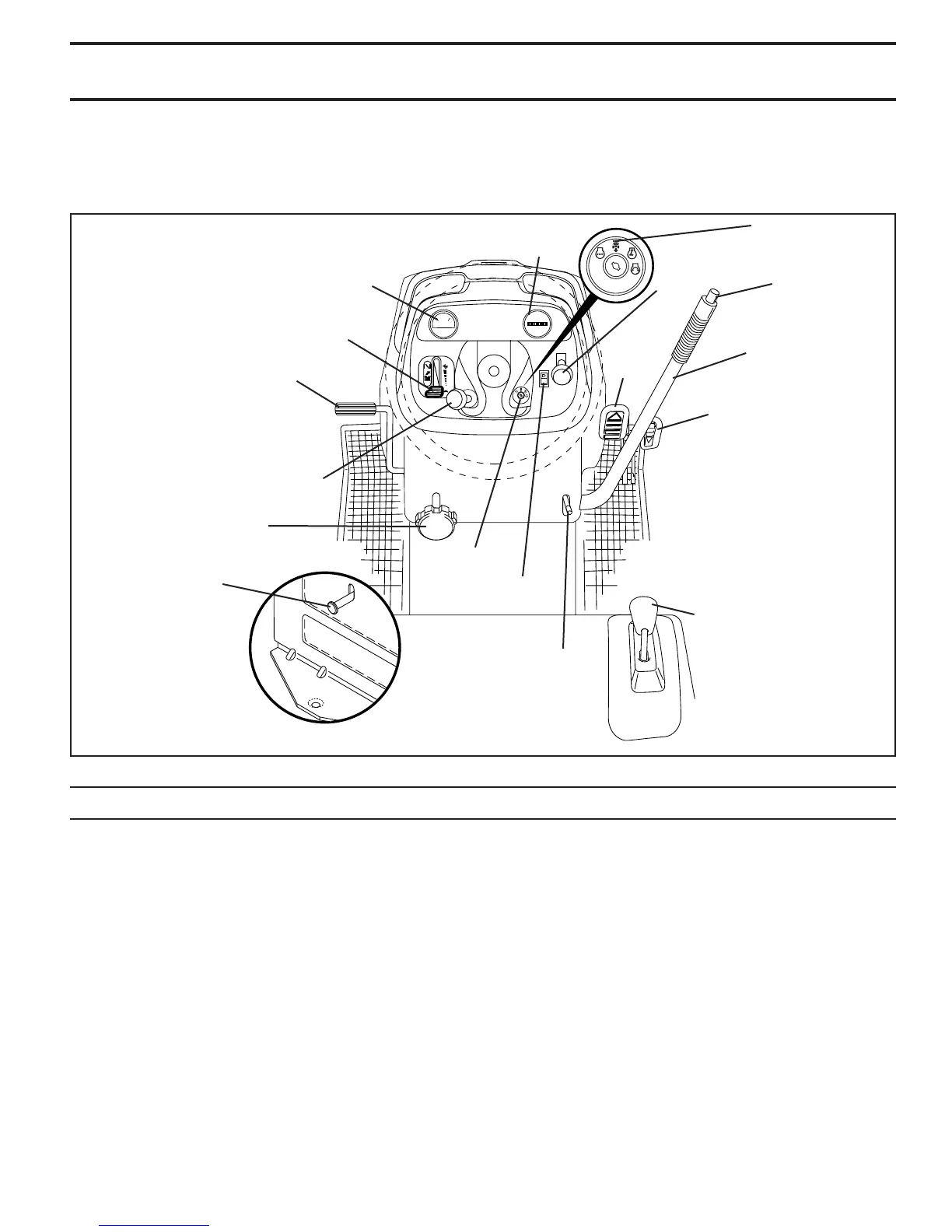

KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR
Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments.
Save this manual for future reference.
FIG. 7
Our tractors conform to the applicable safety standards of the American National Standards Institute.
AMMETER - Indicates charging (+) or discharging (-) of
battery.
ATTACHMENT CLUTCH SWITCH - Used to engage the
mow er blades, or other attachments mounted to your
tractor.
ATTACHMENT LIFT LEVER - Used to raise and lower
the mower deck or other attachments mounted to your
trac tor.
BRAKE PEDAL - Used for braking the tractor and starting
the engine.
CHOKE CONTROL - Used when starting a cold engine.
CRUISE CONTROL LEVER - Used to set forward move-
ment of tractor at desired speed without holding the forward
drive pedal.
FORWARD DRIVE PEDAL - Used for forward movement
of tractor.
FREE WHEEL CONTROL - Disengages transmission for
pushing or slowly towing the tractor with the engine off.
HEIGHT ADJUSTMENT KNOB - Used to adjust the mow er
cutting height.
HOURMETER - Indicates hours of operation.
IGNITION SWITCH - Used for starting and stopping the
engine.
LIFT LEVER PLUNGER - Used to release attachment lift
lever when changing its position.
LIGHT SWITCH - Turns the headlights on.
PARKING BRAKE - Locks clutch/brake pedal into the
brake position.
REVERSE DRIVE PEDAL - Used for reverse movement
of tractor.
REVERSE OPERATION SYSTEM (ROS) “ON” POSI-
TION - Allows operation of mower deck or other powered
attachment while in reverse.
THROTTLE CONTROL - Used to control engine speed.
BRAKE
PEDAL
THROTTLE
CONTROL
PARKING
BRAKE
ATTACHMENT
LIFT LEVER
LIFT LEVER
PLUNGER
LIGHT
SWITCH
IGNITION
SWITCH
FREEWHEEL
CONTROL
AT TACH MENT
CLUTCH
SWITCH
HEIGHT
ADJUSTMENT KNOB
CHOKE
CONTROL
CRUISE CON TROL LEVER
FORWARD
DRIVE
PEDAL
REVERSE
DRIVE PEDAL
AMMETER
HOURMETER
ROS "ON"
POSITION
