Jonsered RS51 User Manual

English – 19

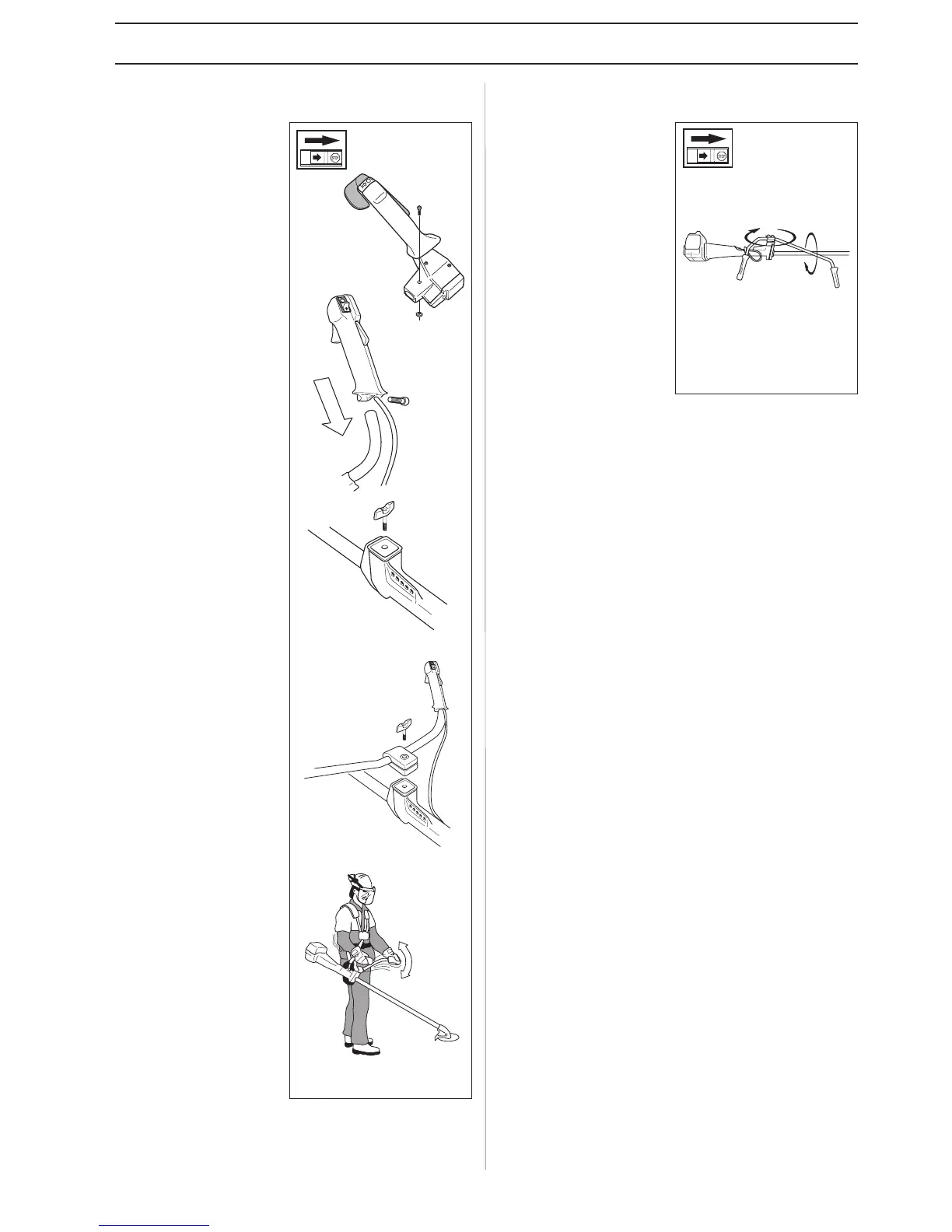

Assembling the handlebars
• Remove the screw at the
rear of the throttle
handle.
• Slide on the throttle
handle on the right-hand
side of the handlebars,
(see the diagram).
• Align the hole in the
throttle handle for the
fixing screw with the
hole on the handlebars.
• Refit the screw in the
rear of the throttle
handle.
• Fit the screw through the
throttle handle and the
handlebars and tighten.
• Unscrew the handle
from the handlebar
bracket.
• Position the handlebars
as shown. Fit the bracket
components and tighten
the handle lightly.
• Put on the harness and
hang the machine in the
suspension hook. Now
finely adjust so that the
machine gives a
comfortable working
position when it‘s
attached to the harness.
Tighten the handle.
ASSEMBLY
• The handlebars can easily
be turned to fit along the
shaft for easy
transportation and storage.
• Loosen the knob. Turn the
handles clockwise so that
the throttle comes against
the engine.
• Thereafter fold the
handlebars around the
shaft. Tighten the handle.
• Attach the transport
guard.
Transport position, handlebars
RS
GR
