OPERATING MANUAL for
BRAKE UNITS
JB10/... JB16/... JB26/... JB40/... JB52/...
(Installation set)
JB
16 of 19
01.96/00/Scho
12.4 LINE REACTOR - Allocation / Dimensions / Weight
Only with the brake unit Type JB16/500E000 a line reactor must be inserted into
the inlet to clamp „8”. This line reactor is delivered loose.
With the types JB26, 40, 52 the line reactor is already built in the unit.
HINWEIS: Brake unit typ JB10/... (all Mains voltage) and JB16/... (230V und 400V
mains voltage) do not need a serial line reactor.
Zuordnungstabelle: JB-Typ / Netzdrossel
Netzdrossel
JB-Type Type Dimensions
(B x H x T)
[mm]
Drilling
mass
(b x h) [mm]
Bore-
hole ∅
[mm]
Weight
[kg]
JB16/500.. KS 0,075 90x75x110 47x57 4 1,5

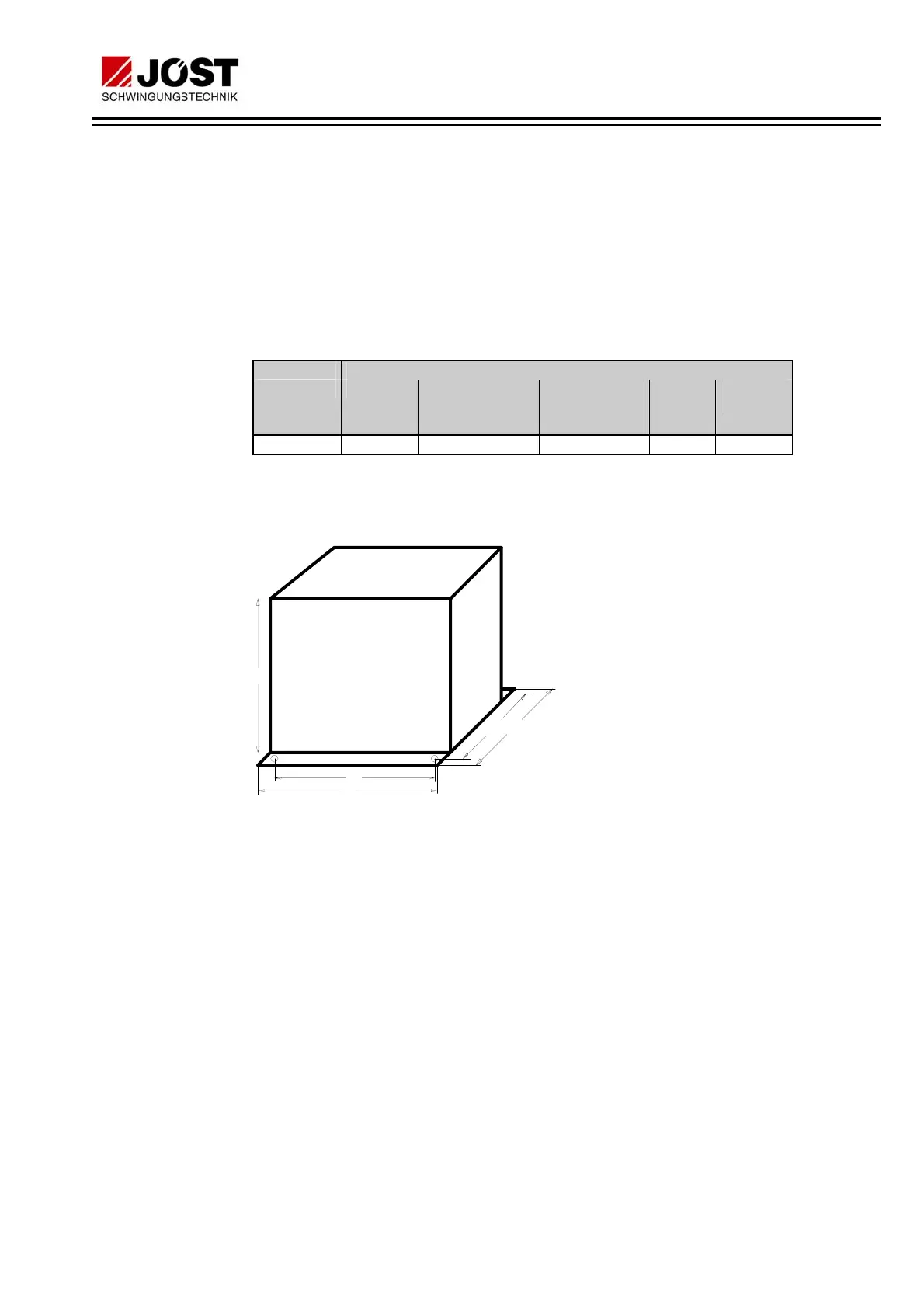

Dimensional drawing:
Line reactor
T
Hh
b
B
