5.2 Assembling the fifth wheel coupling on the
mounting plate
1
11
9
3
2
4
5
10
7
9
10
6
8
12
G50/09

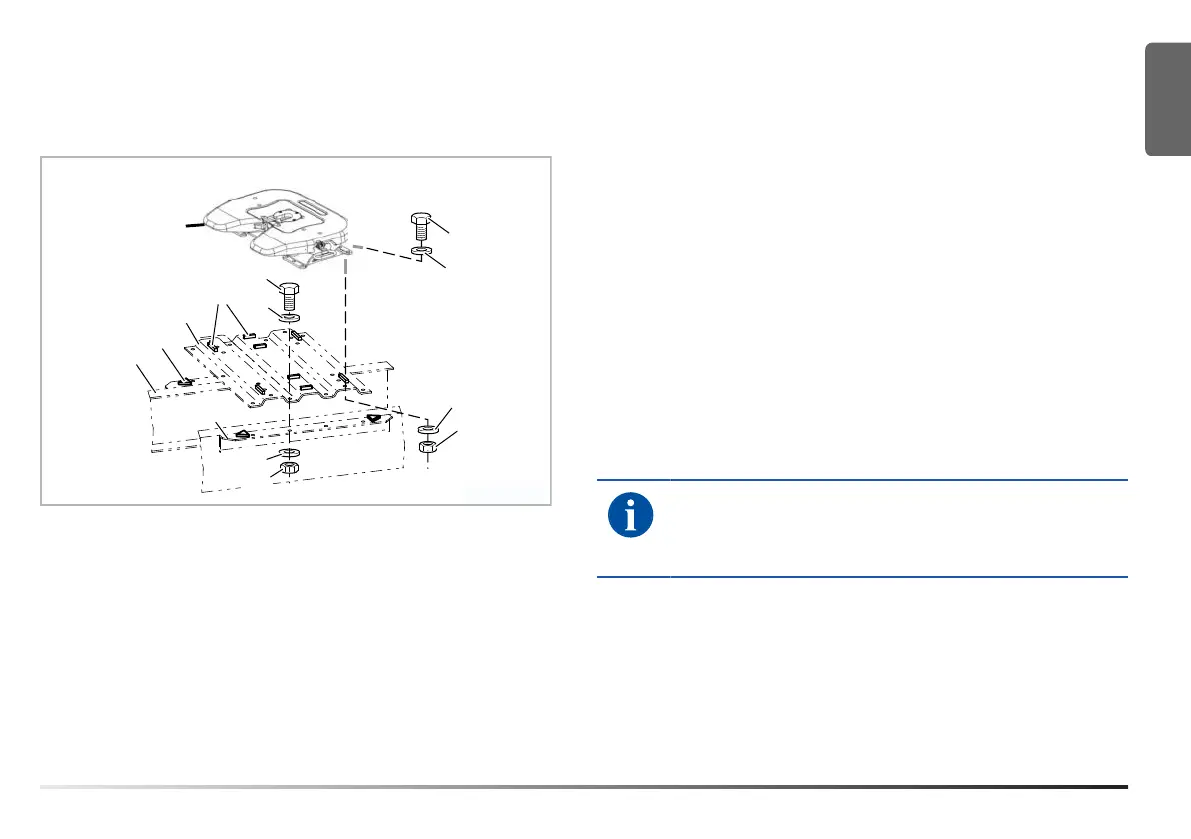

1 Fifth wheel coupling
2 Mounting plate
3 Thrust plate to secure the pedestals
4 Thrust plate to secure the mounting plate
5 Vehicle chassis
6 Vehicle auxiliary frame
7 Hexagonal bolt DIN EN 28765/28676 (DIN 960/961)
M16 x 1.5-8.8
8 Washer 17 DIN7349 6 thick (min. HV295)
9 Optional washer (min. HV295) or disc spring
10 Hexagonal nut DIN980 M16 x 1.5-8.8 or M20 x 1.5-8.8
11 Hexagonal bolt DIN EN 28765/28676 (DIN 960/961)
M16 x 1.5-8.8 or M20 x 1.5-8.8
12 Optional washer/disc spring
ADVICE!
Tightening torques must absolutely be adhered to; see
section 5.3
