Jøtul F520 - Replacing the Air Duct and Inner Bottom

10

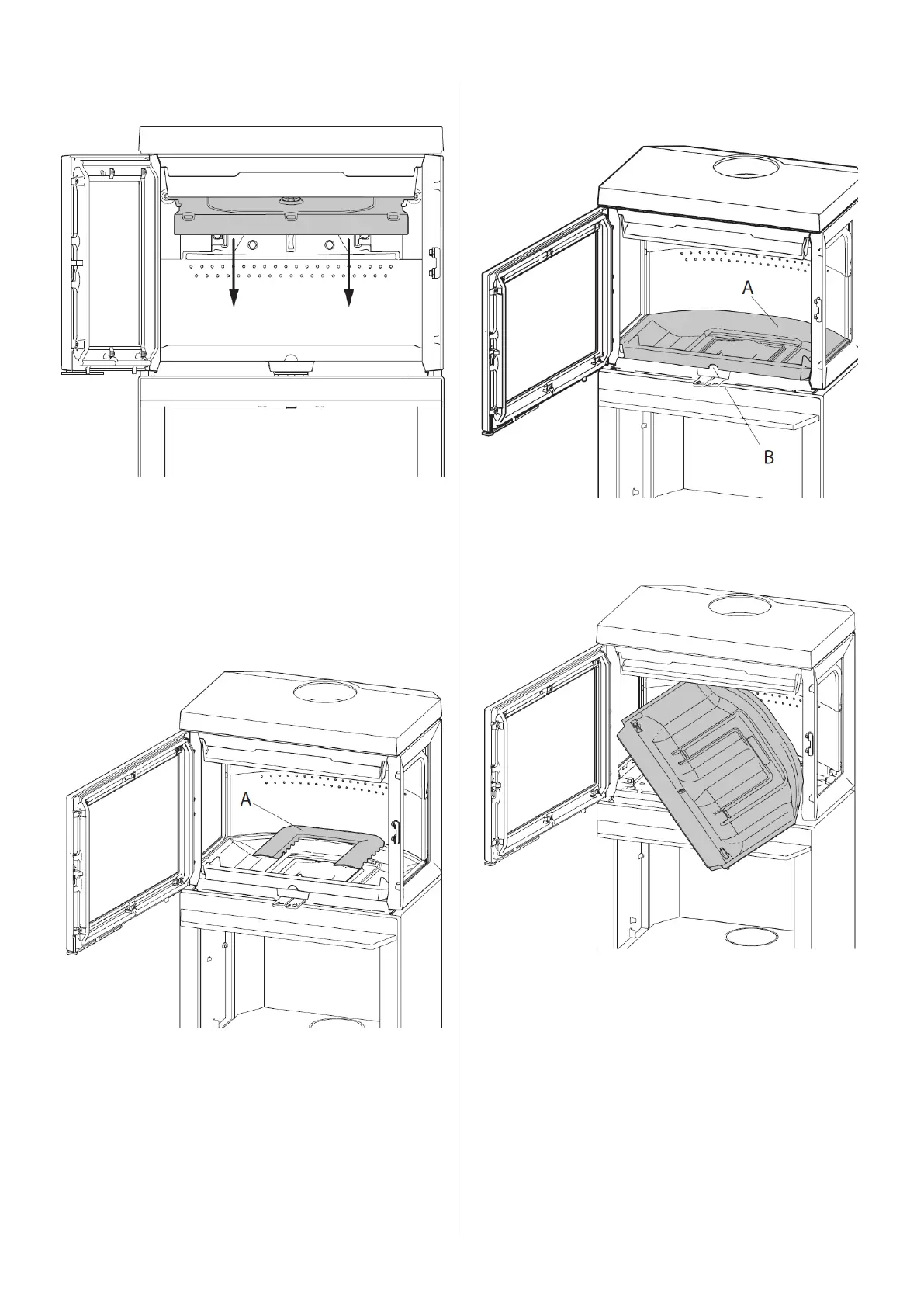

5) Lower the exhaust deflector and lift it out.
6) When refitting, follow the same procedure in reverse
order.
4.2. Replacing the air duct and inner bottom
1) Lift the air duct (A) up and remove it.
2) Take hold of the hole (B) at the front edge of the inner
bottom (A) and lift it up.
3) Turn one corner towards you and pull the inner bottom
out.
4) When refitting, follow the same procedure in reverse
order.
