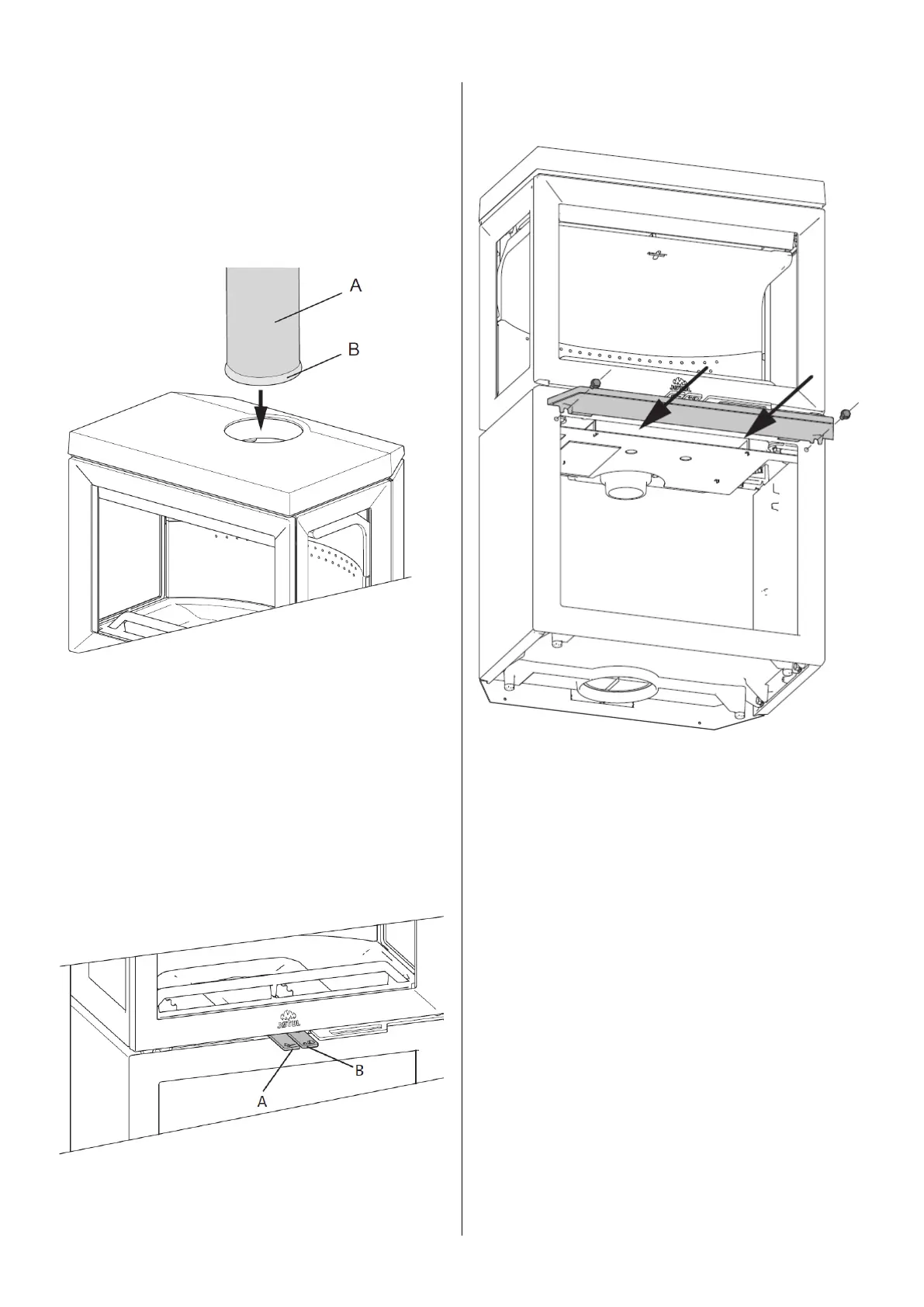

1.6. Fitting the flue pipe
The product is supplied from the factory with the smoke
outlet fitted for the top outlet.
1) Thread the flue pipe (A) through the top plate and place it
in the top smoke outlet.
2) Seal well with the gasket supplied (B).
1.7. Performance check
Always check the control handles once the product has been
assembled. These should move easily and work in a
satisfactory manner.
The Jøtul F520 is equipped with the following operating
options:
Pull out the ignition vent (A) the air vent (B) automatically
follows.
1.8. Mounting of ash lip
