DIP Switch
1. External button switch. ON - Three button switch; OFF - One button switch (X7 terminal CLS
button can be used to circularly control the main engine OPEN/STOP/CLOSE /STOP).
2. Automatic close time.
3. Automatic close time.
2 ON 3 OFF: automatic close time is 15s,
2 OFF 3 ON: automatic close time is 30s,
2 OFF 3 OFF: automatic close time is 45s,
2 ON 3 ON: no automatic close function.
Infrared connection
Infrared photocell function: In the closing process, when infrared ray of the infrared sensor is
covered, the gate will open immediately, to protect user and property security.
The distance between photocell receiver and photocell emitter should be not less than 2 meters,
otherwise will affect the induction of the photocell.
If connect the infrared photocell, please remove the short connection between I.R and GND on the
X5 terminal.
24VDC24VDC
GNDGND
I.RI.R
CLLMCLLM
COMCOM
OPLMOPLM
COMCOM
STPSTP
X5X5
10A10A 250V250V
CLSCLS
OPNOPN
X1X1
PEPE N L
X8X8
ComCom OutOut
SetSet NCNC

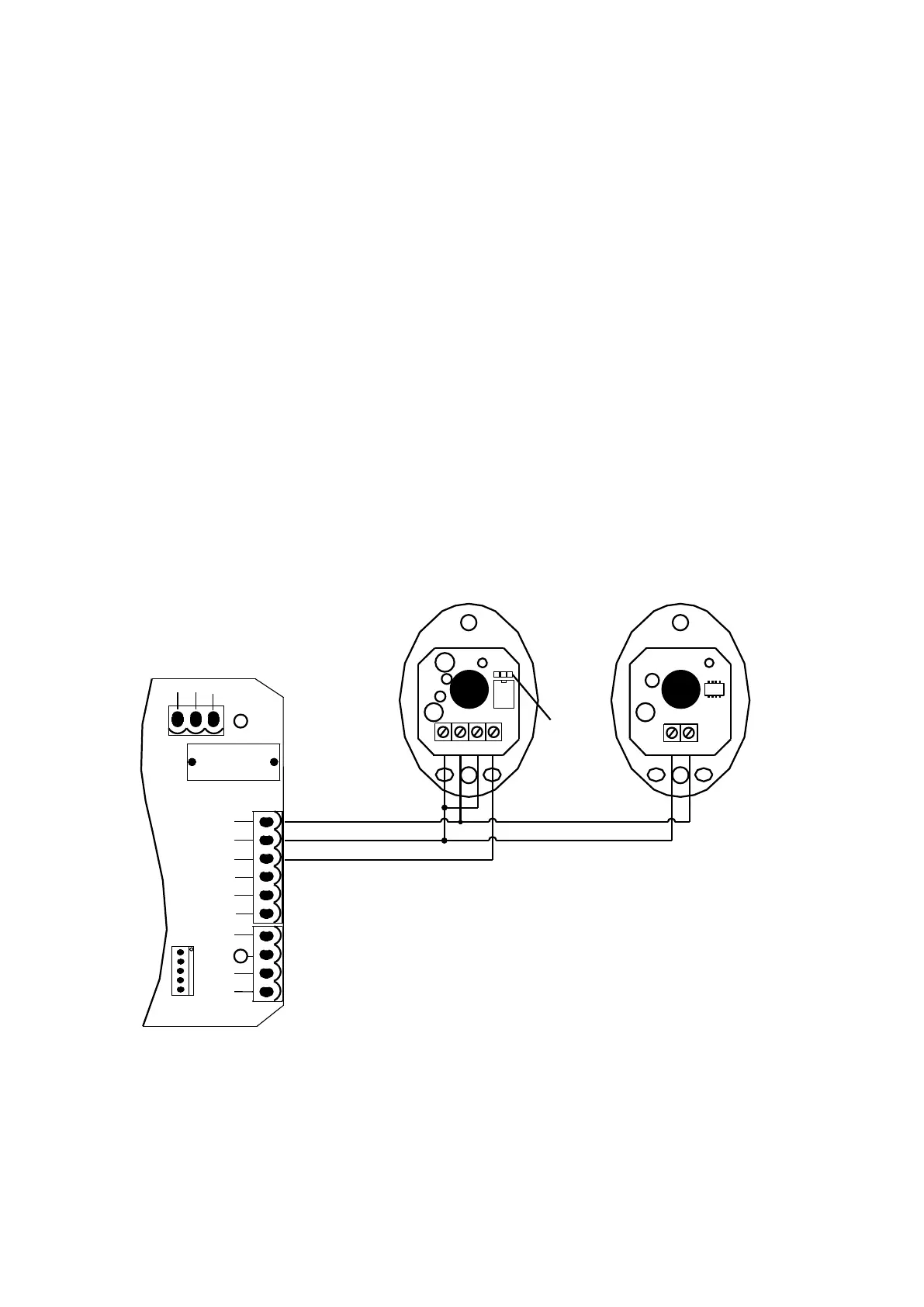

InfraredInfrared receiverreceiver connectingconnecting
－ ＋
－ ＋
X7X7
InfraredInfrared emitteremitter connectingconnecting
