Adjustment and operation
Remote control operation
When remote control is three button mode, three buttons on the remote control to control the main
engine OPEN/CLOSE/STOP separately.
When remote control is single button mode, one same button on the remote control to circularly
control the main engine OPEN/STOP/CLOSE/STOP.

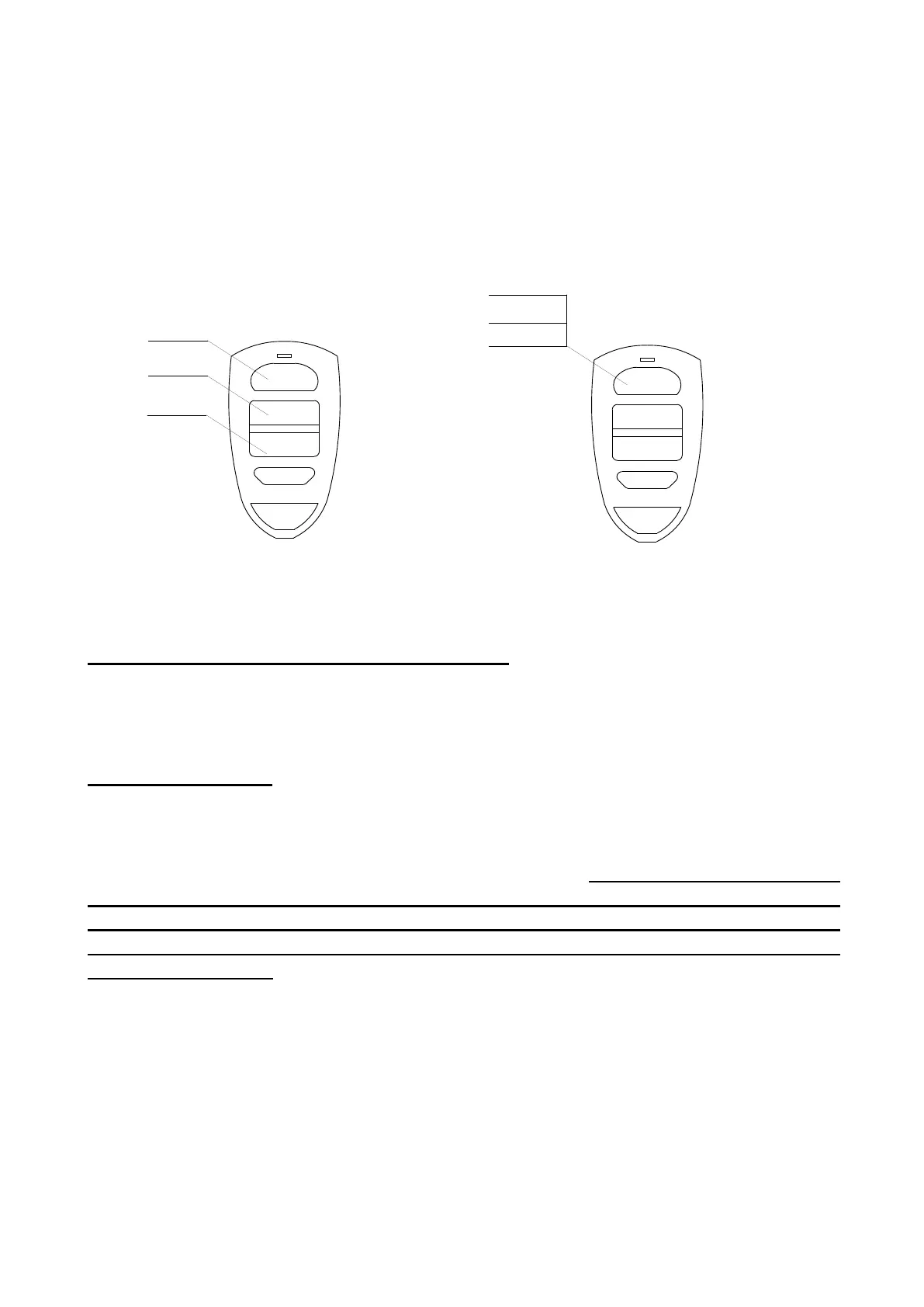

ThreeThree buttonbutton modemode remoteremote controlcontrol
SingleSingle buttonbutton modemode remoteremote controlcontrol
A
B
C
D
OPENOPEN
A
B
C
D
CLOSECLOSE
STOPSTOP
CLOSECLOSE
OPENOPEN
STOPSTOP
Figure 14
Add extra remote control (remote control learning): Remove the upper cover of main engine,
remove the upper cover of the control box, press the learning button AN1 on the control board, and
indicator light LED2 will flash once and then go out; press the same button on the remote control
twice, the LED2 flashes repeatedly and then goes out; remote control learning is succeed. At most
25 remote controls can be learned.
Delete remote control: Delete remote control that have been learned; press the learning button
AN1 and LED2 will be on; loosen the button until LED2 is off. This indicates that all remote controls
that learned previously have been deleted.
Note: To disengage gate opener, move the gate to the middle position, then close the clutch and
press the open button of external button switch to open the gate. If the gate opening direction is
wrong, can through the toggle switch SW1 on the control board or exchange the two motor
lines U and W. Please seriously observe whether the motor can stop automatically when the
gate fully opened. If the position cannot be limited correctly, please exchange limit switch
lines CLLM and OPLM.
