JRC JMA-5300MK2 - 5

JMA-5300Mk2 series
– dimensions and mass

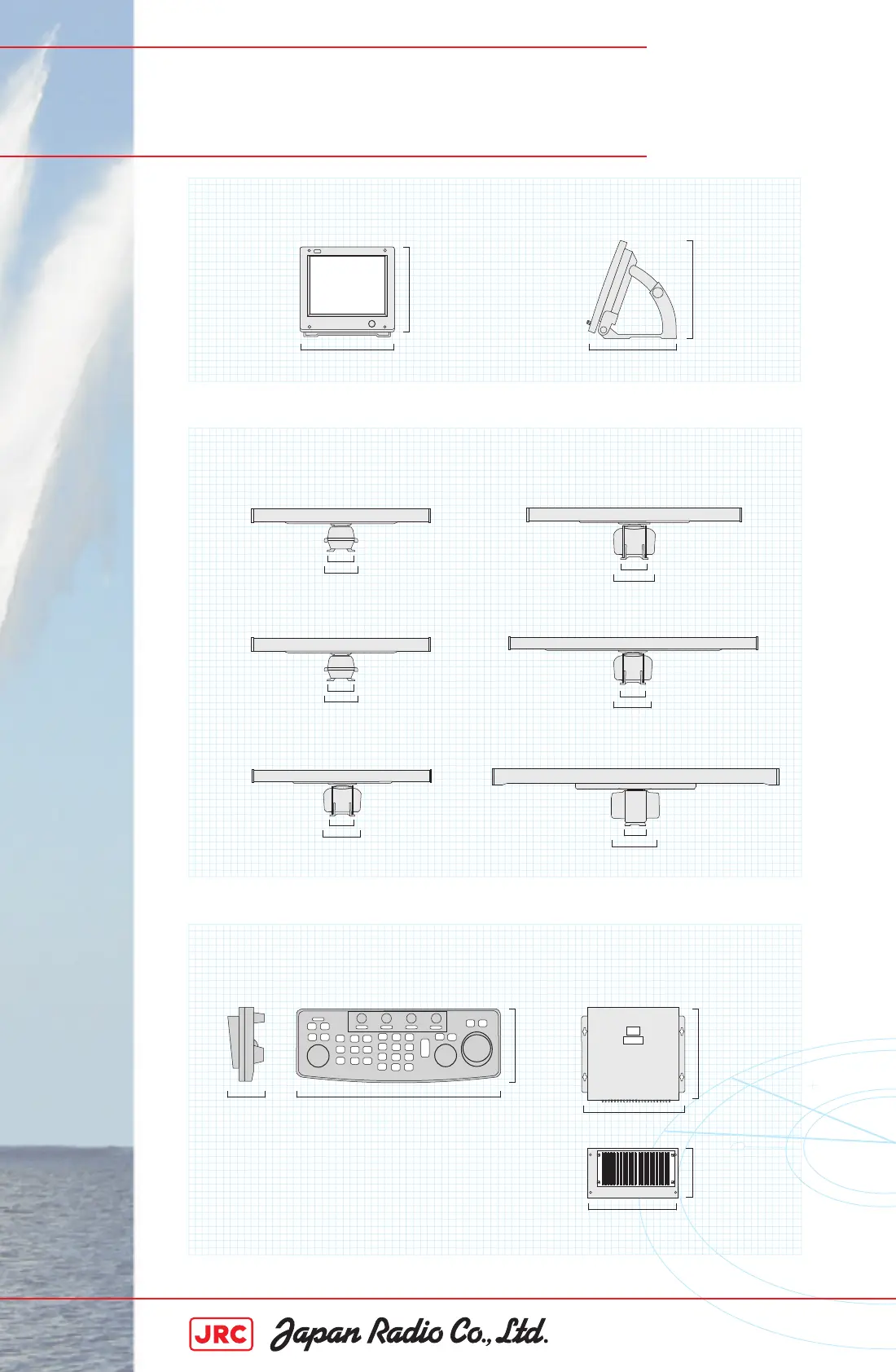

Dimension drawings - Display
Dimension drawings - Scanners
1
Dimension drawings - Keyboard, Processor
NWZ-173 Mass 12,1 kg
NKE-2103-6 Mass 40 kg
450 mm
420 mm
425 mm
NCE-5171 Mass 1,3 kg
160 mm
59 mm
132 mm
1
all scanners have a brushless motor and comply with 40dB/dec Spurious particulars
cutout for panel mount
height 319,6 mm, width 416 mm, depth 80 mm
1)
2)
391 mm
Swing circle 1910 mm
290 mm
348 mm
NKE-2103-6HS Mass 40 kg
Swing circle 1910 mm
290 mm
348 mm
NKE-2254-7 Mass 58 kg
Swing circle 2270 mm
290 mm
458 mm
NKE-2254-6HS Mass 55 kg
Swing circle 1910 mm
NKE-2254-9 Mass 60 kg
Swing circle 2825 mm
290 mm
458 mm
290 mm
458 mm
320 mm
660 mm
NKE-1130 Mass 180 kg
Swing circle 4000 mm
360 mm
NDC-1417 Mass 6 kg
305 mm
300 mm
340 mm
170 mm
cutout for panel mount height 105 mm, width 340 mm, depth 20 mm
