3.20.3 Connection to display unit
Use 14-core composite cable 2695110056 and coaxial cable RG-10/UY to connect power control unit
NQ
E-3167 to display unit NCD-4530.
Among the two cables, use coaxial cable RG-10/UY to connect the radar video signal.
3

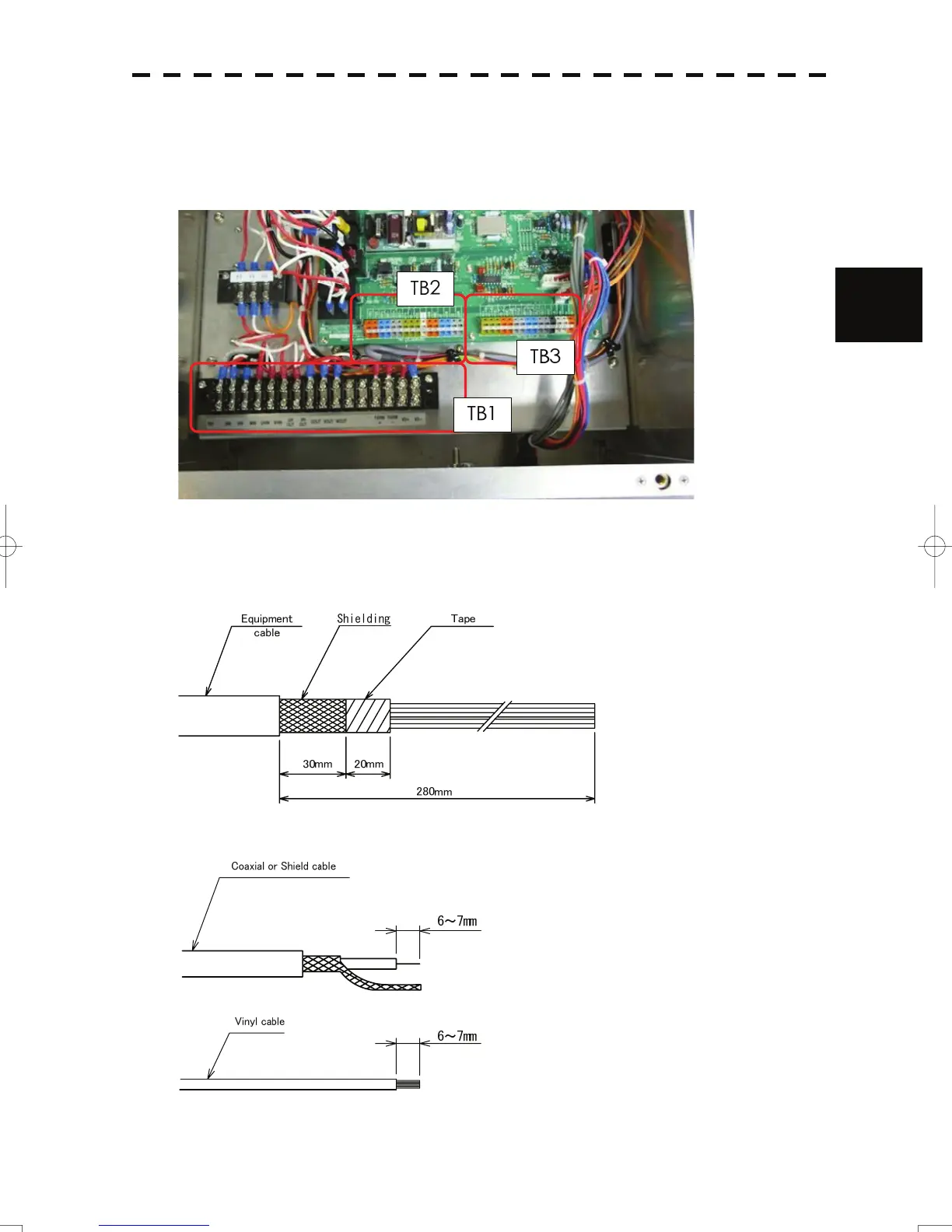

Fig.3.20.2 NQE-3167 terminal block
3.20.4 Equipment cable end processing
Fig.3.3 Equipment cable end processing
Fig.3.4 End processing of each cable core
