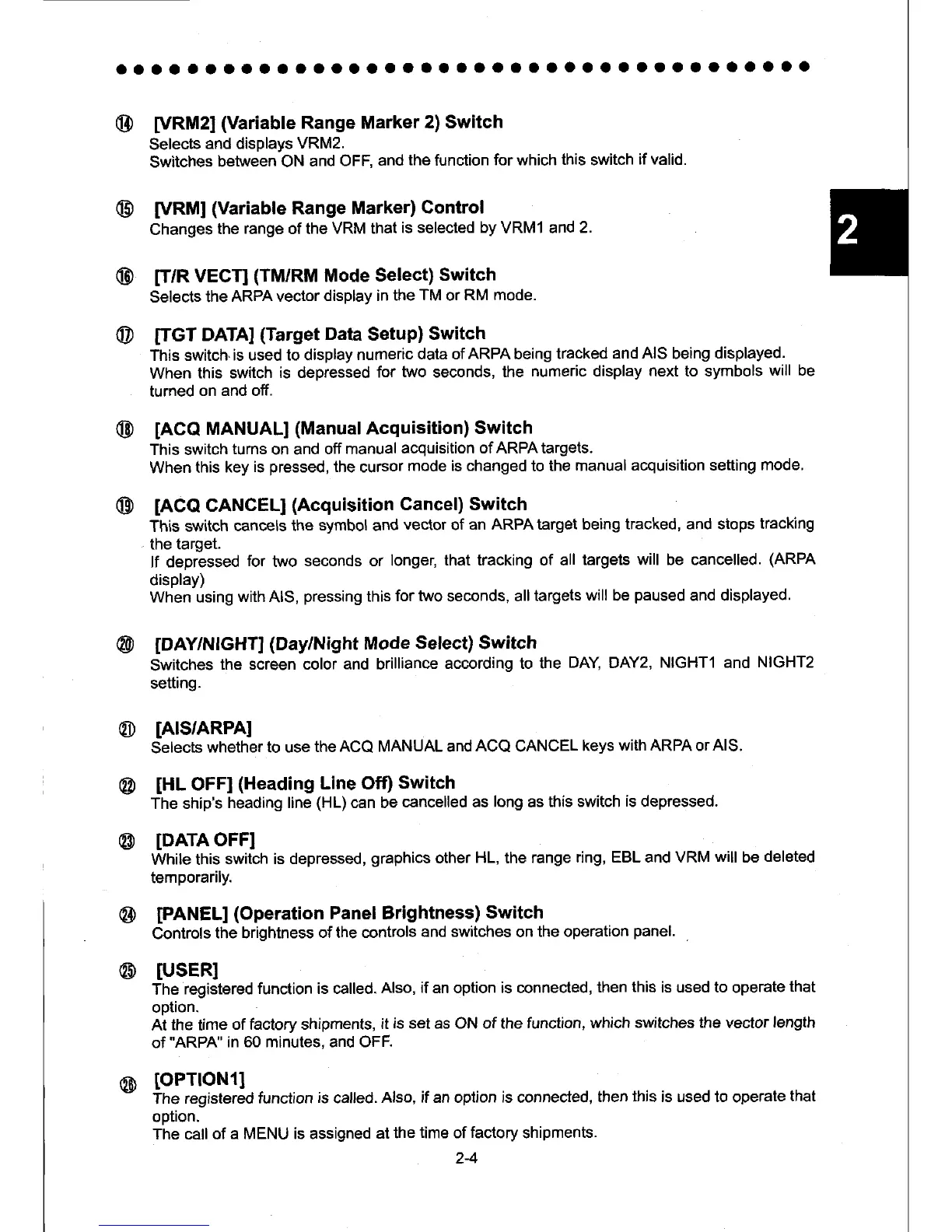

tVRMzl
(Variable Range Marker
2) Switch
Selects
and displays
VRM2.
Switches
between ON
and
OFF,
and
the
function
for which
this
switch
if valid.
@
IVRMI
(Variable
Range Marker)
Gontrol
Changes
the
range
of the
VRM that
is selected by
VRMI and
2.
filR
VECTI
(TM/RM
Mode
Select)
Switch
Selects
the
ARPAvector
display in
the
TM
or
RM mode.
IIGT
DATAI
{Target
Data
Setup)
Switch
This switch.is
used to display
numeric
data of
ARPA
being
tracked
and AIS
being
displayed.
When
this switch
is depressed
for
two
seconds,
the
numeric display next to symbols
will be
turned
on and off.
IACQ
MANUALI
(Manual
Acquisition)
Switch
This switch
turns
on and
off manual
acquisition of ARPA targets.
When
this
key
is
pressed,
the
cursor
mode is changed
to the
manual
acquisition setting
mode.
@
[ACQ
CANCEL]
(Acquisition cancel) switch
This switch
cancels the
symbol
and
vector
of an
ARPA target being
tracked, and stops
tracking
the target.
lf depressed
for
two
seconds or
longer,
that tracking of all
targets will be cancelled.
(ARPA
display)
When
using
with
AlS,
pressing
this
for two
seconds,
all targets
will be
paused
and displayed.
@
IDAY/NIGHT]
(DaylNight
Mode
Select)
Switch
Switches
the screen color and brilliance
according to the
DAY
DAY2,
NIGHTI
and
NIGHT2
setting.
lArs/ARPAI
Selects
whether to use
the
ACQ MANUAL and
ACQ
CANCEL
keys
with
ARPA orAlS.
IHL
OFFI
(Heading
Line Off)
Switch
The ship's
heading line
(HL)
can be
cancelled as
long
as
this switch
is
depressed.
@
@
@
@
@
IDATAOFFI
While this
switch
is depressed,
graphics
other
HL,
the
range
ring, EBL and VRM
temporarily.
IPANELI
(Operation
Panel Brightness)
Switch
Conirols
the brightness
of the controls
and switches
on
the operation
panel.
lusERl
The
registered
function is called.
Also,
if
an option
is
connecled,
then
this
is used to
operate
that
option.
At
the
time
of faclory shipments,
it
is set as ON of the
function, which
switches the
vector
length
of
"ARPA" in 60
minutes,
and OFF.
loPTroNll
The
registered
function
is
called.
Also,
if
an option
is
connecled,
then
this
is used to
operate
that
option.
The call of
a MENU is assigned
at
lhe
time
of
factory
shipments.
24
be
deleted
@
