Page 3

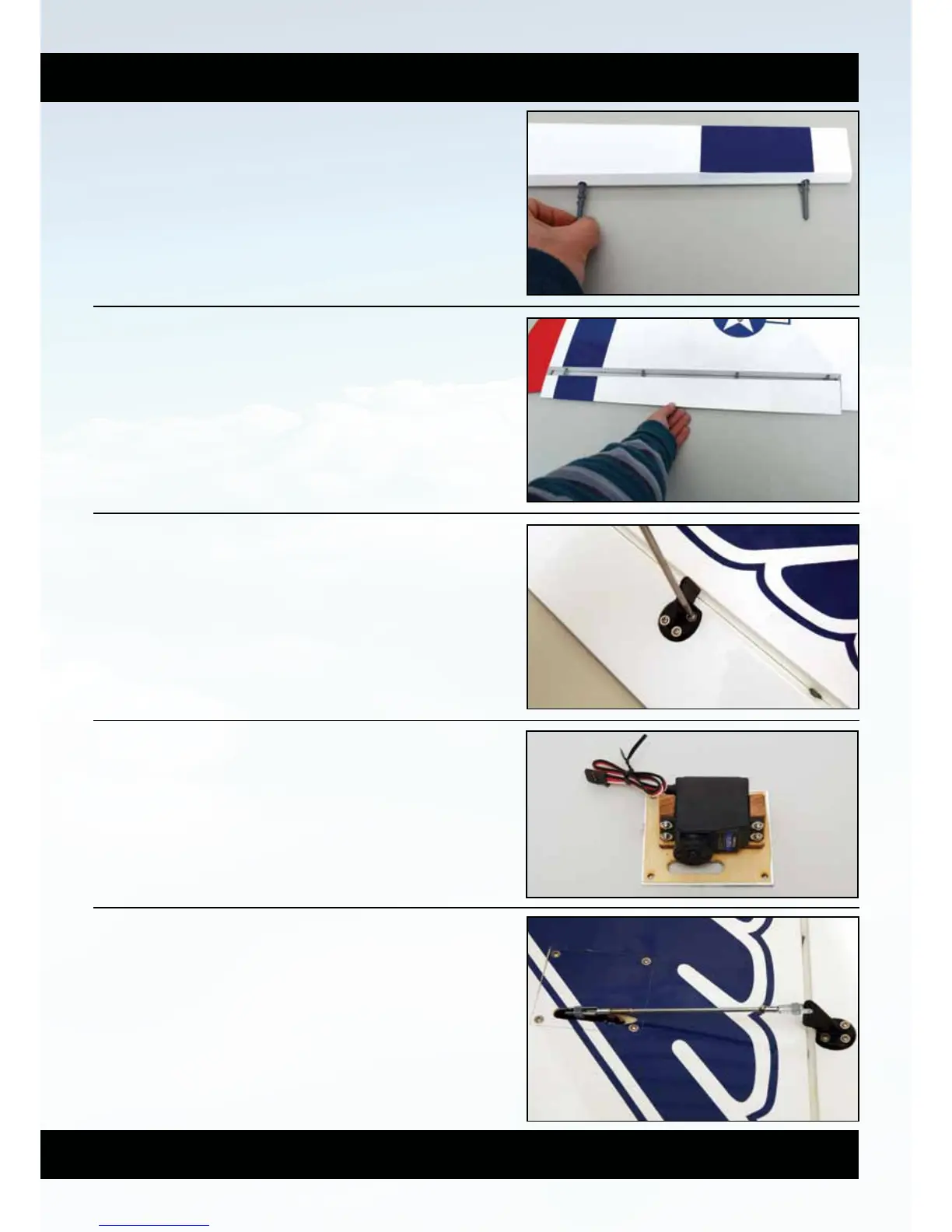

Check the fit of the aileron to the wing panel. If there
is any misalignment the holes in the trailing edge of
the wing can be slotted as required for the hinges.
Run glue into the holes in the trailing edge of the wing
panel and onto the exposed hinges, then fit the aileron
to the wing panel. Wipe away any excess glue,
some tissue or a rag can be used soaked in Cellulose
Thinners or similar to remove the glue cleanly. (Take
great care when using solvents such as these)
Attach the aileron control horn being careful to
position over the hardpoint under the film to give a
secure mounting point.
Install one of the aileron servos to the mounting plate
as shown, then fit a suitable extension lead, long
enough to reach the wing root. Secure the leads
together using a short section of heatshrink, tape or a
lead lock.
Use the pre-installed cord in the wing panel to pull
the servo extension lead though the wing panel, then
screw the aileron mounting plate into place as shown.
Make up the aileron pushrod and fit this, ensuring
that keepers are fitted for security. The slot in the plate
should be trimmed as required to allow free movement
of the servo arm and pushrod. Repeat entire assembly
procedure for the second wing.
Step 1
Step 2
Step 3
Step 4
Step 5
