Page 4

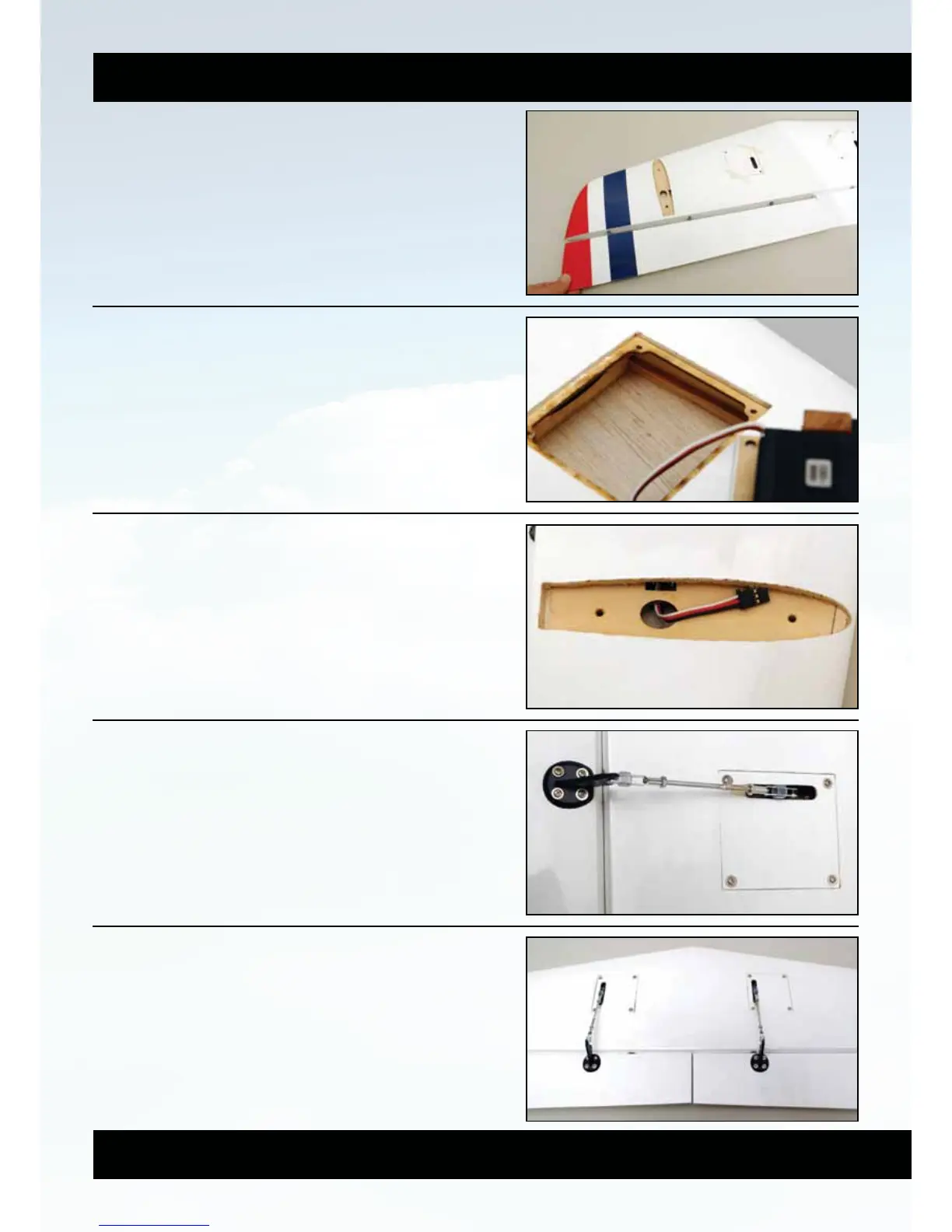

Hinge the elevator to the tailplane in the same way as
the ailerons were fitted to the wing panels.
Install the first elevator servo onto the mounting plate
in the same way as was done with the aileron servo,
then feed the servo lead through the servo lead tube
built-in to the tailplane.
Make sure that the servo lead is fed out through the
circular hole in the ply plate as shown, then tape the
lead in place until the tailplane is to be fitted to the
tailbooms.
Screw the servo mounting plate into place, fit the
elevator control horn and make up and fit the pushrod
as shown, fitting keepers to the clevises for security.
The slot in the hatch should be trimmed as required to
allow free movement of the servo arm and pushrod.
Repeat the assembly procedure for the second
elevator servo - note that as the servos are fitting in the
same orientation as each other there is no requirement
for one of the servos to be reversed, allowing a single
receiver channel to be used.
Step 6
Step 7
Step 8
Step 9
Step 10
