Page 5

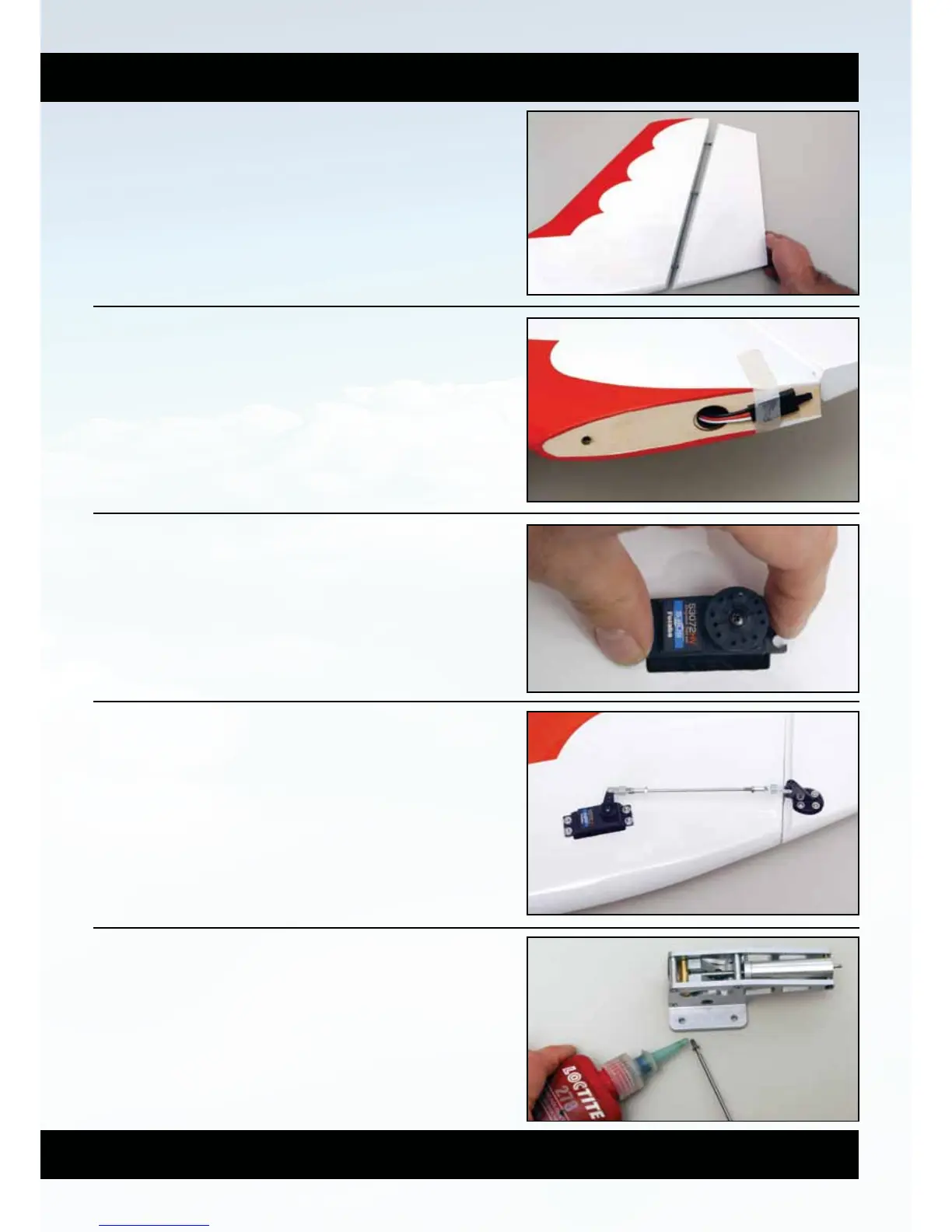

Fit the rudders to the tail booms, installing the
hinges in a similar manner to that illustrated for
the elevator, note that the rudders are handed
and have hard points for the control horns on
the inboard sides, and the rudder servos are
consequently fitted on the inboard sides of the
booms
Run extension leads through both of the tail booms
for the elevator and rudder servos.
Install the rudder servos as shown, with the output
arm towards the rear of the boom.
Attach the control horn to the rudder and make up the
rudder pushrod in the same way as the elevator
previously, making sure that keepers are
fitted to the clevises for security. Note the angle of
the servo arm at neutral, this is to match the angle of
the leading edge of the rudder, so as to obtain equal
movement in both directions. Repeat for the second
tail boom.
Before you install the retracts we advise you remove
the screws and re-install them using locktite. You can
do this one at a time so you don’t need to disassemble
the retract. Continue this process with the oleo legs
and the wheel hubs.
Step 11
Step 12
Step 13
Step 14
Step 15
To Next Page
