When using the MKS-L Applicator for SPC or
PSL splices

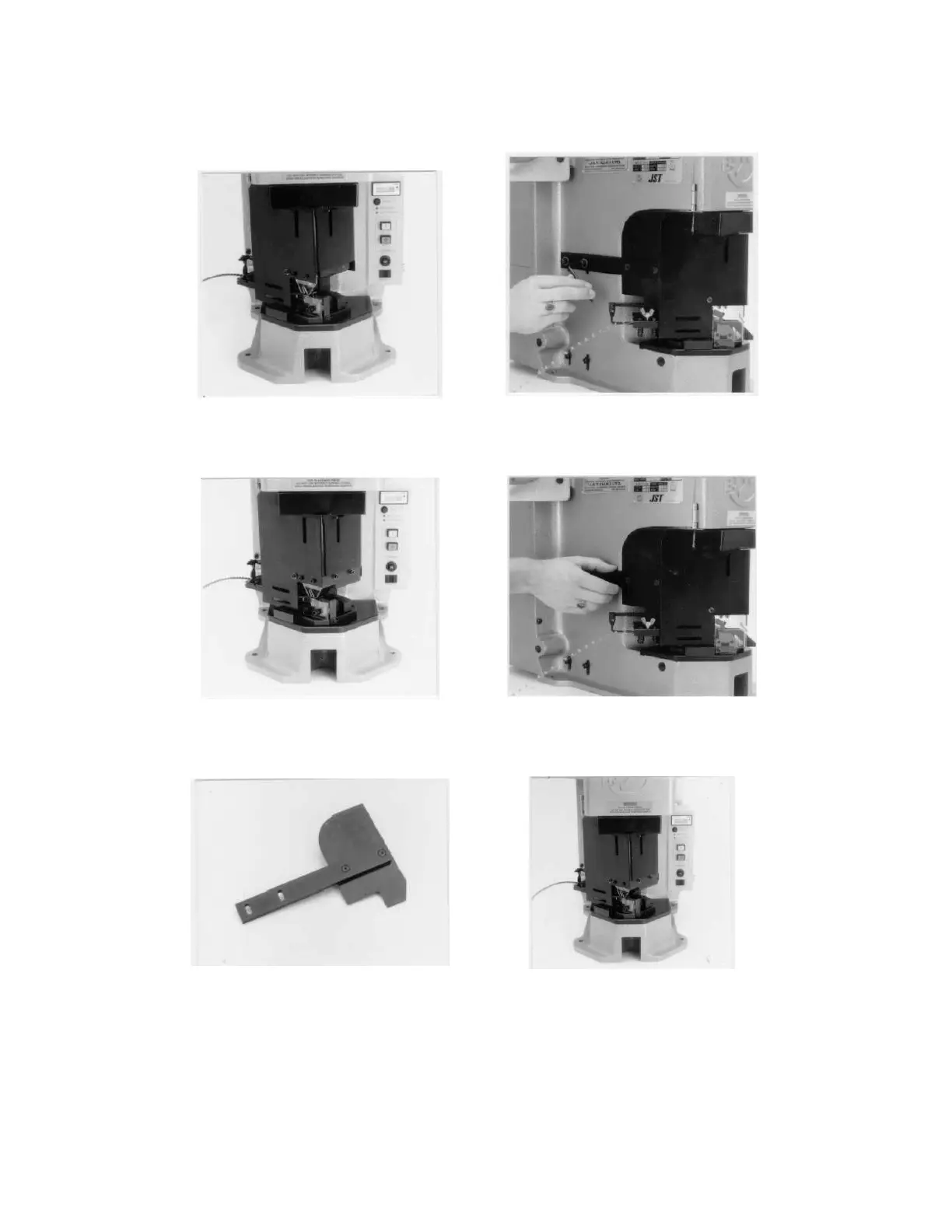

Step 1
Secure the fabricated steel guard (JST UK-17), to the
applicator using the cap head screws supplied.
Step 2
Secure the fabricated steel guard (JST UK-135), onto the
side face of the applicator using the cap head screws
supplied.
Step 3
Select the appropriate side guard (JST UK-3), and mount
onto the side guard support bracket (JST UK-9), using
the countersunk screws supplied..
Step 4
Remove the two upper motor fixing screws and clamp
the side guard support bracket onto the press utilizing
these screws.
Step 5
Adjust the side guard support bracket to achieve the best
relationship between guard and applicator.
Step 6
Tighten the screws and check that the guards are
correctly and securely fitted.
