The T60 Matrix Lamp is a hybrid searchlight designed for use with DJI Matrice 30 series aircraft, offering advanced illumination capabilities for various applications. This user manual provides comprehensive information on its features, installation, operation, and maintenance.

Function Description

The T60 Matrix Lamp is equipped with two sets of optical lenses, enabling it to project a 16° uniform light column. This design allows for an illumination distance exceeding 150m and a search area greater than 150 m² when operating at a height of 50m. It is adapted to a standard quick-release bracket, facilitating easy installation and removal.

A key feature of the T60 is its controllable gimbal, which supports pan and tilt linkage with the gimbal camera. This integration allows for precise aiming and coordination with the aircraft's visual systems. The lamp supports control via DJI Pilot, offering brightness adjustment, strong light flash, and other operational modes to suit different mission requirements.

The device incorporates a high-efficiency cooling fan to manage the lamp's temperature during operation, ensuring stable performance and extending its service life. It provides long-distance illumination and search capabilities, making it suitable for tasks such such as surveillance, search and rescue, and inspection.

Important Technical Specifications

Product Name: T60
Interface: DJI SDK Port
Dimensions: 91.4x 88.5x 62.2mm
IP Rating: IP4X
Weight: 190g
Supported Aircraft: Matrice30
Max Power: 60W
Lighting Mode: Hybrid Zoom
FOV (Field of View): 16°
Lighting Height and Area:
- 50m height: 150m² area
- 100m height: 620m² area
- 150m height: 1400 m² area
Center Illuminance:
- 46Lux at 50m height
- 13Lux at 100m height
- 7Lux at 150m height
Gimbal Control Range: 0 to -85° controllable
Installation: Quick-release Bracket
Operating Temperature: -10°C to 50°C
Storage Temperature: -20°C to 60°C

Usage Features

The T60 Matrix Lamp is designed for seamless integration and user-friendly operation with DJI Matrice 30 series aircraft.

Installation and Preparation:
- Ensure the aircraft firmware is updated to the latest version.
- Before operation, turn on the remote controller first, then the aircraft.
- Mounting involves sliding the T60's stand into the aircraft's quick-release bracket until a "click" is heard, ensuring it is locked.
- Connect the payload cable to the aircraft's SDK interface.
- All mounting operations should be performed while the aircraft is shut down.
DJI PILOT Controls:
- After turning on the aircraft, remote controller, and ground mobile equipment, the DJI PILOT app will recognize the payload as JZ_T60.
- Gimbal Control: The remote controller features two dials for gimbal manipulation:
  - Dial 1 controls the tilt angle of the gimbal.
  - Dial 2 controls the pan tilt angle.
- Function Lists in DJI PILOT: The app provides various controls and settings:
  - Gimbal Adjustment: Allows for fine-tuning of the gimbal's position.
  - Light Adjustment: Controls the illumination settings.
  - Real Time Data: Displays operational data such as drive temperature and core temperature.
  - Switch of Pitching with Gimbal Camera: Enables synchronized pitching movements with the aircraft's main camera.
  - Brightness Adjustment: Allows users to modify the light intensity.
  - Flash Control: Activates or deactivates the strong light flash mode.

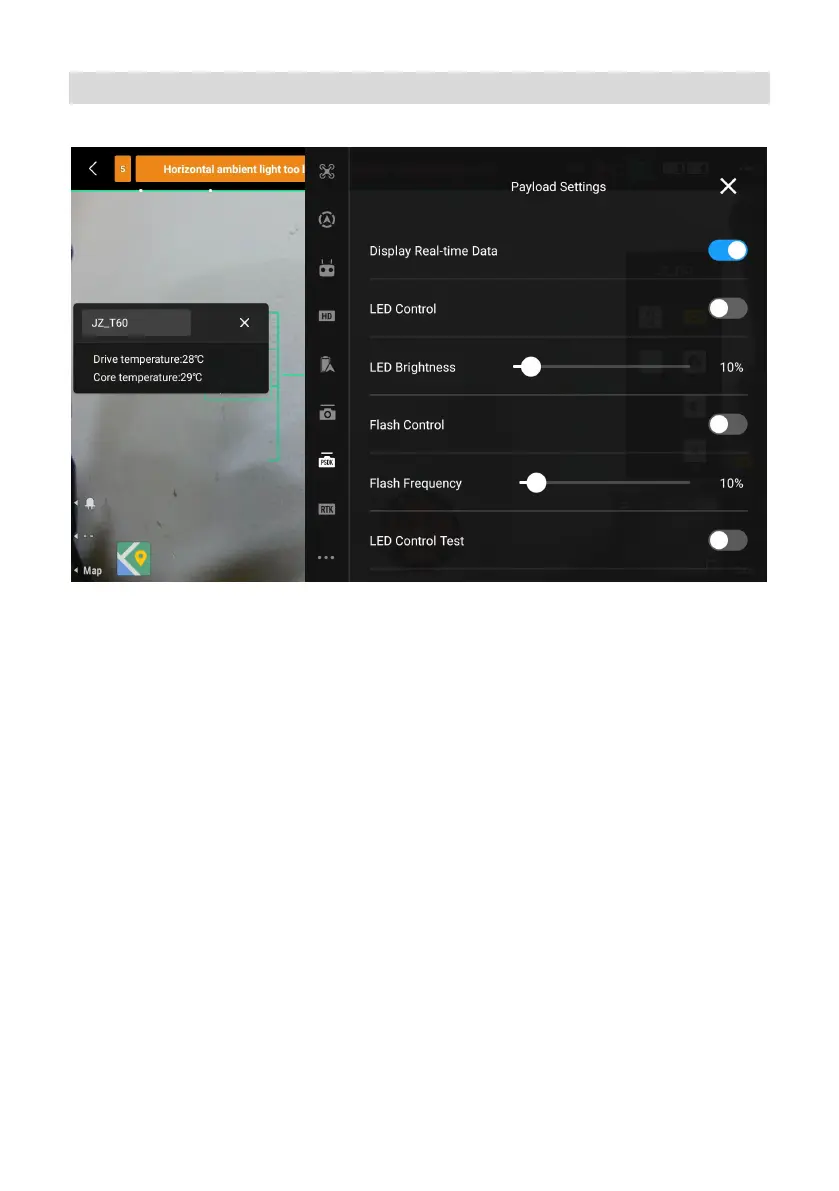

- Function Settings in DJI PILOT:
  - Display Real-time Data: Toggles the display of operational metrics.
  - LED Control: Turns the light on or off.
  - LED Brightness: Adjusts the brightness level, typically from 0% to 100%.
  - Flash Control: Turns the flash function on or off.
  - Flash Frequency: Adjusts the frequency of the flash.
  - LED Control Test: Provides options for testing individual light functions.
Safety Precautions:
- Avoid looking directly into the spotlight due to laser radiation (Class IIIR Laser Product).
- Do not cover or deform the rear cover heatsink.
- Do not interfere with the gimbal's stability or calibration.
- Avoid touching the lamp head's main body with bare hands.
- Minimize prolonged use in extreme environments to extend equipment life.
- Be aware that this is a high power-consumption device and generates heat during use.
- After use, store the device in its special safety box to prevent damage.
- The international version of the product has locked GPS and cannot be used in China (including Chinese Mainland, Hainan Island, Hong Kong, Macao, and Taiwan).

Maintenance Features

Proper maintenance ensures the longevity and optimal performance of the T60 Matrix Lamp.

Cleaning: When cleaning the lamp's surface, use a soft cleaning cloth to avoid scratches or damage.
Firmware Upgrade:
- The T60 supports online upgrades when connected to an M30 aircraft.
- Download the DJI Assistant 2 app on your computer and connect the M30 to the computer.
- Select the desired firmware for upgrade and wait for the process to complete.
Important Considerations:
- During installation, ensure the gimbal is placed in the correct orientation before connecting.
- If DJI Pilot occasionally displays issues, restarting the software may resolve them.
- Slight gimbal swing is normal and should return to normal after power-on or attitude synchronization.
- If the gimbal exhibits high-frequency noise and vibration while becoming very hot, discontinue use immediately and contact after-sales support for repair.
