15
MINIATURE MUSIC INSTRUMENT WIRELESS SYSTEM

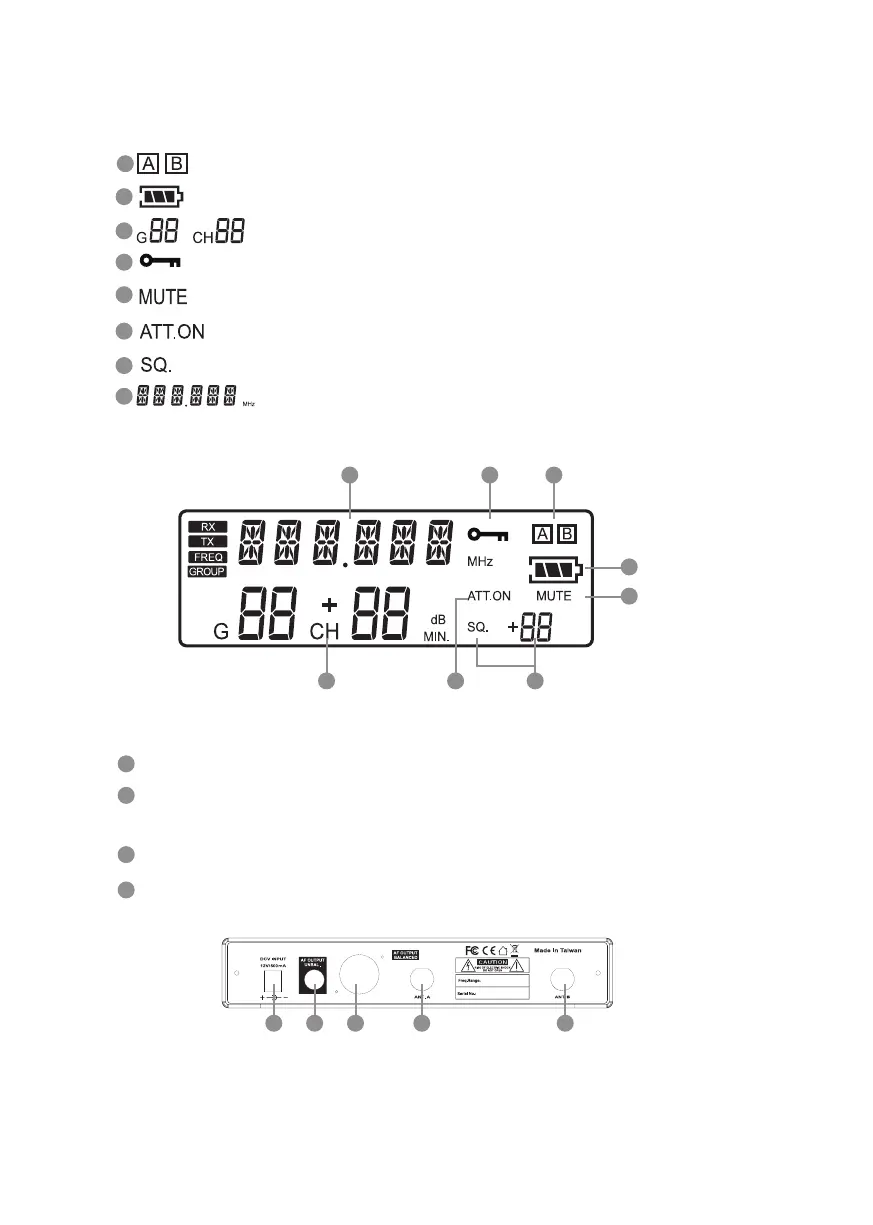

Rear panel
DC power socket: for 12~15V DC / 500mA power supply
Female BNC antenna port:
the 50Ω BNC antenna is connected here. It also
provides a booster power of 12~15 DC / 100mA for an external antenna booster.
6.3mm phone jack: unbalanced audio output jack
3P XLR male: balanced audio output jack
23
21
12
22
22 21 212320
15
16
18
14
17
13
:Antenna A/B
:Transmitter battery level
:Group/channel
:Key Lock
:Receiver mute
:Output attenuation
: Squelch level
:Frequency
In the non-setting mode, the LCD looks like :
19
20
/
13
16
1814
17
19 15 12
