22 JUDO QUICKSOFT-UNO
Data Sheet

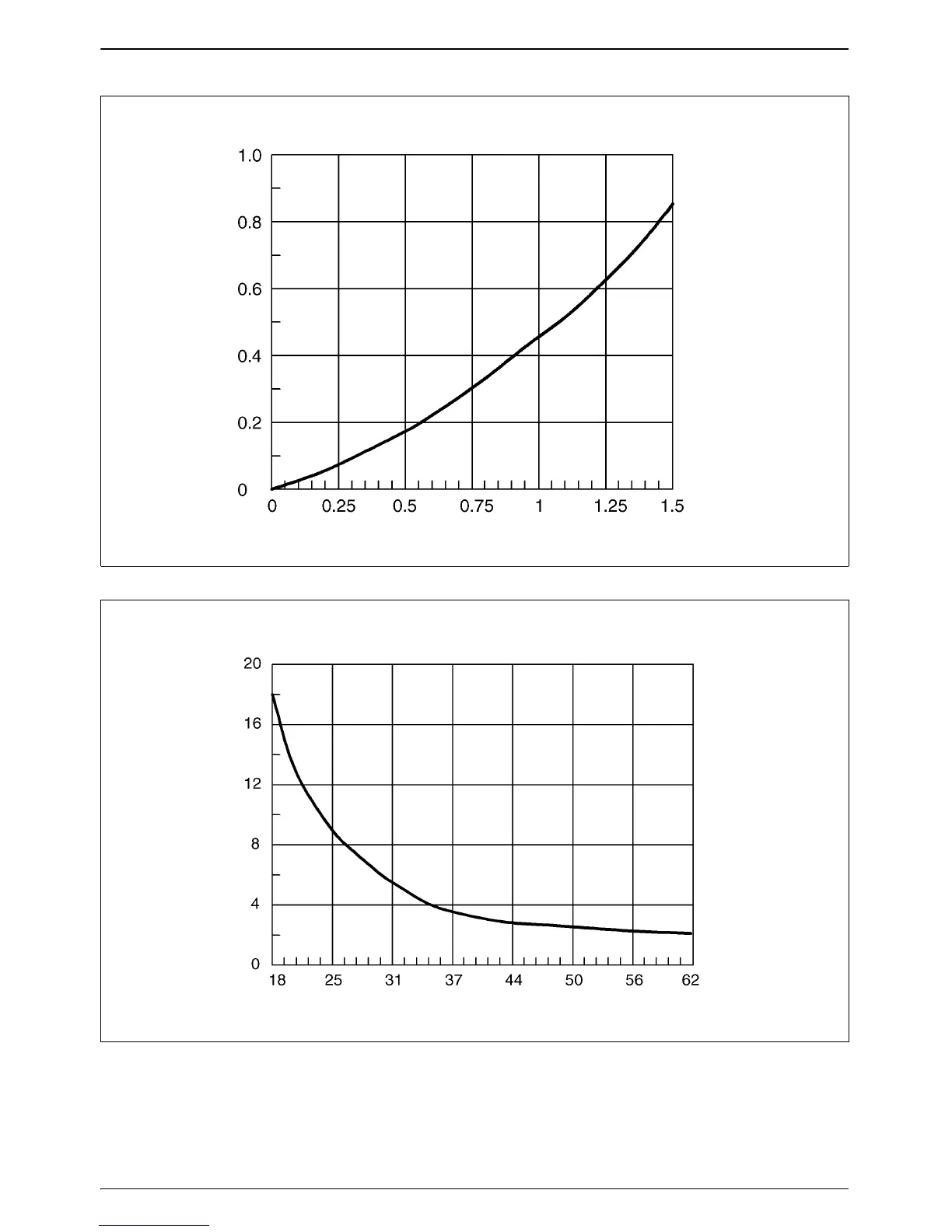

9.3 Diagrams
Pressure loss in normal operating position (Pos. 1) with a raw water hardness of 25 °e and
a mixed water hardness of 10 °e depending on the volumetric flow rate.
Fig. 12: Pressure loss in normal operating position
Max. possible quantity drawn off daily depending on the raw water hardness and a mixed
water hardness of approx. 10 °e.
Fig. 13: Amount drawn off daily
Pressure loss [bar]
Volumetric flow rate [m³/h]
Max. quantity drawn off daily [m³]
Raw water hardness [°e]
