24 JUDO QUICKSOFT-UNO
Data Sheet
9.4 Installed dimensions
9.5 Scope of supply
– Softener (
control unit
)
– Salt container
– Accessories bag
– Installation and Operating Instructions
– Built-in rotary flange
JQE 1" with threaded fitting
– Backup overflow hose
– Wall support
9.6 Accessories
– Bypass valve JQX, Order No. 873 5210
– Hardness measuring equipment JGHP
0-37.5°e, Order No. 874 2119 (is availa-
ble free of charge if you return the reply
postcard),
– Extension quick set JQR for series con-
nection of two JUDO units (e.g. filter and
Softener) to a pipe connection,
Order No. 825 0041
– Wall bracket for salt container
Order No. 873 3066
9.6.1 Protective measures against
corrosion
If water has a water hardness of 0°e plastic
pipes or corrosion resistant pipes should be
laid. In the case of water with partial soften-
ing (approx. 10°e), zinced pipes and copper
pipes can be laid.
Our recommendation:
Install a JUDO JULiA metering pump in the
mixed water pipe downstream of the Soften-
er, in order to proportionately enrich the wa-
ter with a JUL mineral solution.
The JUL mineral solutions contain active
components, which stabilise the residual
carbonate constituents and create the pre-
requisites for developing a homogeneous
protective layer in downstream pipe sys-
tems. These active components correspond
to the prescribed type, quality and quantity
of the Drinking Water Treatment Regula-
tions.

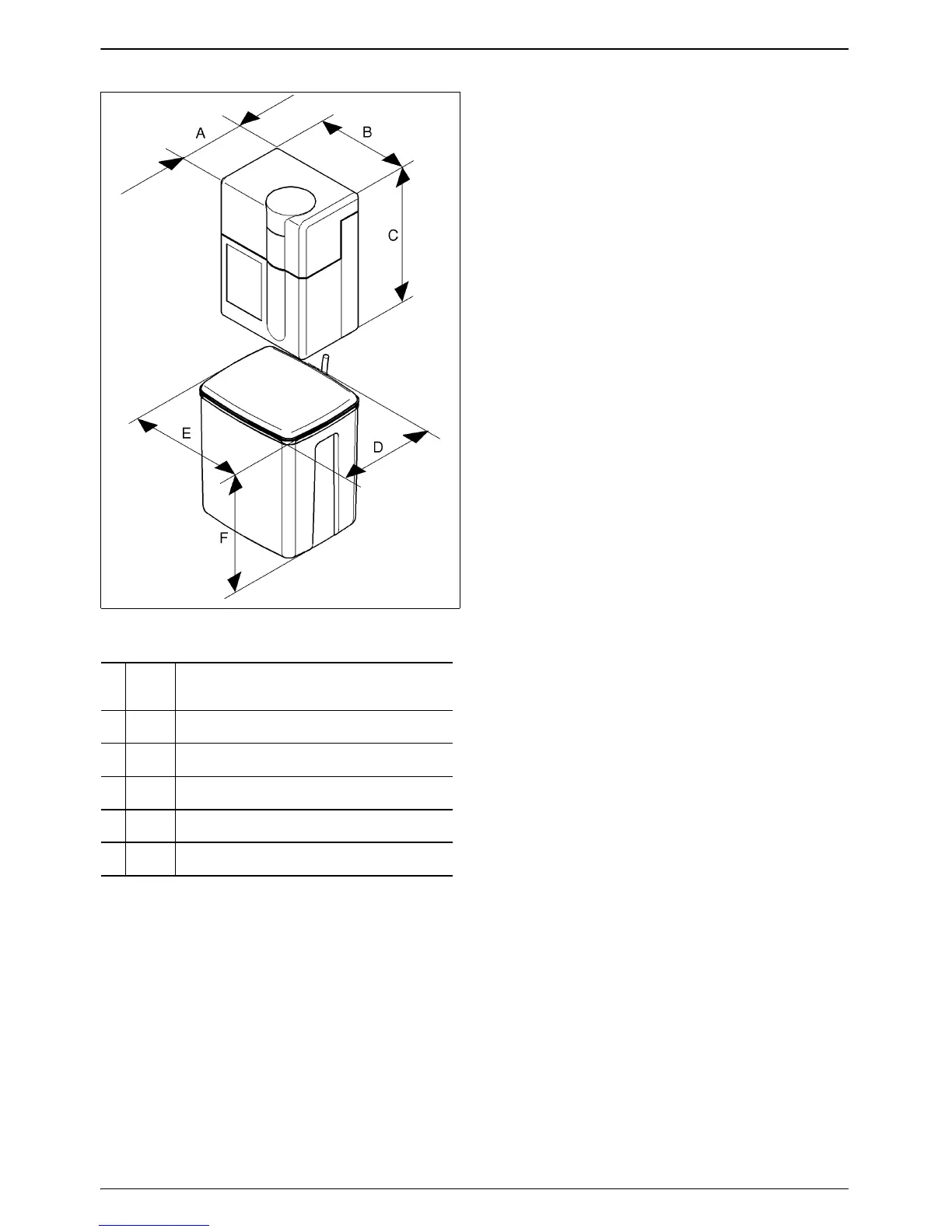

Fig. 16: Installed dimensions
All dimensions in [mm](see Fig. 16)
A 247
Installed depth without bypass
valve
B 340 Width of the control unit
C 490 Height of the control unit
D 360 Depth of the salt container
E 390 Width of the salt container
F 465 Height of the salt container
