JUGS Jr. User Manual

There are two ways to install the curved legs; the low profile position or the high
profile position.
Low Profile Position:
Install the three legs with the curved part closer to the base (see Figure 8).
Use this position for softball or field hockey.
High Profile Position:
Install the three legs with the curved part closer to the ground (see Figure 9).
Use this position for softball drop pitches.
NOTE: When using JUGS indoors, be sure the
white rubber leg caps are on the legs.
3. Re-connecting the “Top” of JUGS onto the Base Assembly:
a. Loosen the horizontal T-clamp.
b. Place the “top” of JUGS onto the shaft of the base assembly. (see Figure
10).
c. Turn the “top” of JUGS so the horizontal T-clamp is lined up directly
OVER the red dot at the base.
d. Hand tighten the horizontal T-clamp.
IMPORTANT:
The horizontal T-clamp will fit snugly into the indentation in the shaft only if
you have the horizontal T-clamp lined up directly over the RED DOT. This is
important for maximum accuracy.
Assembly
15

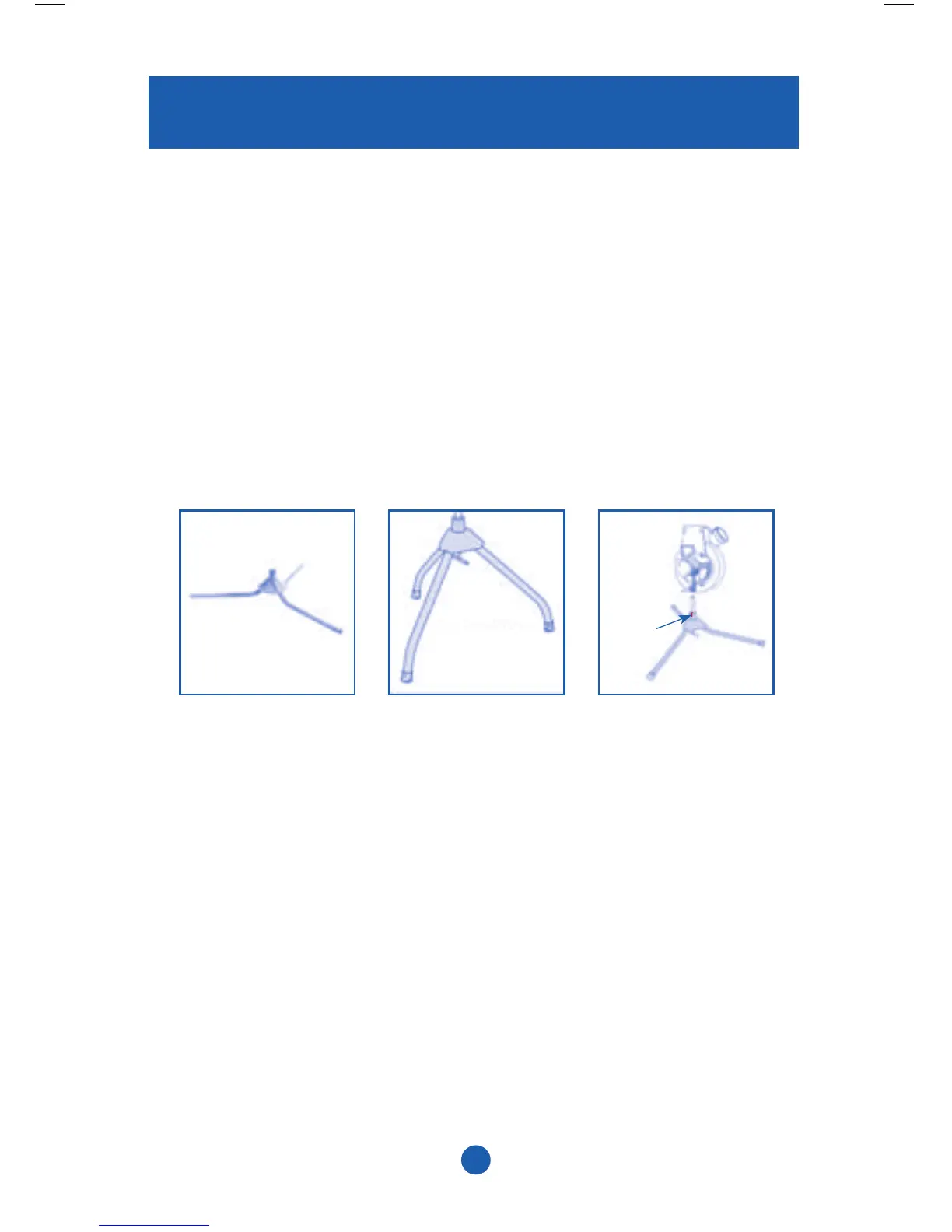

Figure 8 Figure 9 Figure 10
High Profile
Base Assembly
Low Profile
Base Assembly
Red Dot
