40
−

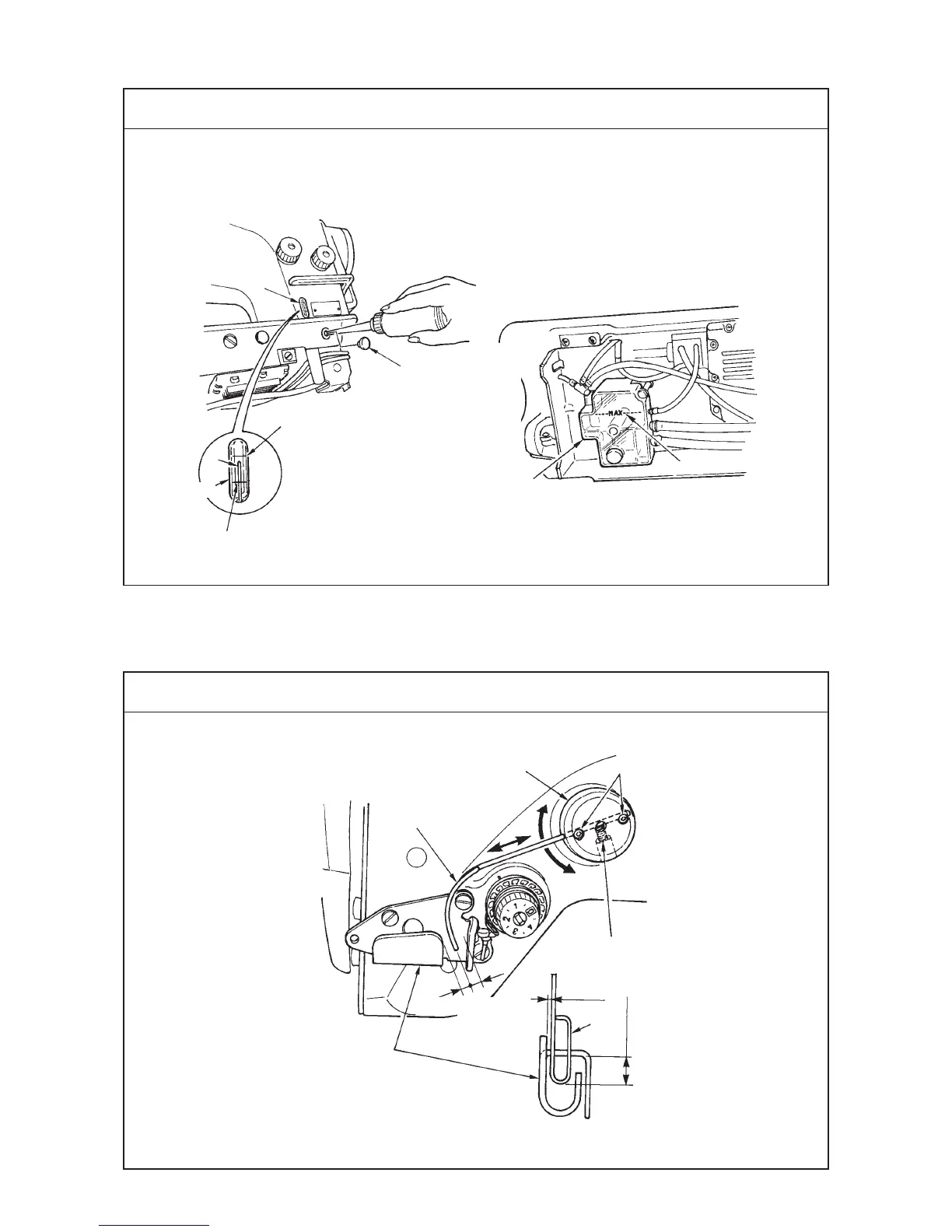

(33) Adjusting the lubrication mechanism
Standard Adjustment
(34) Adjusting the position of the thread draw-out wire
Standard Adjustment
™
Forced lubrication is performed to the hook by means of the plunger pump placed in the hook shaft
front bushing in the machine head
Upper marker line
Lower marker line
Marker line
A
B
A
≒
B
0.5 to 1
mm
8 to 12
mm
4
2
3
1
1
2
3
4
5
1
3
40
42
Table of Contents
1 Specifications
2
Specifications of the Machine Head
2
Stitch Pattern Table
3
Cautions in Operation
4
2 Name of each Component
5
3 Standard Adjustment
7
Height and Inclination of the Feed Dog
7
Adjusting the Feed Timing
7
Adjusting the Feed Amount
9
Position of the Feed Dog
9
Adjusting the Slippage of Materials (for LZ-2290SU and LZ-2290DU)
11
Adjusting the Origin of the Needle Rocking Motor
13
Adjusting the Needle Entry Position (in Terms of Needle Rocking Direction)
15
Adjusting the Longitudinal Play at the Needle Bar
15
Adjusting the Needle Entry Position (in Terms of Longitudinal Direction)
15
Position of the Needle Bar Connection Guide
17
Height of the Needle Bar
17
Adjusting the Needle-To-Hook Timing and the Needle Guard
19
Position of the Bobbin Case Stopper
21
Orientation of the Needle Bar Thread Holder
21
Auxiliary Thread Take-Up Lever
23
Position of the Thread Tension
25
Position of the Pre-Tension
25
Position of the Thread Take-Up Spring Guard
27
Installing the Thread Take-Up Thread Guide B
27
Installing the Thread Take-Up
27
Installation of the Presser Foot
29
Installing and Adjusting the Bobbin Winder Unit
29
Adjusting the Amount of Oil in the Hook (LZ-2290SS/-7, LZ-2290SU/-7)
31
Adjusting the Thread Trimming Unit
31
Initial Position of the Moving Knife
33
Timing of the Thread Trimming Cam
33
Installing/Removing the Knife Unit
35
Stop Position of the Needle after Thread Trimming
35
Clearance Provided between the Main Shaft Handwheel and the Stator
35
Position of the Automatic Reverse Stitching Magnet
37
Adjusting the Thread Tension Releasing Solenoid
37
Adjusting the Stitch Length Dial
39
Adjusting the Lubrication Mechanism
41
Adjusting the Position of the Thread Draw-Out Wire
41
Adjusting the Stroke of the Thread Draw-Out Wire
43
Installing the Wiper Base
43
Adjusting the Wiper Solenoid
45
Position of the Wiper
45
Applying the Exclusive Grease
47
4 Procedures of Disassembing/Assembling and Cautions
49
Adjusting and Assembling of the Gear Box (Large)
49
Replacing the Motor
51
Replacing the Timing Belt
53
Removing/Installing the Gear Box Cover
53
5 Screws for Attachments
55
6 Spare Parts
55
7 Troubles and Corrective Measures (with Regard to Lubrication)
56
8 Troubles and Corrective Measures (with Regard to Sewing)
58
9 Troubles and Corrective Measures (with Regard to Mechanical Components)
62
10 For General Export
66
11 Setting for Functions
66
Names and Functions of the Respective Sections of the Electrical Box (SC-905)
66
How to Change over to the Function Setting Mode
66
12 Function Setting List
68
13 Detailed Explanation of Selection of Functions
72
14 External Output/Input Connectors
74
Connector Connection Diagram
74
15 Function Setting of the Operation Panel
75
Initializing the Panel Data
75
Setting of the Key Lock
76
16 Error Code List
77
PSC Box
77
Operation Panel Error
78
Way of Referring to the Error History
80
17 Optional Code
80
Relay Cord a Asm. for Standing Machine (Part No. M9701351AA0)
80
Relay Cord a Asm. for DC24V (Part No. M9703351AA0)
81
18 Block Diagram
82
Custom Pattern Needle Entry Position Data Sheet
84
19 Drawing of Table
86
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the JUKI CP-760 and is the answer not in the manual?
Ask a question
