4) Step on the pedal
toward
rear and
verify
the tlircad
trimming
operation.
5)
Re-adjusting
the
low-speed
switch
and
verifying
the
correct
working
of the
safety
device.
Step
on the
pedal
toward
rear
(the
thread
trimming
switch
will
start)
and
if
you
hear
the
sound
of the
magnet
working
from
under
the
bed,
immediately
step
on the
pedal
tov/ard
front.
If these
movements
are repeated over and over
again,
invariably there
will
be a position
where
the
pedal
will
not
move
toward
front
any
more.
At
this
position,
the
machine
will
be
stopping
but
if the
machine
should
move
for
low-speed
sewing,
re-adjust
the
low-speed
sewing
switch
to stop the
machine
at
this
position.
6) Insert
the
needle
and
start
sewing.
Note:
*"Front"
means
away
from
the
operator
*"Rear"
means
toward
the
operator

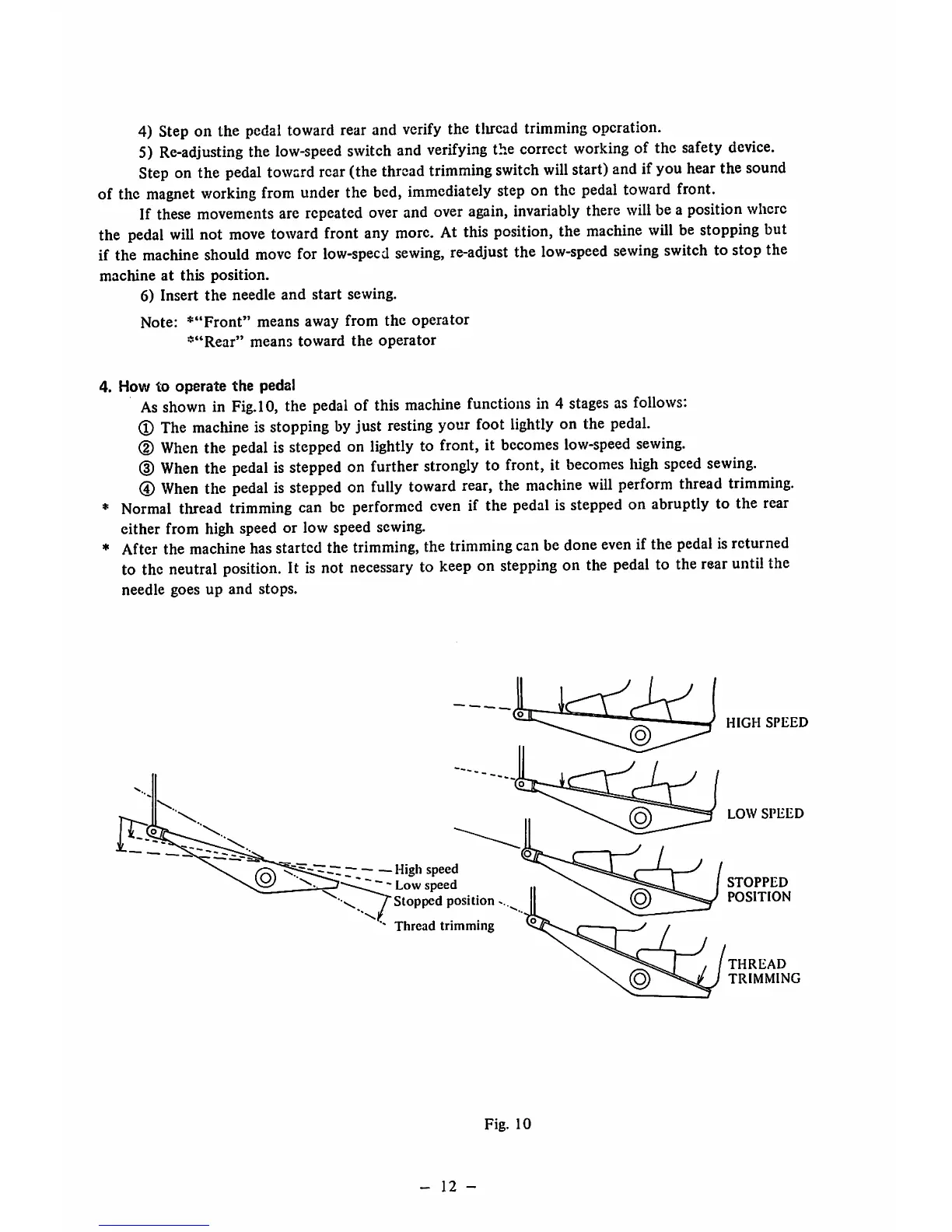

4. How
to
operate
the
pedal
As
shown
in
Fig.
10, the
pedal
of this
machine
functions in 4
stages
as
follows:
CD
The
machine
is
stopping
byjust
resting
your foot
lightly
on the
pedal.
(D
When
the
pedal
is
stepped
on
lightly
to front, it
becomes
low-speed
sewing.
(D
When
the
pedal
is
stepped
on
further
strongly
to
front,
it
becomes
high
speed
sewing.
@
When
the
pedal
is
stepped
on
fully
toward
rear,
the
machine
will
perform
thread
trimming.
*
Normal
thread
trimming
can be
performed
even
if the pedalis stepped on abruptly to the rear
either from high speed or low speed sewing.
* After the
machine
hasstarted the
trimming,
the
trimming
canbe done
even
if the
pedal
isreturned
to the
neutral
position.
It
is
not
necessary
to
keep
on
stepping
on
the
pedal
to the
rear
until
the
needle
goes
up
and
stops.
High speed
Low
speed
Stopped position
"
Thread
trimming
Fig.
10
-
12
-
HIGH
SPEED
LOW
SPEED
STOPPED
POSITION
THREAD
TRIMMING
