JUKI DDL-555-2 - Page 38

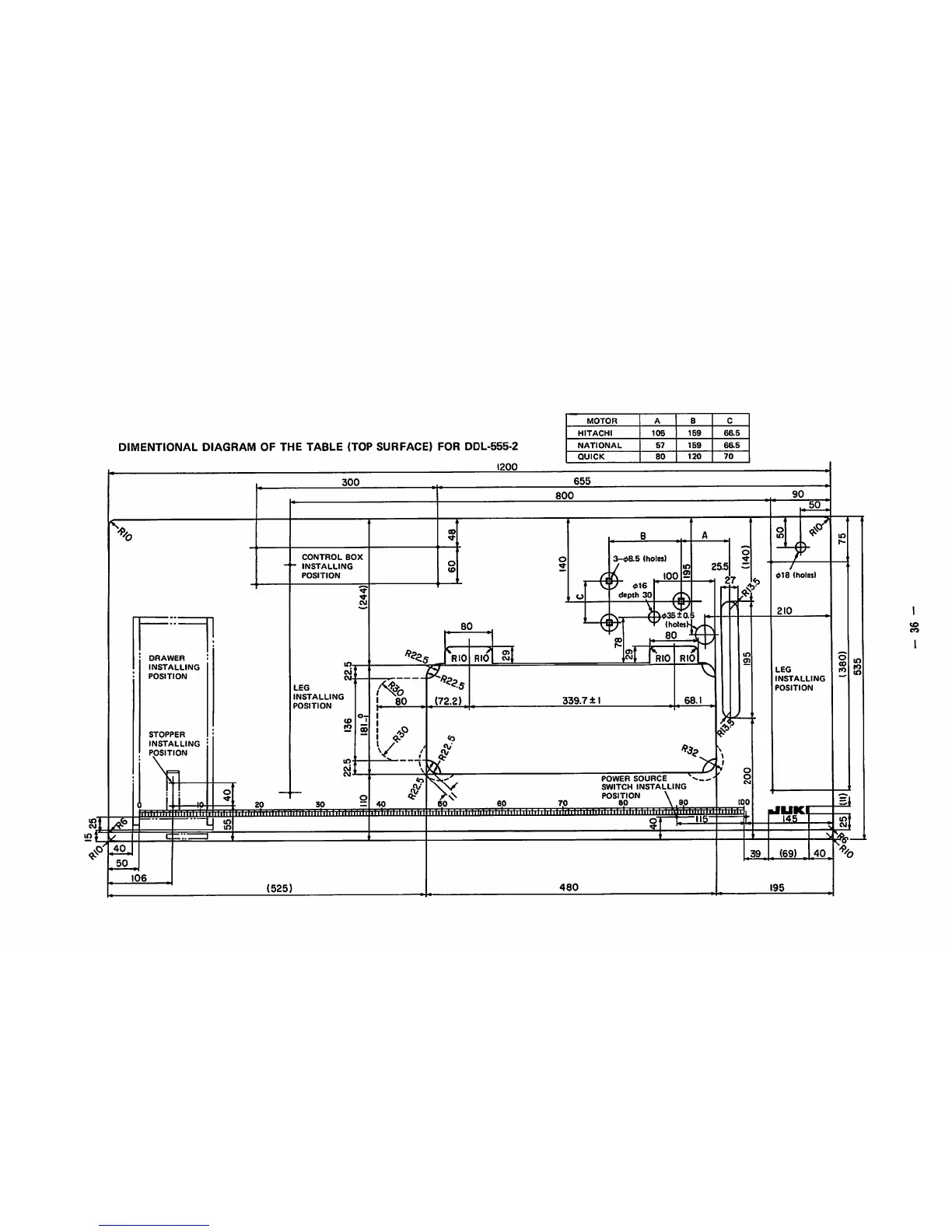

DIMENTIONAL DIAGRAM OF THE TABLE {TOP SURFACE) FOR DDL-555-2
1200
DRAWER
INSTALLING
POSITION
STOPPER
INSTALLING
POSITION
CONTROL BOX
INSTALLING
POSITION
LEG
INSTALLING
POSITION
MOTOR
A 8
C
HITACHI
105
159
66.5
NATIONAL 57
159 eas
QUICK
80
120
70
339.7 ± I
3-^8.5 (holes)
100
016
depth 30
035±O.5
(holes
80
POWER SOURCE
SWITCH INSTALLING
POSITION
70 80
018 (holes)
LEG
INSTALLING
POSITION
