JUKI HZL-G Series Service Manual

– 5 –
○

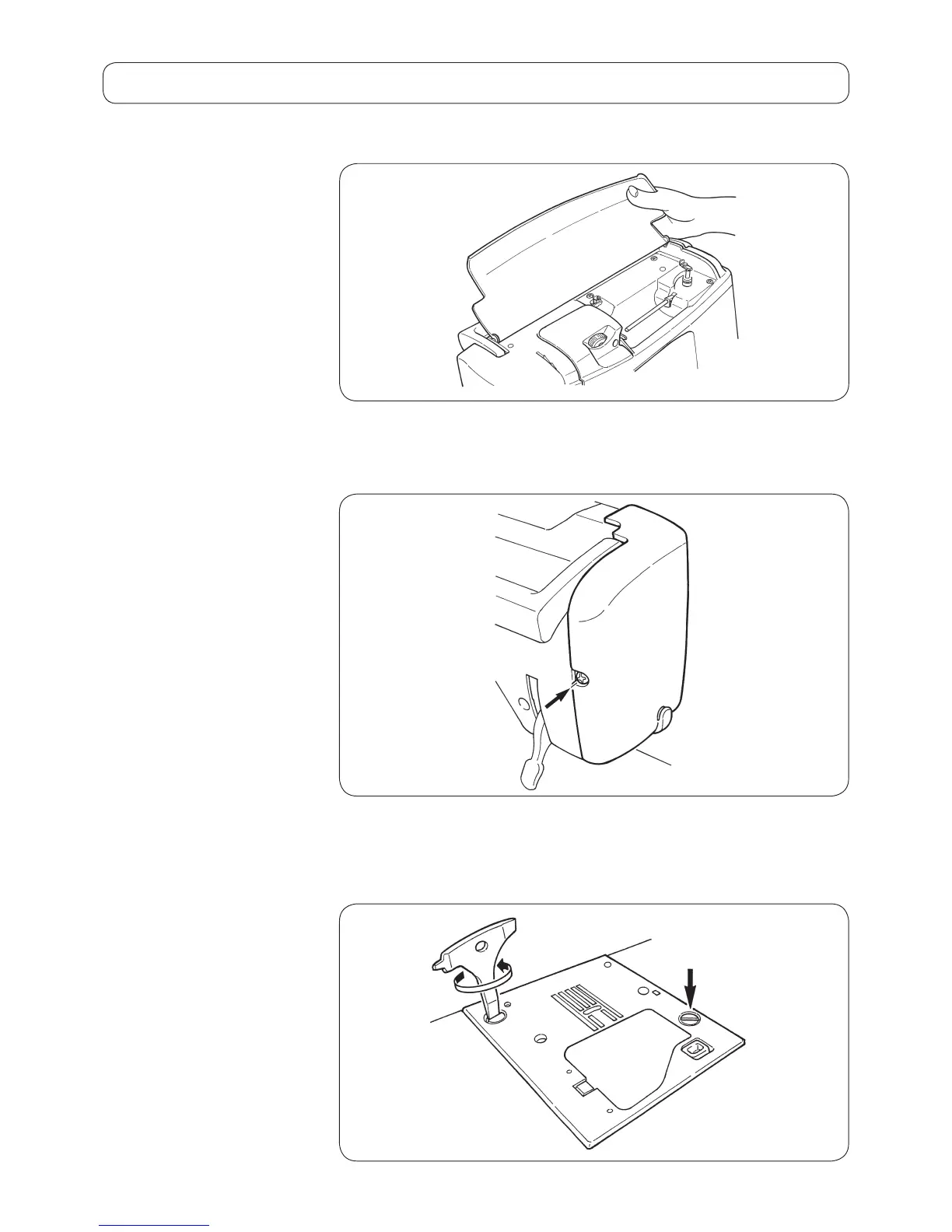

To remove the top cover, bow the hinge section of the right side of the cover.
○
Remove setscrews
1
from the cover. Then, remove the cover.
○
Remove setscrews
2
and
3
from the throat plate.
Then remove the throat plate.
[4] Disassembling the machine covers
1) Top cover
2) Face cover
3) Throat plate
1
2
3
