70

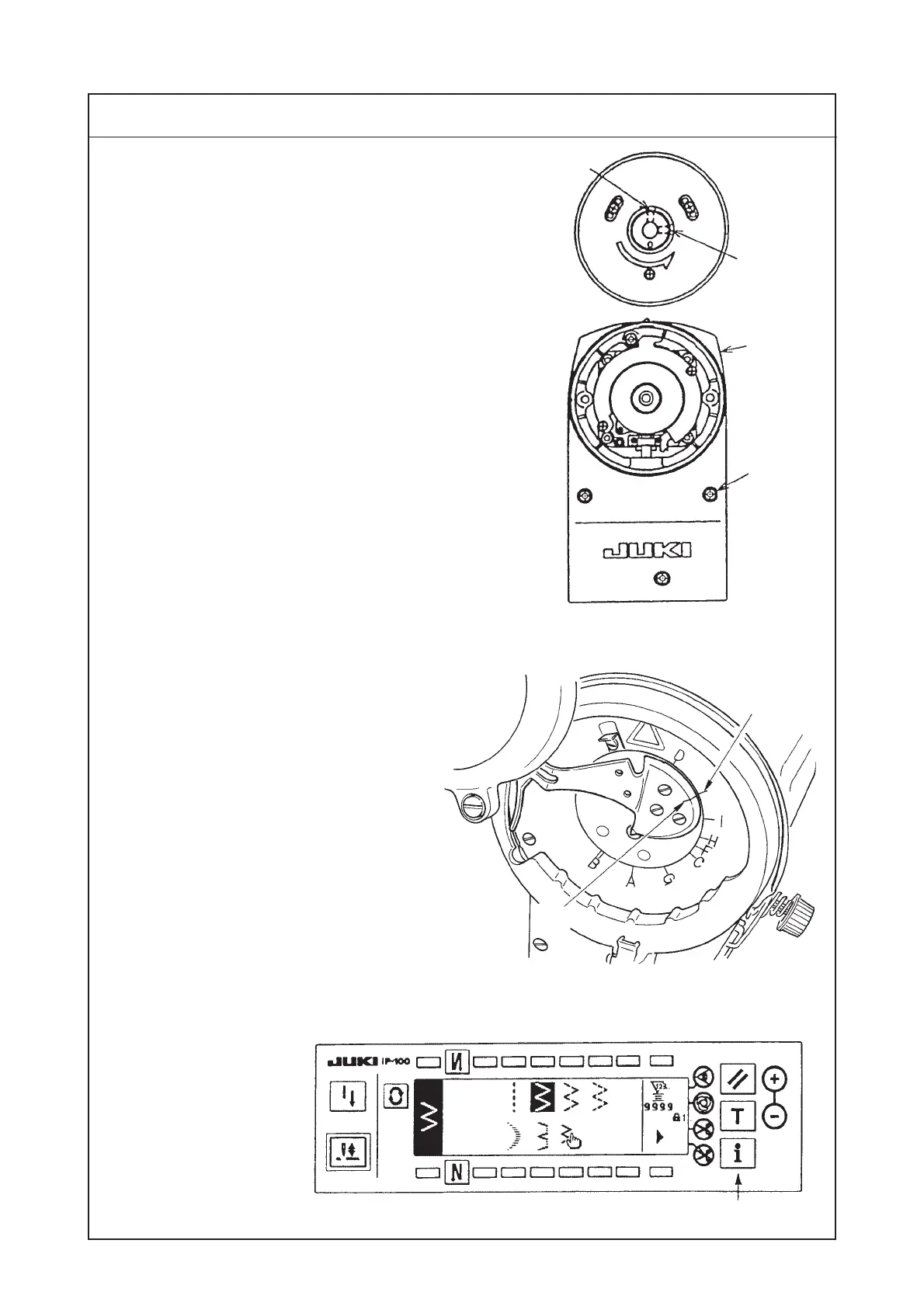

(6) Adjusting/assembling the reverse feed control lever (A-SR only)
1
Procedures of disassembling/assembling
1) Loosen setscrews in the handwheel in the order
of screw No. 2 2 and screw No. 1 1, and
remove the handwheel.
2) Remove four setscrews 4 in the pulley cover
3, and remove pulley cover 3.
3) Temporarily assemble the handwheel again.
(Assembling the handwheel is due to the
workability.)
4) Turn the handwheel and adjust it to UP-stop
position (60 º).
5) Turn the power ON, press switch 5 to display
the information screen.
2
3
4
Engraved
marker line on
the face plate
Engraved marker line on the
thread take-up
5
