– 38 –

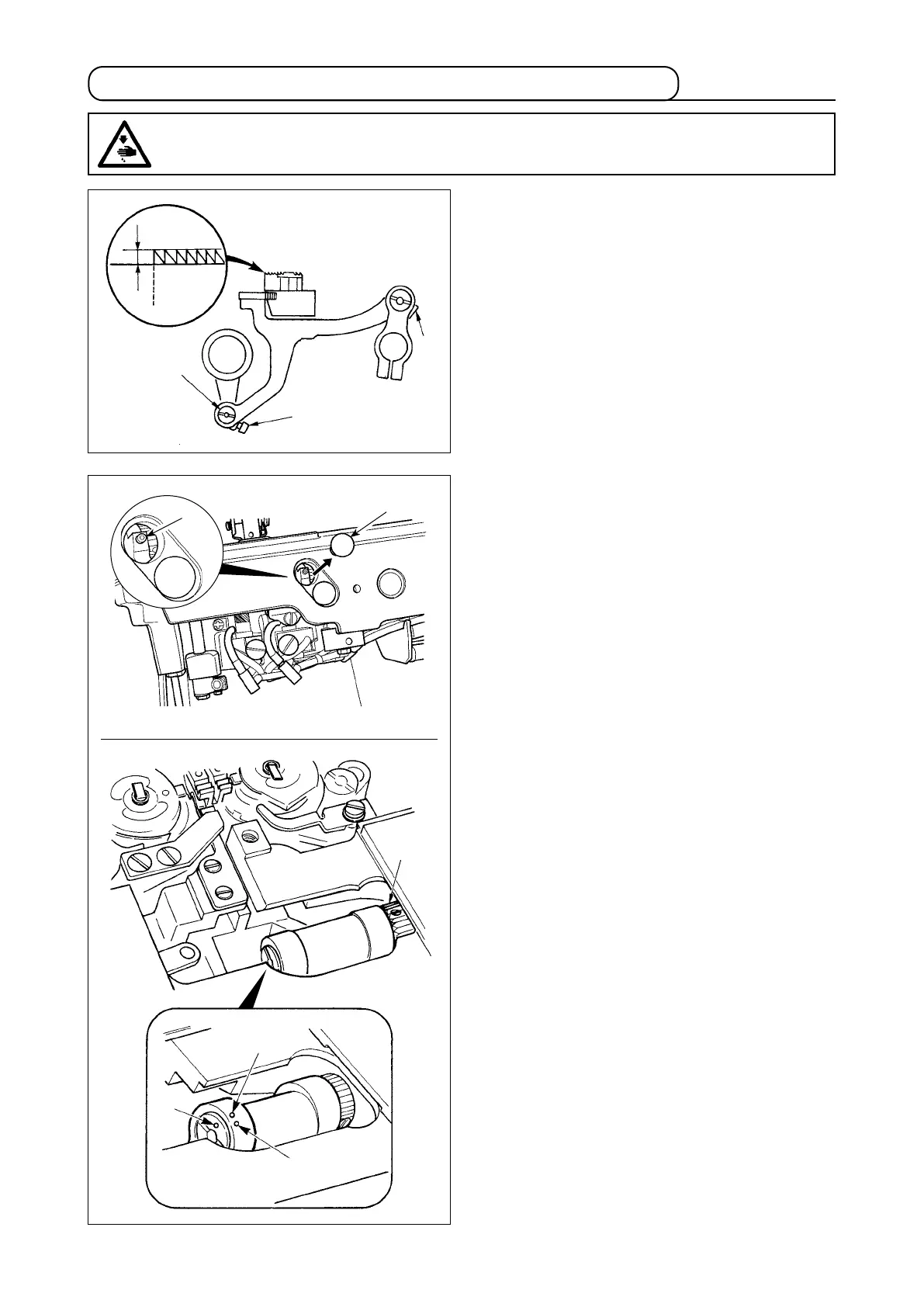

(1) Adjusting the height
1) Loosen feed driving link setscrew
❶
. Turn feed
driving link shaft
❷
to adjust the height of the
feed dog. Standard height is 1 mm from the
throat plate in the highest position.
6-6. Adjusting the height and the inclination of the feed dog
(2) Inclination
1) Remove cap
❹
on the side of machine bed,
loosen feed bar shaft setscrew
❸
, and turn
knurled section
❺
to adjust the inclination.
Standard inclination is the position where en-
graved marker dot
A
of feed bar arm aligns with
engraved marker dot
B
of feed bar shaft. (En-
graved marker dot
C
is not used.)
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power o and ascertaining that the motor is at rest.
❺
❷
❸
1mm
❶
❹
A
C
B
❸
