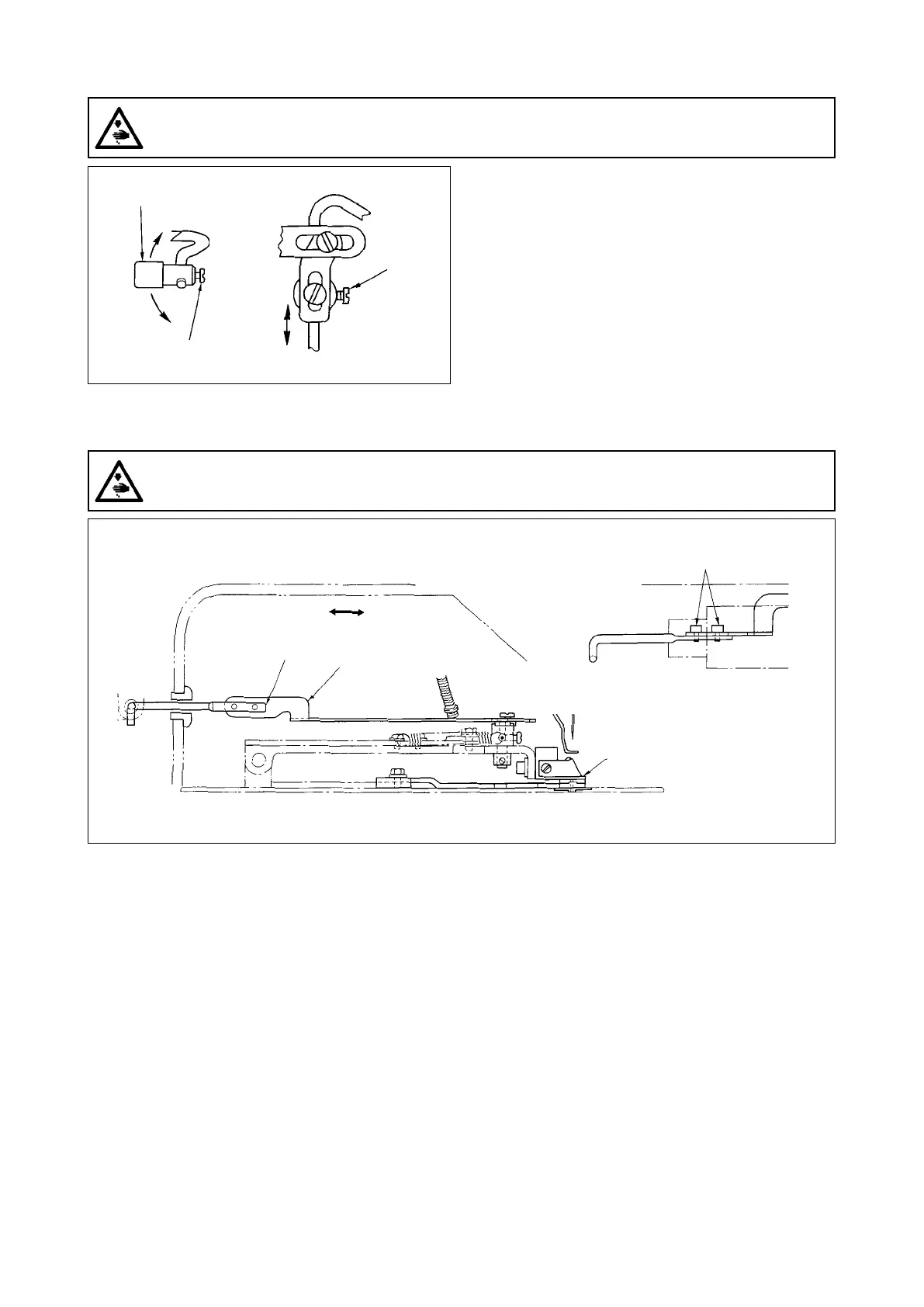

To adjust the position of button support rubber asm.
, loosen setscrews
and
, and adjust so that
the pressing section of the button support rubber can
press the center of the button at right angles to the
button. Then tighten the setscrews.
(7) Adjusting the button support rubber
(8) Adjusting the button support link
Loosen screw
, and move button support link
in the direction
to make early the opening of the
button support rubber when button clamp attaching base
goes up. Move it in the direction
to retard
the opening of the button support rubber. The standard adjustment is to adjust so that the button support
rubber starts opening when button clamp attaching base
has gone up by 1 mm.
Long slit
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
