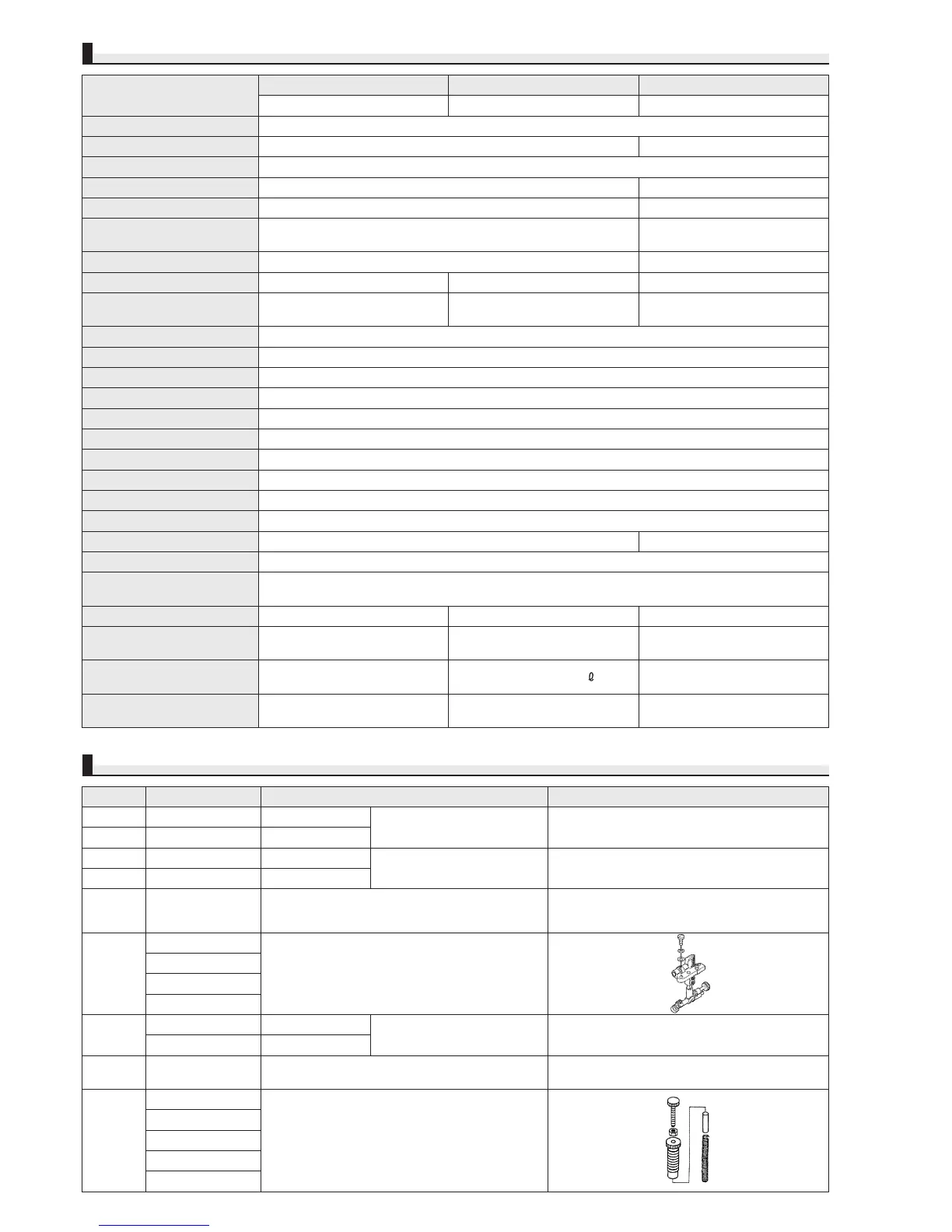

LU-1560, 1565, 1560-7 (June, 2001) 2/4
Model name
Application
Max. sewing speed
Max. stitch length
Needle bar stroke
Lift of the presser foot
Needle gauge (mm)
Organized spilt needle bar
Alternating vertical movement
Dial for adjustment of
alternating vertical movement
Thread take-up
Hook
Needle (at the time of delivery)
Thread
Feed dog motion
Handwheel
Pitch changing method
Bobbin winder
Knee-lifter mechanism
Safety mechanism
Lubrication
Lubricating oil
Distance from needle to
machine arm/Bed size
Weight of the machine head
One-touch type reverse
feed function
Compressed air and
air consumption
Power requirement
SPECIFICATIONS
OPTIONS
Model
AK119A
AK119B
AK120A
AK120B
─
H152
─
PK75
─
Part No.
GAK-A19010A0
GAK-A19010B0
GAK-A20010A0
GAK-A20010B0
213-48552
MAH-152010A0
SS-7151610-SP×2
WP-0621016-SD×2
WP-0610002-KN×2
MAY-BL6B10A0
MAY-BL6B20A0
─
210-06507
NS-6110530-SP
210-06408
210-16101
210-06002×3
Description
Knee switch type
Pneumatic auto-lifter
Pedal switch type
Knee switch type
Pneumatic auto-lifter
Pedal switch type
(provided with an air regulator)
Pneumatic one-touch type reverse feed stitching device
(provided with an air regulator)
Suspended ruler
Core dia. 6〜10mm
Piping holder
Core dia. 2〜5mm
3-pedal unit
Additional spring for presser bar
Feature
Applicable model: LU-1560-7
Applicable model: LU-1560, LU-1565
Applicable model: LU-1560, LU-1565
＊To use an auto-lifter and reverse feed stitching device in
combination, select AK119A or AK119B
─
Applicable model: LU-1560-7
Highly operable 3-pedal unit for standing work.
LU-1560 LU-1560-7 LU-1565
─ With an automatic thread trimmer With an organized split needle bar
For heavy-weight materials
2,500rpm 2,000rpm
9mm (normal/reverse feed)
36mm 33.4mm
By hand: 9mm, By knee: 16mm (max.) By hand: 9mm, By knee: 13mm (max.)
4.8, 6.4, 7.9, 9.5, 12.7 4.8, 6.4, 7.9
(3/16", 1/4", 5/16", 3/8", 1/2") (3/16", 1/4", 5/16")
─ Provide as standard
2.5〜6.5mm 1〜6.5mm 2.5〜6.5mm
─ Provide as standard ─
Slide type
Vertical-axis double-capacity hook
135×17 (Nm160) Nm125〜Nm180 or DP×17 #23
#30〜#5, B46〜B138, Nm=60/3〜30/3
Rectangular
Large, aluminum
By dial
Built on the machine head
Built on the machine head
Provided as standard
Automatic By an oiler (hook: automatic)
JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
255mm/517mm×178mm
45kg 51kg 45kg
Option Provided as standard Option
─ 0.5MPa (5kgf/cm
2
), 0.3N /min ─
─
Single-phase 110〜120V, 220〜240V
─
3-phase 200〜220V, 220〜240V
