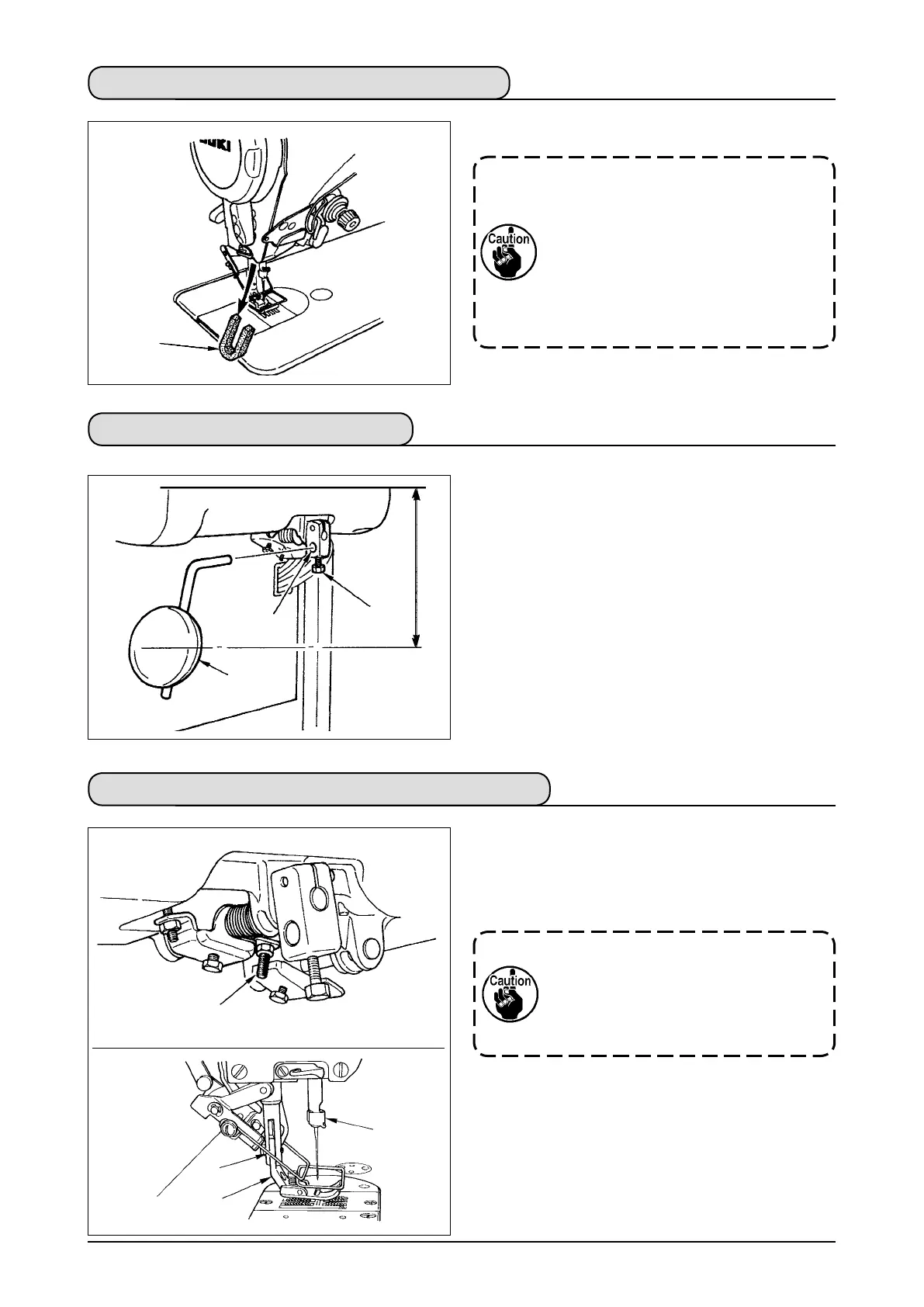

4-4. Adjusting the height of the knee lifter
1) The standard height of the presser foot lifted us-
ing the knee lifter is 10 mm.
2) You can adjust the presser foot lift using knee
lifter adjust screw
1
.
Do not operate the sewing machine in
the state that presser foot
3
is lifted by
10 mm or more since needle bar
2
and
presser foot
3
, or wiper
4
and presser
foot
3
come in contact with each other.
4-2. Removing the needle bar stopper
Remove needle bar stopper
1
for transportation.
Keep the needle bar stopper which has
been removed, and install this needle
bar stopper when transporting the sew-
ing machine. The needle bar stopper
may be cut when it is strongly drawn
out. Slightly move the needle bar to the
right or left and slowly draw out the nee-
dle bar stopper.
4-3. Attaching the knee-lifter
Insert knee lifter pad
1
into attaching hole
2
and
tighten it with bolt
3
.
* Adjust the position of knee lifter pad
1
to a conve-
nient place. For the reference dimension, the posi-
tion is 220 mm from the bottom face of table.
1
1
2
3
220 mm
2
3
4
1
