JUKI MO-6804S - (2) Adjusting the lift amount of the presser foot

– 17 –

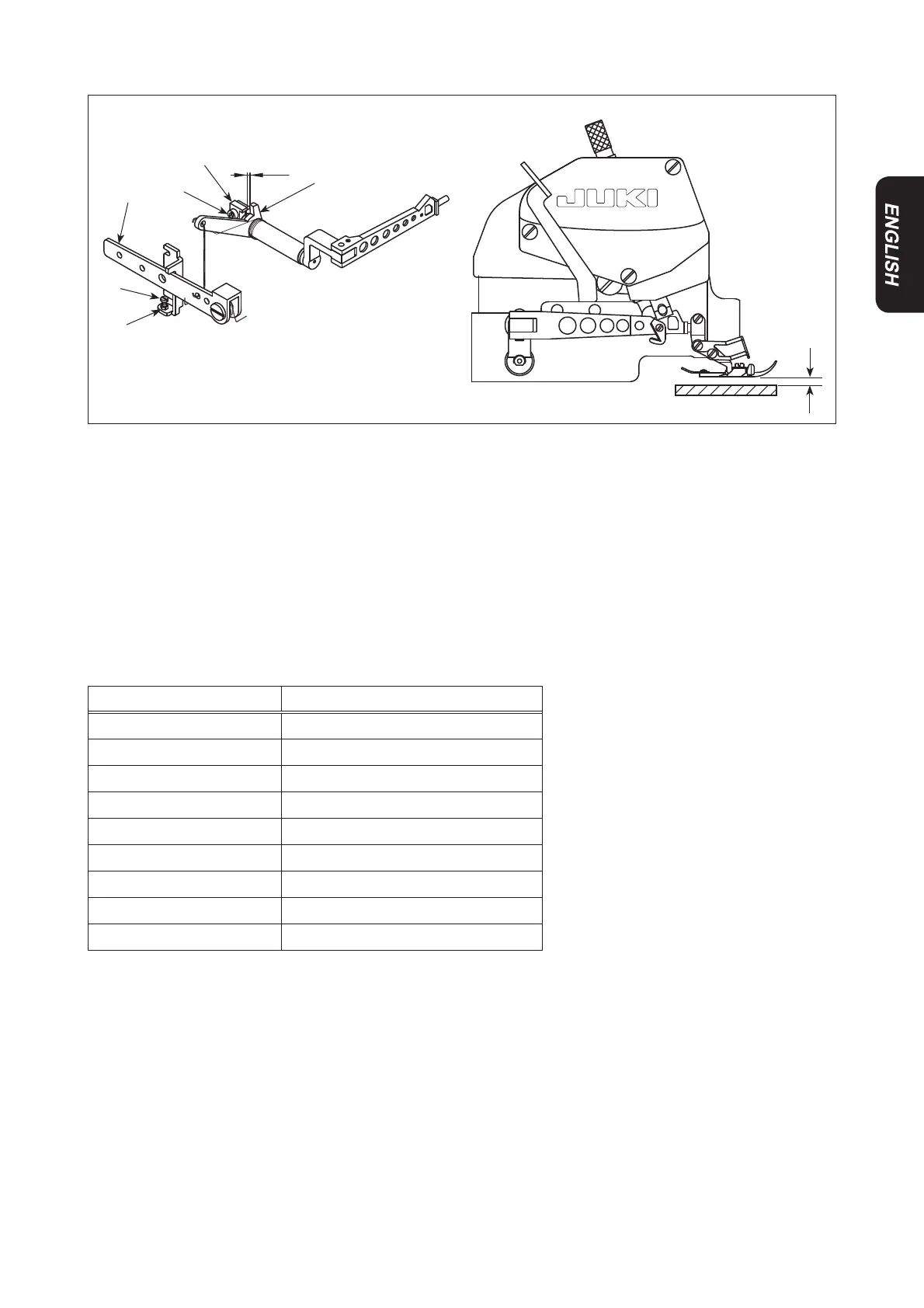

(2) Adjusting the lift amount of the presser foot
1) Turn the pulley to lower the feed dog until the bottom of the presser horizontally comes in contact with the
throat plate.
2) Provide a 1 mm clearance between presser foot lifting arm ❶DQG¿[LQJEUDFNHW❷. This clearance can be
adjusted by slightly loosening screw ❸.
3) Loosen nut ❹. Press presser foot lifting lever ❻ to lift the presser foot from the throat plate surface. The lift
of the presser foot differs with the model. Adjust the lift of the presser foot according to the model referring
to the table shown below.
Then, adjust screw ❺ so that it comes in contact with presser foot lifting lever ❻. Tighten nut ❹.
4) After all the adjustments above, please tighten the screw ❸.
A
1 mm
❷
❶
❸
❻
❺
❹
Model Lift amount of the presser foot (A)
MO-6804S 6
MO-6814S-2△H
5.5
MO-6814S-3△H
5.5
MO-6814S-4△H
7
MO-6814S-30P 5
MO-6816S-3△H
5.5
MO-6816S-50H 6.5
MO-6816S-60H 7
MO-6816S-30P 5
(Unit : mm)
