5. Preparations
5.1. Installation
Notice:
Plexiglas and Makrolon baths are not resistent to solvents.
Avoid contamination of the bath fluid with solvents.

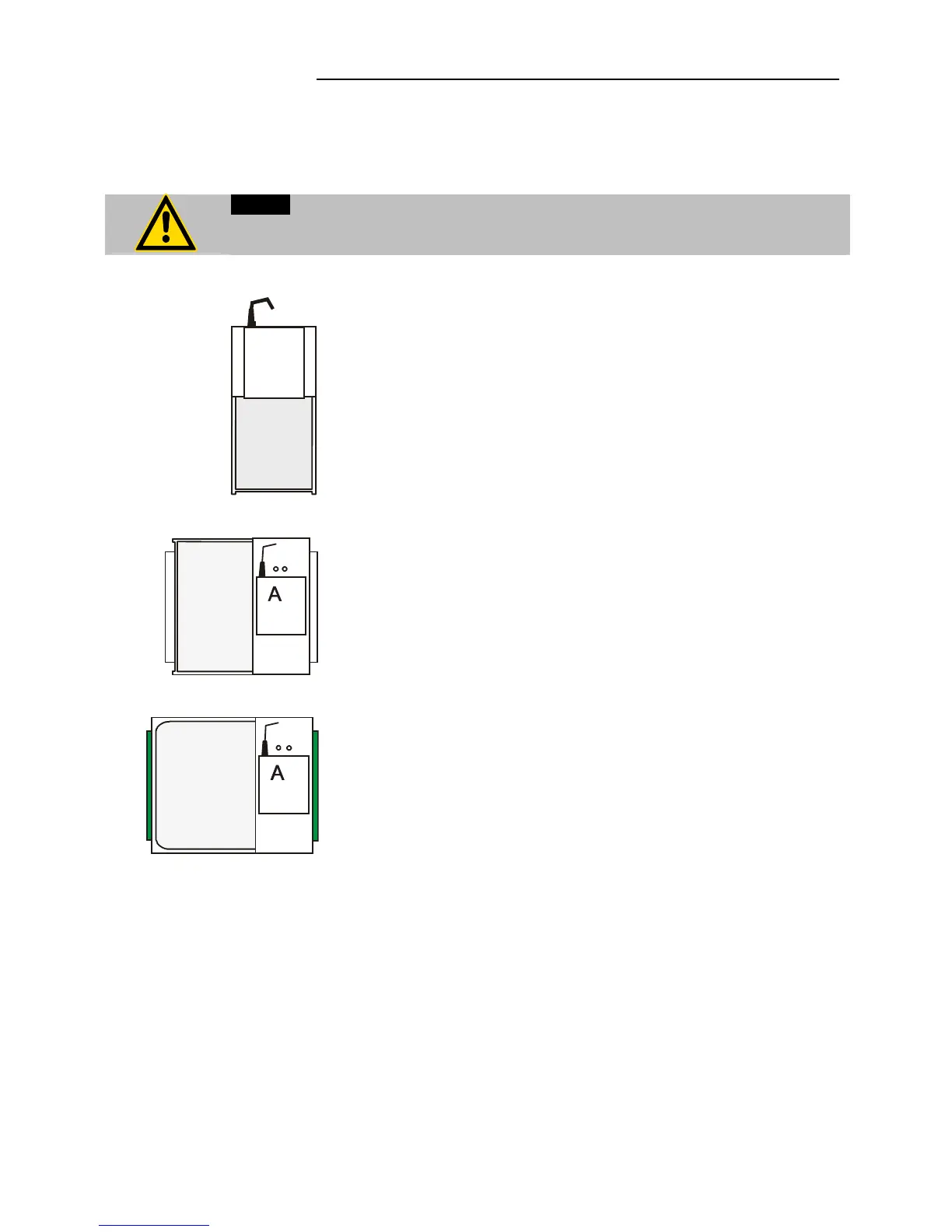

Top view
A
Place the circulator in an upright position.
ED-5A/B
ED-7A/B
ED-5M/B
The circulator (A) mounted on a stainless steel bridge is
placed on the back of the bath tank.
Top view
ED-13A / ED-19A, ED-13M / ED-19M
• The circulator (A) fitted with a stainless steel bridge is
placed on the right side of the bath tank leaving the bath
open on the left side.
Top view
• The circulator (A) fitted with a stainless steel bridge is
placed on the right side of the bath tank leaving the bath
open on the left side.
ED-13, ED-17, ED-19, ED-27, ED-33, ED-39
A lift-up bath cover or flat stainless steel bath cover is
available as optional accessory.
Lift-up bath cover:
Order-No. 8970253 Bath tank 13, 17
Order-No. 8970254 Bath tank 19, 27
Order-No. 8970257 Bath tank 33
Flat stainless steel bath cover:
Order-No. 8970263 Bath tank 39
Order-No. 8970290 Bath tank 13, 17
Order-No. 8970291 Bath tank 19, 27
Order-No. 8970292 Bath tank 33
