9.9. Analog inputs/outputs
If the electronic module is not fitted, the item >inputs/outputs< will be
missing in the menu.
ALARM
REG+
E-PROG
STAND-BY
 In order to use the analog inputs and outputs, the circulator must be
equipped with the electronic module, which is available as option.
Order No. 8 900 100 Electronic module
This submenu enables the input and output values to be set for the
programmer input and the temperature recorder outputs of the REG+E-
PROG socket.
The >STAND-BY< input and the >ALARM< output are configurable.
Menu item >SV-OUT< is not used.
Channel 1 voltage output for recorder (V)
Channel 2 voltage output for recorder (V))
Channel 3 current output for recorder (mA)
EPROG external programmer input
External standby Standby input
(for external switch-off)
Alarm output Output for external alarm signal


NOTE:
Channel 2 is pre-configured for the connection of an HST Booster Heater.
 Press the key if a parameter is to be retained. (prior to OK)
Level 2
Parameter-Level
Menu item >SV-OUT< is not used.
Level 2
Level 3
Parameter-level

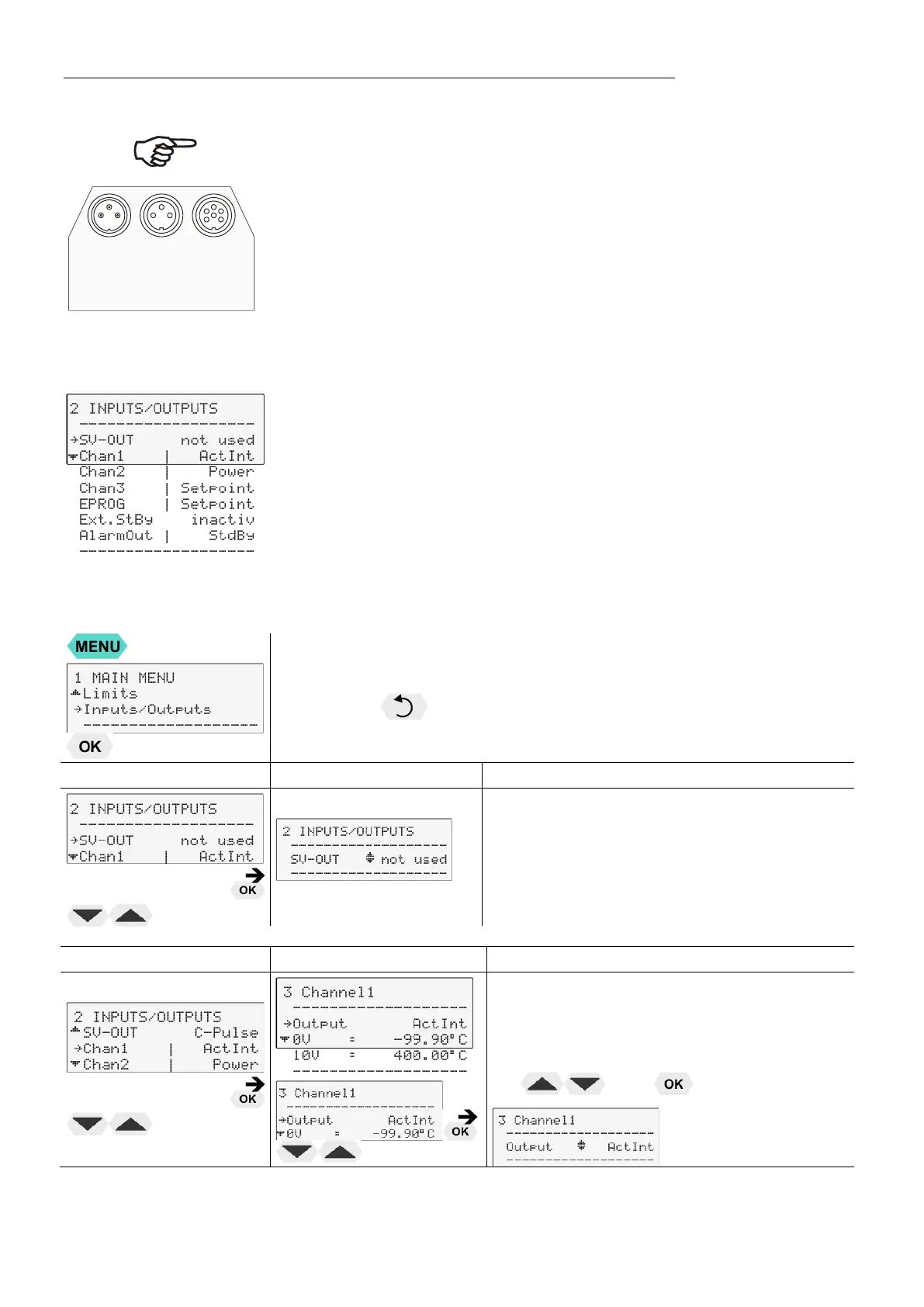

Define the output value for channel 1
Possible parameters:
ActInt, ActExt, Power, Setpoint
• The parameter flashes, switch by pressing
and
