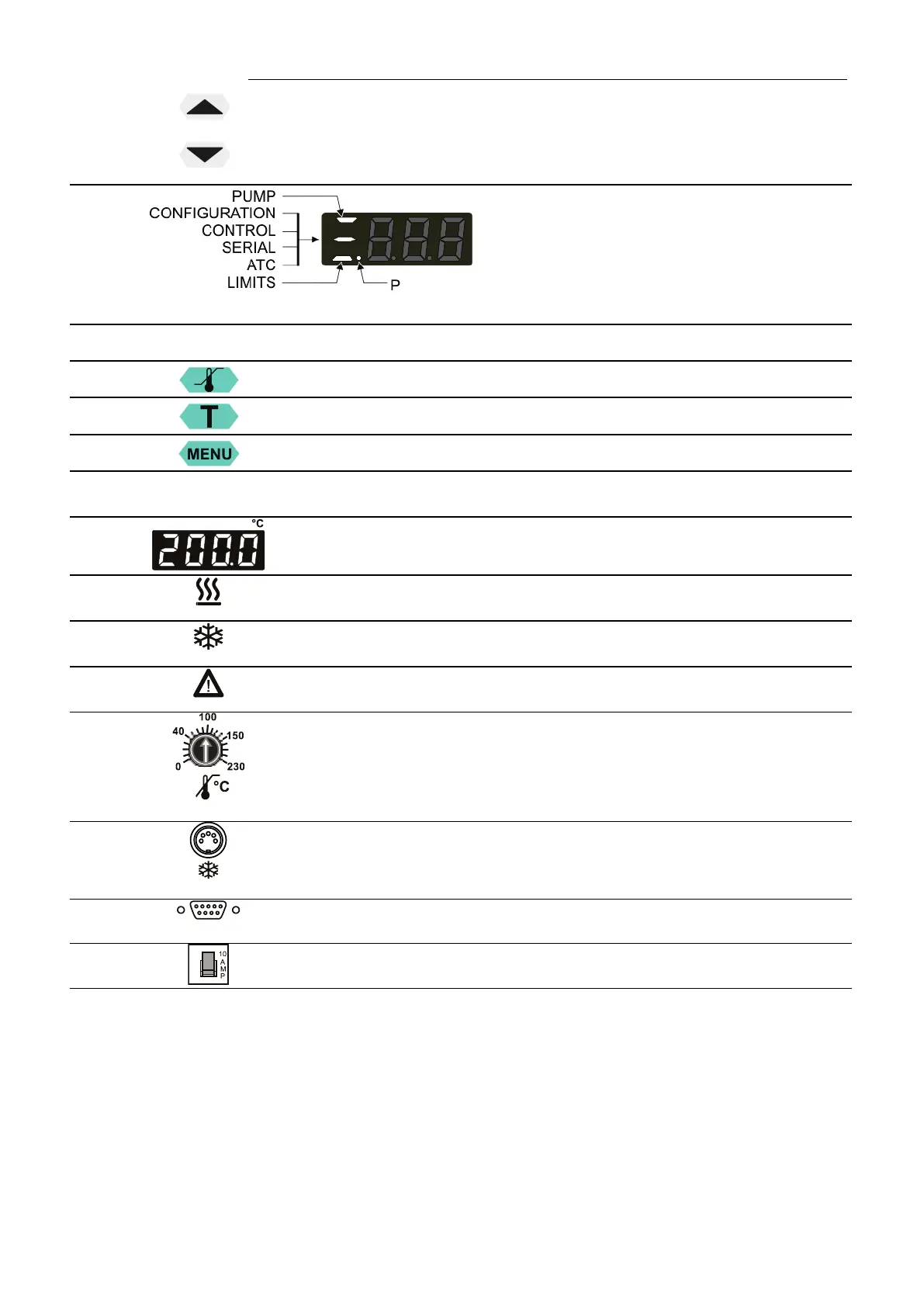

4 1. Key: >Up / Down <temperature – increase/decrease setpoint
Push key quickly for single steps,
Keep key pressed for fast change.
2. >Up/Down< in the menu selection of menu items / parameters
Navigation aids
Flashing segments show the position
within the structure of the menu.
Item „P“ flashes simultaneously in the
submenu.
Menu keys
5 Key: start the menu > warning and safety values<
6 Key: start the menu >temperature setpoints<
7 Key: display of MENU structure
10
MULTI-DISPLAY (LED) temperature indication, menu indication
11
Control indicator –Heating
12
Control indicator – Cooling (without function)
13
Control indicator – Alarm
14
Adjustable excess temperature protection according to IEC 61010-
2-010
15
Socket: control cable of JULABO refrigerated circulator
or output for alarm messages
16
RS232
Interface RS232: remote control via personal computer
18
Mains circuit breakers (resettable) 15 A
20
Mains power cable with plug
