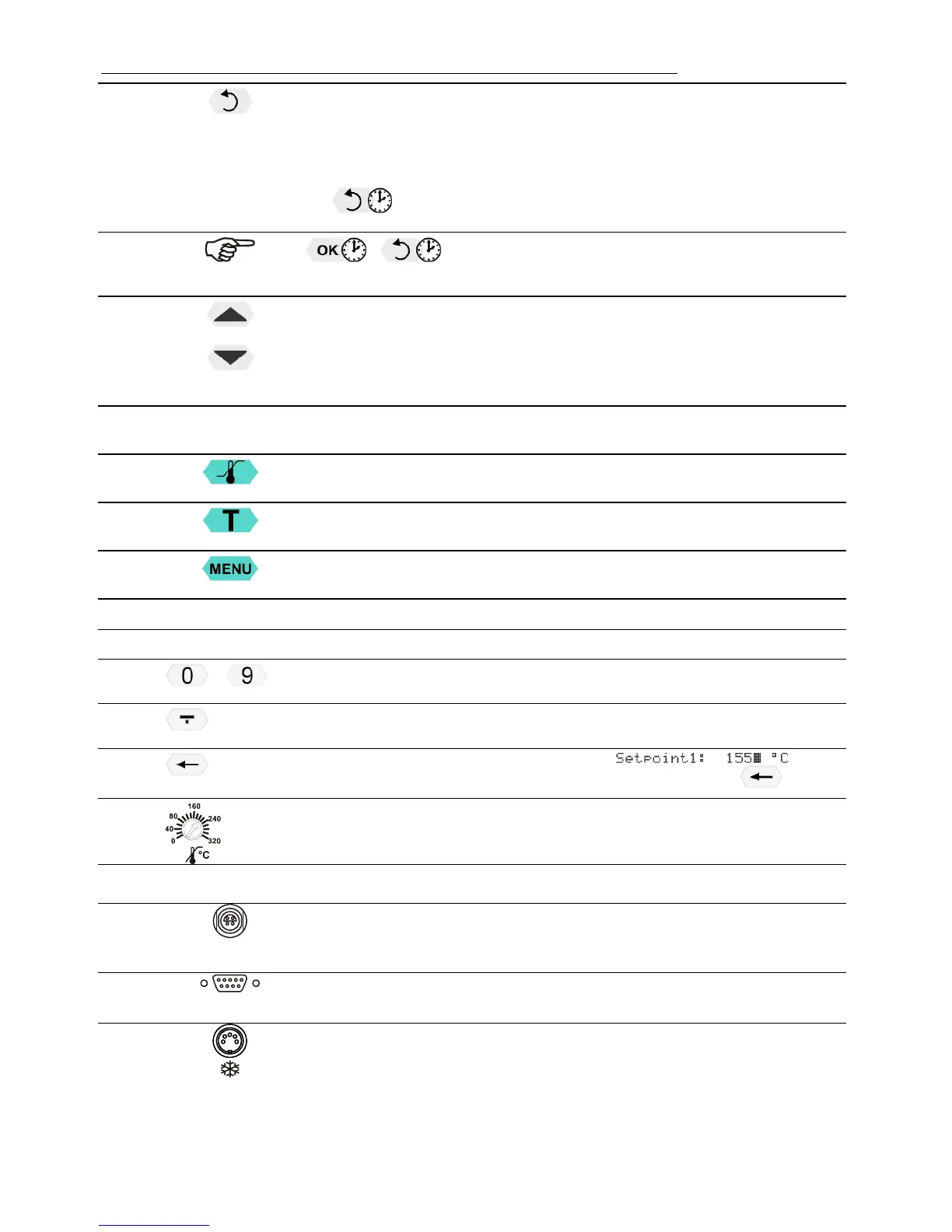

Operating controls and functional elements
16
4.2
1. Key: >Return< Stop (pump / heater)
Special display on VFD Display leave line 3.
2. >Return< in the menu one menu level down
Correction function for parameters or values (prior to OK)
immediately back to standard display
- icon for „keep key pressed down“.
4.3
1. Key: >Up / Down <temperature – increase/decrease setpoint
Push key quickly for single steps,
Keep key pressed for fast change.
2. >Up/Down< in the menu selection of menu items / parameters
Menu keys
4.4
Key: start the menu > warning and safety values<
4.5
Key: start the menu >temperature setpoints<
4.6
Key: display of MENU structure
5 Keypad 2
..
Numeric keypad: numerals 0 to 9
minus / decimal point
Backspace key
on LCD DIALOG-DISPLAY.
6
Adjustable excess temperature protection according to IEC 61010-2-010
Rear view
7
ext Pt100
Socket for external measurement and control sensor
or external setpoint programming
8
SERIAL
Interface RS232 / RS485: remote control via personal computer
9
Socket: control cable of JULABO refrigerated circulator
or output for alarm messages
