JUMO EM-80 - Page 13

13
3 Installation
permissible
flow
rates

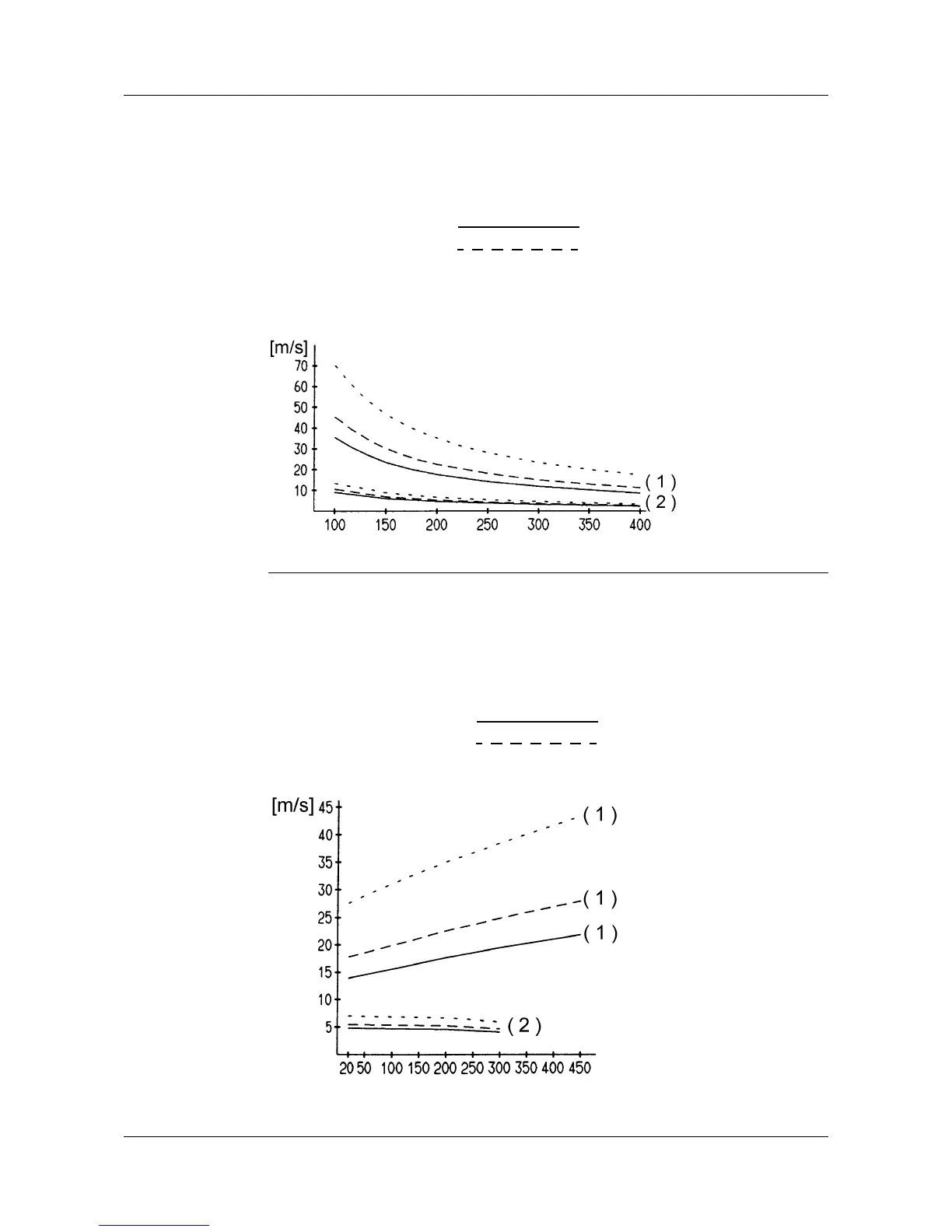

Permissible flow rate [m/s] at maximum admissible pressure load and different
immersion tube length "S“
Permissible flow rate [m/s] at maximum admissible pressure load and different
immersion tube temperature.
Material: St35.8 I
Temperature: +200 °C
Heat transfer oil:
Air ( 1 )
water, oil ( 2 )
Pipe diameter Ø:
08mm
10 mm
. . . . . . . . . . . . . . 15 mm
( 1 ) Air
( 2 ) Water, oil
Immersion tube length
[mm]
Material: St35.8 I
Immersion tube length "s":
200 mm
Heat transfer oil:
Air ( 1 )
water, oil ( 2 )
Pipe diameter Ø:
08mm
10 mm
. . . . . . . . . . . . . . 15 mm
( 1 ) Air
( 2 ) Water, oil
Temperature
[°C]
