4 Installation
Plug-in connec-
tor
(as standard)
( 1 ) = Tab connector DIN 46 244-A 6.3 x 0.8
Screw-
connection
(extra code 699)
( 1 ) Plug-in sleeve 6.3 with connection screw suitable for wires up to 2.5
mm
2
; fitting type "699", without auxiliary means
( 2 ) Terminal strip

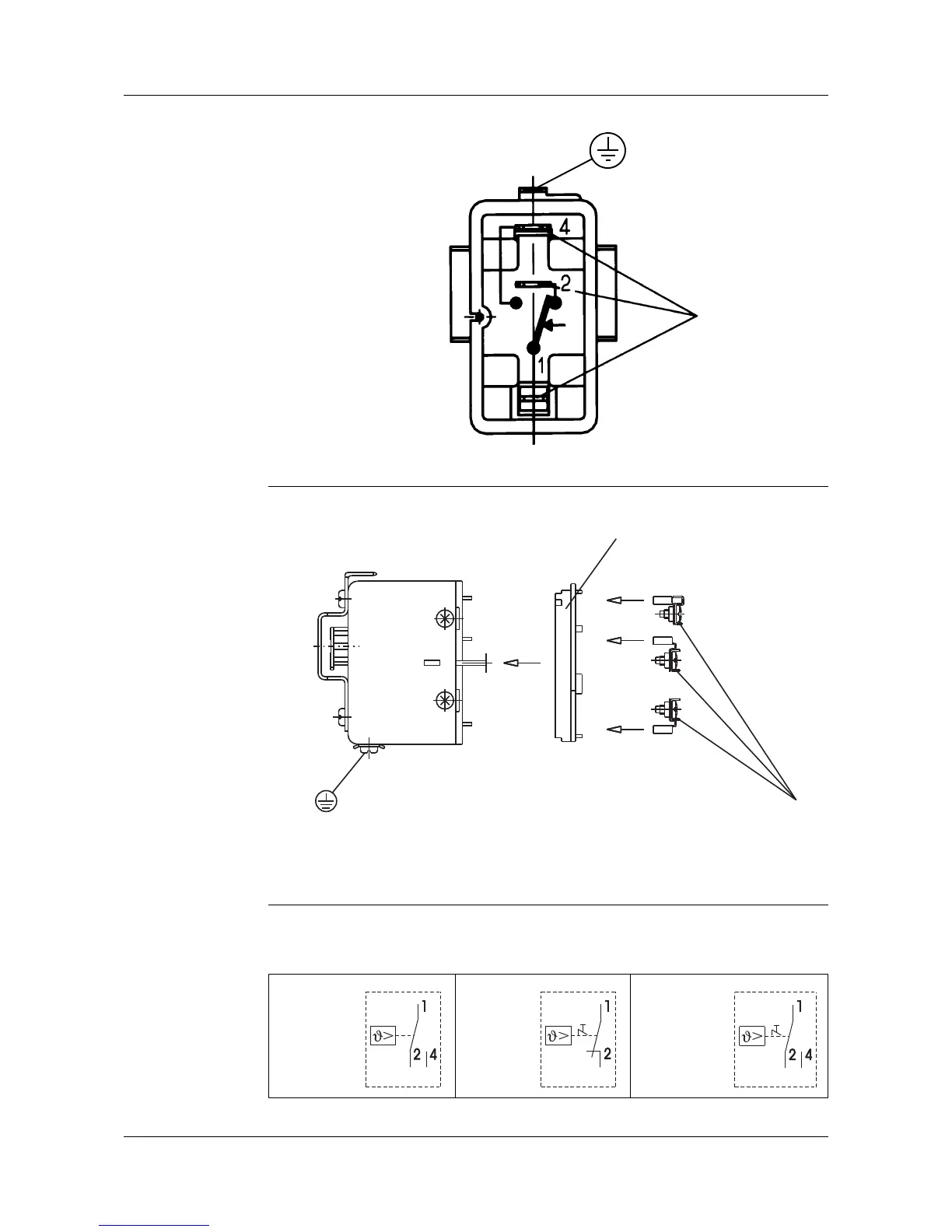

4.3 Wiring diagrams
( 1 )
2
1
EM-20-E
EM-30-E
EM-80 EM-80/574
