JUMO LOGOSCREEN fd - Vertical Display; Horizontal Presentation

4 Visualization
36

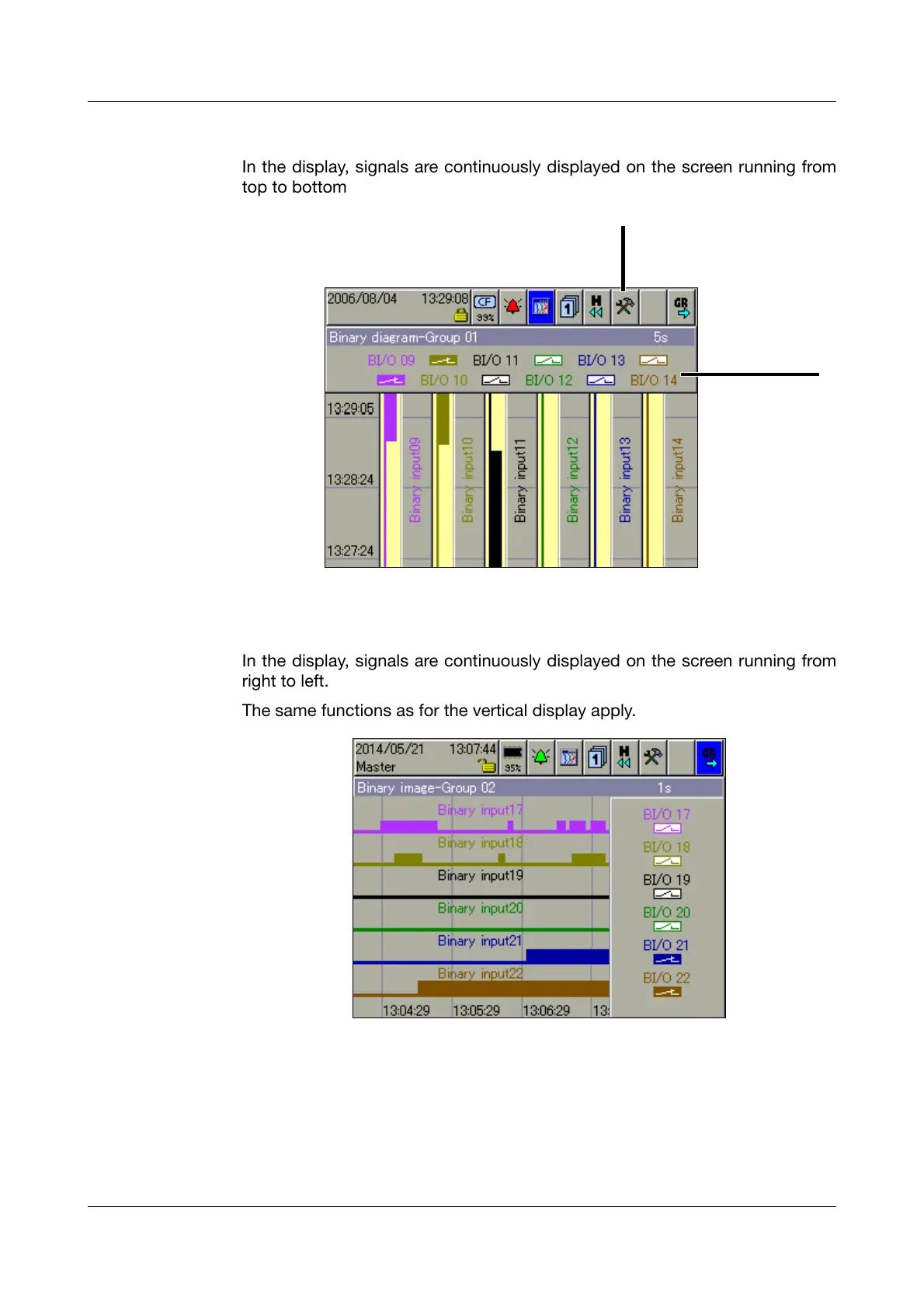

4.7.1 Vertical display
In the display, signals are continuously displayed on the screen running from
top to bottom.
4.7.2 Horizontal presentation
In the display, signals are continuously displayed on the screen running from
right to left.
The same functions as for the vertical display apply.
Diagram header
Switch on and off
Diagram header
