3 Installation
14
Fitting into
the panel
Fitting in
position

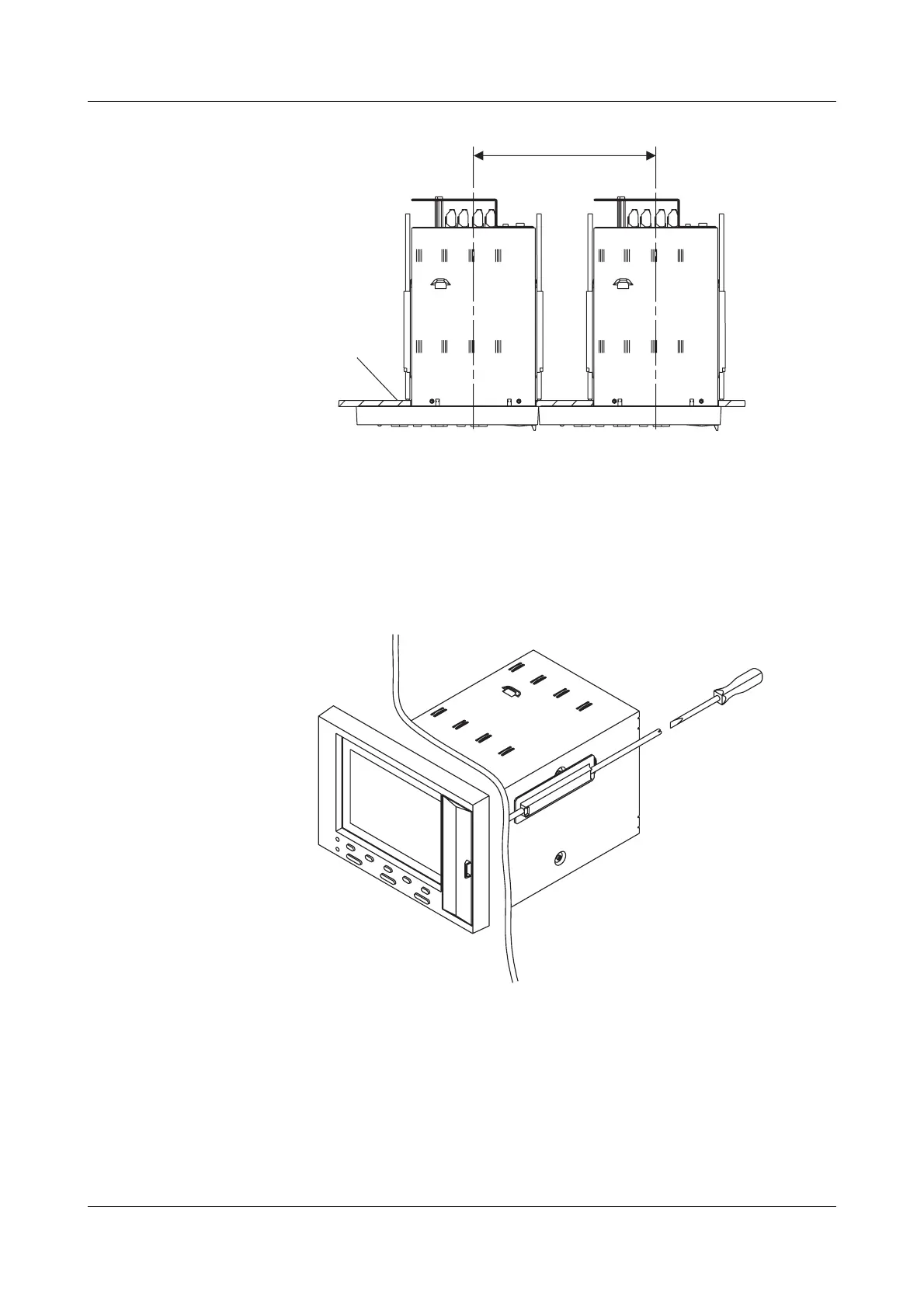

h Insert the paperless recorder from the front into the panel cut-out.
h From the back of the panel, hook the two mounting brackets into the
recesses on the sides of the housing. The flat sides of the brackets must be
against the housing.
h Place the mounting brackets against the rear of the panel and tighten
them evenly.
Panel
min. 200
