Jung FTR231 User Manual

DANGER!
Mortal danger of electric shock.
Disconnect the device. Cover up live parts.
Connecting and fitting the device
Recommended installation height: 1.50 m.

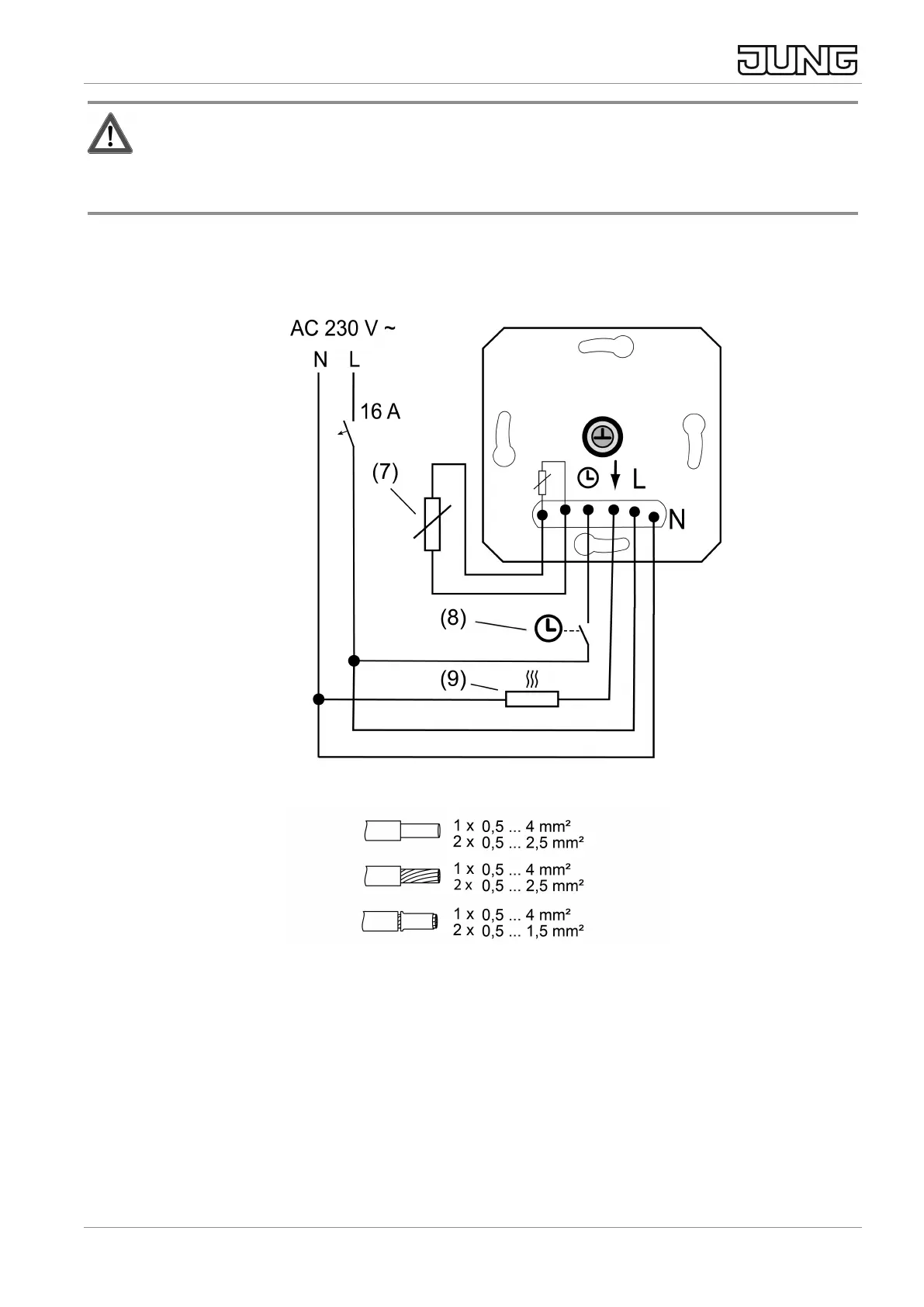

Image2: Connection example of the insert
Image3: Clampable conductor cross-section
(7) External temperature sensor (remote sensor)
(8) Switching contact of central clock
(9) Electric underfloor heating
￭ Connect insert (1) according to the connection diagram (see figure 2). Ob-
serve the conductor cross-sections (see figure 3).
￭ Optionally, connect the ECO operation input Ø via a switching contact of a
central clock (8).
If 230 V is applied to the input, the target temperature is reduced by 4 °C.
Floor thermostat
6 / 9
82404903 16.09.2022
J0082404903
