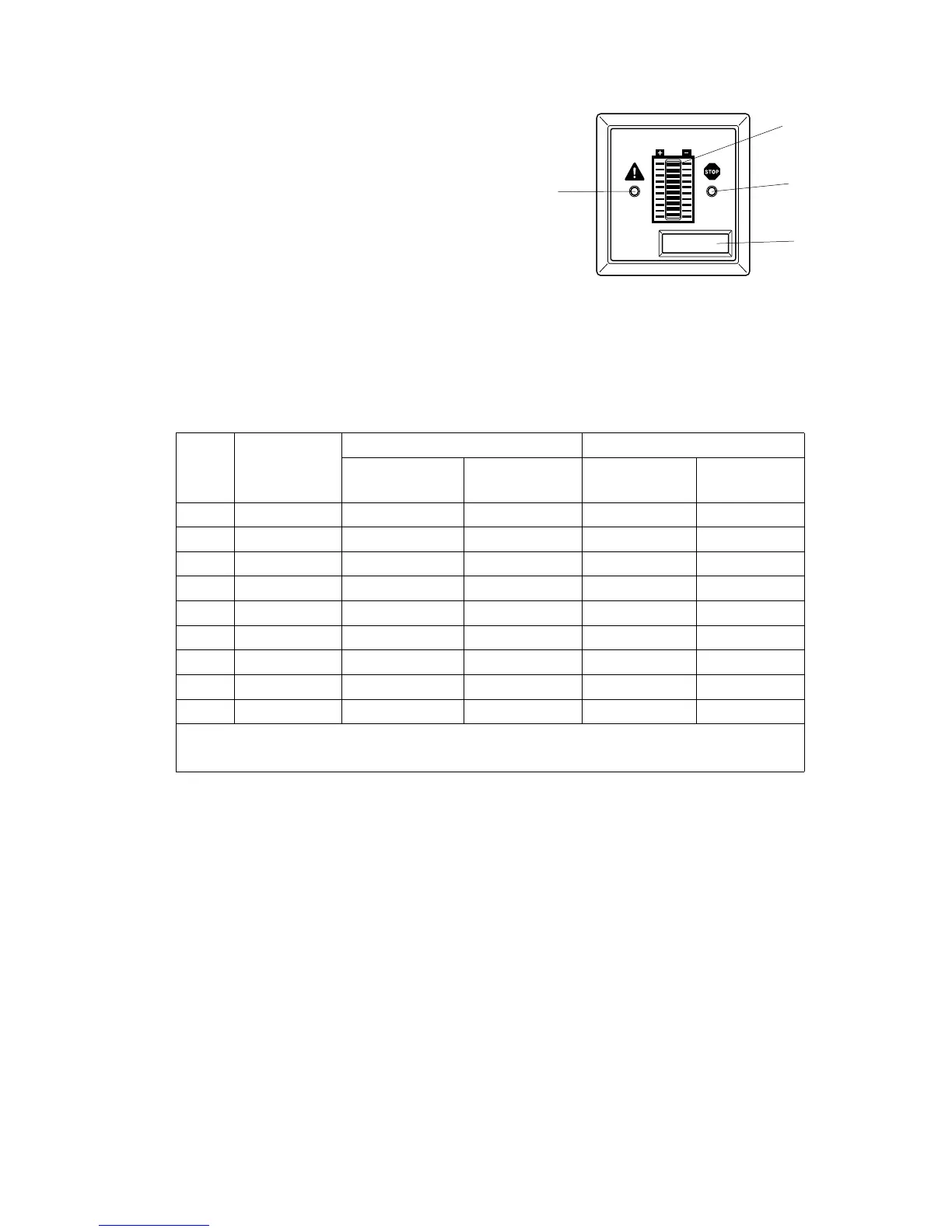

7 Display instrument (CANDIS) (o)
The instrument indicates:
– Battery discharge condition
(LED bars (27)),
– Operating hours
(LC display (29)).
In addition, error messages of the electronic
components and parameter changes are
displayed.
Discharge status indication
Depending on the battery type set, switch-on limits for the additional “Warning” (26)
and “Stop” (28) indicators may result.
Numb
er
Bars
Charging
condition
Wet battery Maintenance-free battery
LED (yellow)
Warning
LED (red)
Stop
LED (yellow)
Warning
LED (red)
Stop
10 90.1- 100% Off Off Off Off
9 80.1 - 90% Off Off Off Off
8 70.1 - 80% Off Off Off Off
7 60.1 - 70% Off Off Off Off
6 50.1 - 60% Off Off Off Off
5 40.1 - 50% Off Off On Off
4 30.1 - 40% Off Off On On
3 20.1 - 30% On Off On On
2 10.1 - 20% On On On On
Avoid falling below the 20% limit for wet batteries resp. 40% limit
for maintenance-free batteries.
