4.2.2 Charging the battery
Starting to charge with the on-board charger
– ELG mains connection
Mains supply: 230 V / 110 V (+10/-15%)
Mains frequency: 50 Hz / 60 Hz
The mains cable and the mains connector (17) of the battery charger are integrated
into the storage compartment in the dashboard panel.
Charge the battery
Requirements
– Park the truck securely, see page 76.
– Expose the battery, see page 46.
– Correct charging program set on
charger.
Procedure
• Remove any insulating mats from the
battery.
• The battery connector must remain
plugged.

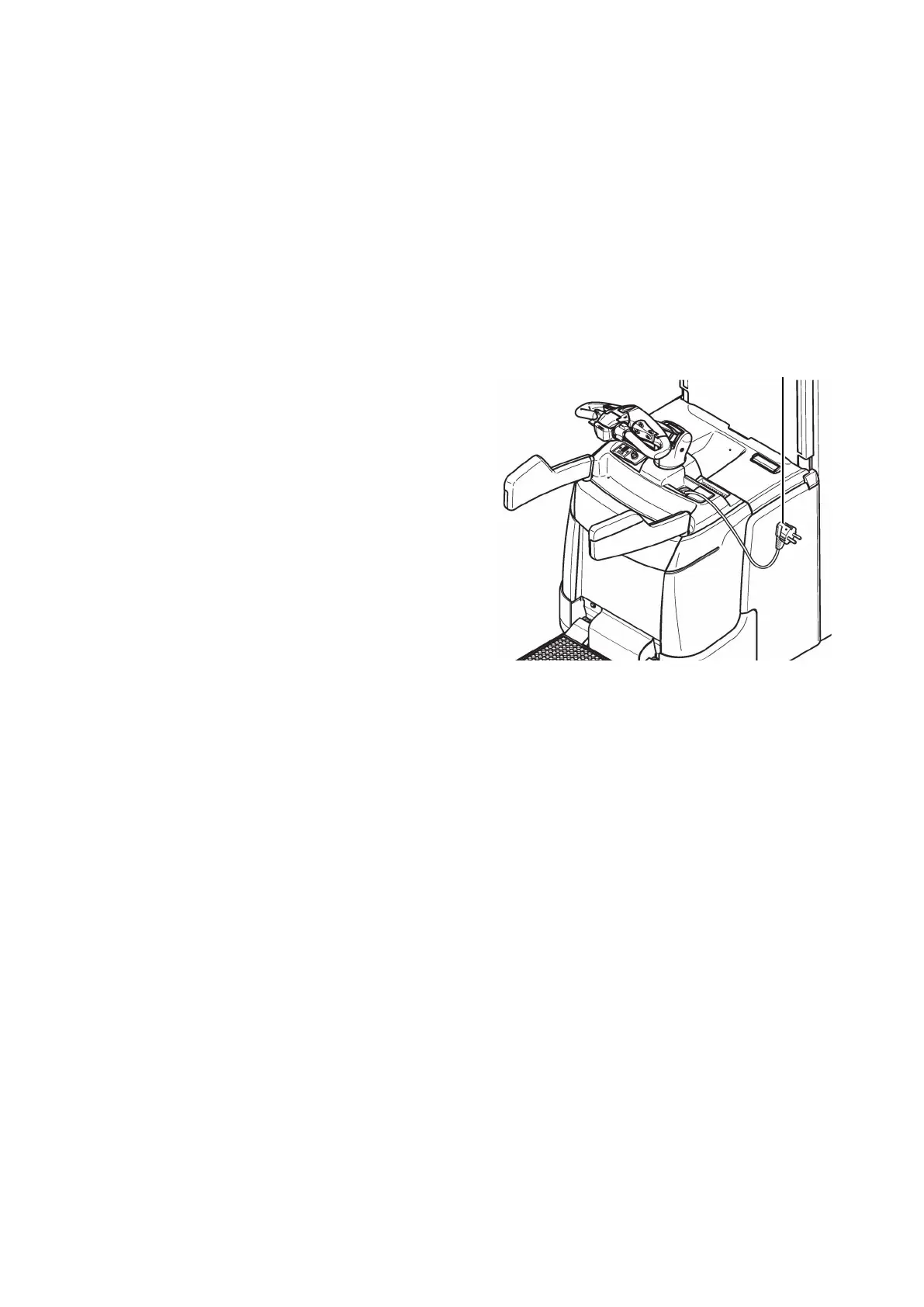

• Attach the mains connector (17) to a
mains socket.
• Pull the emergency disconnect switch
up.
The flashing LED indicates the charge status or a fault (for flashing codes see
“LED Display” table).
The battery is now charged.
Z
When the mains connector (44) is attached to the mains, all the truck’s electrical
functions are disconnected (electric immobilizer). The truck cannot be operated.
53
04.19 en-GB
