2.2 Battery discharge indicator
When the truck has been released via the key
switch, CanCode or ISM, the battery charge status

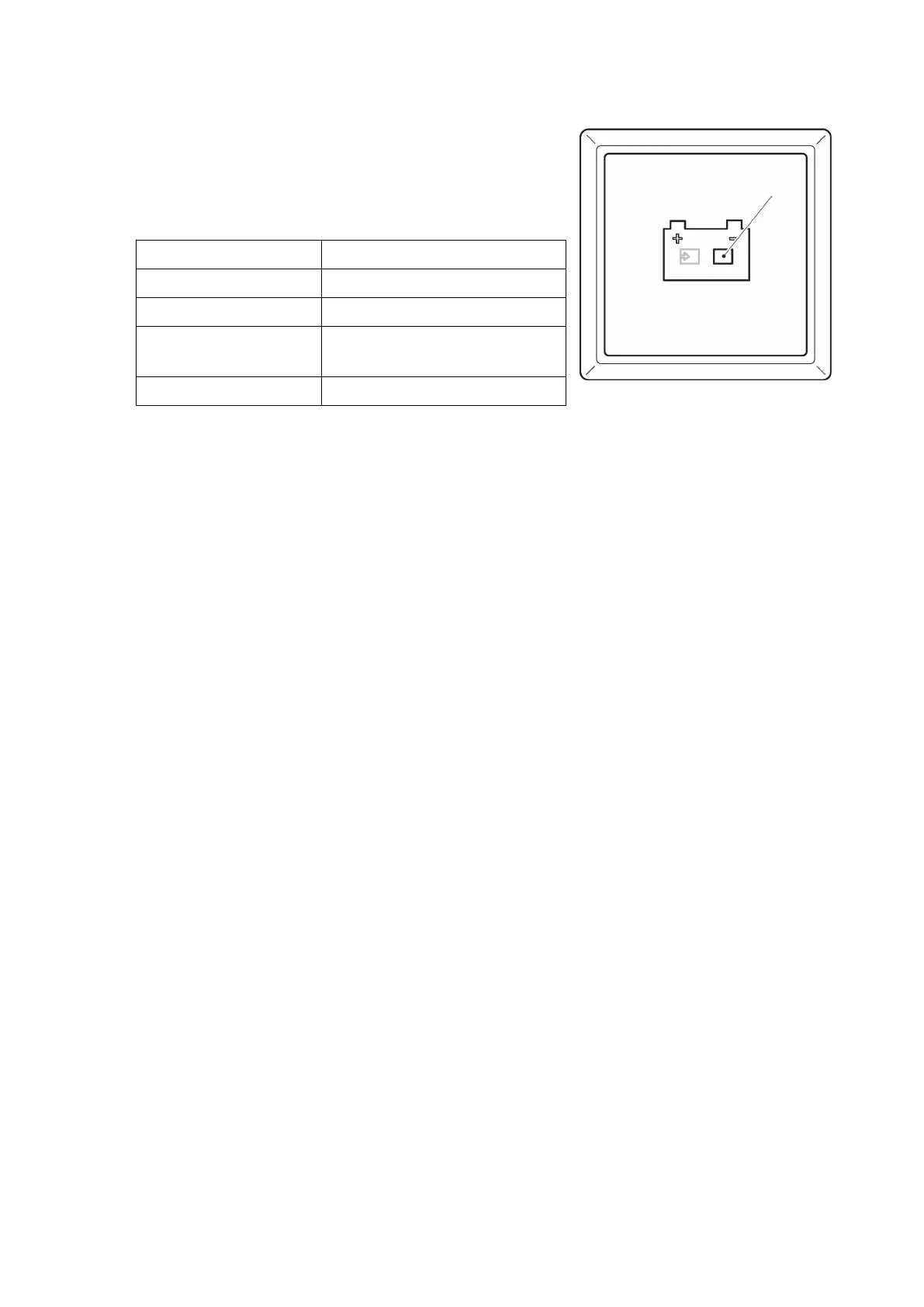

is displayed. The LED colours (65) represent the
following conditions:
LED colour Charge status
Green 40–100%
Orange 30–40%
Green/orange
flashes at 1 Hz
20–30%
Red 0–20%
Z
If the LED is red, the load can no longer be lifted. Lifting is only enabled when the
battery connected is at least 70% charged.
If the LED flashes red and the truck is not ready for operation, inform the
manufacturer's service department. Red flashing is a truck controller code. The
flashing sequence indicates the type of fault.
