4.10.4 Lifting two palletised loads
Z
ERC 212z-216z only
Z
For double decker option only
CAUTION!
Risk to operational stability
In order not to jeopardize the operational stability, pay attention to the weight when
transporting two pallets so that the truck does not tip over.
u
In order not to jeopardize the operational stability, the heavier pallet should always
be transported underneath.
Requirements
– Load correctly palletised.
– Load weight matches the truck's rated
capacity.
– Load handler evenly laden for heavy loads.

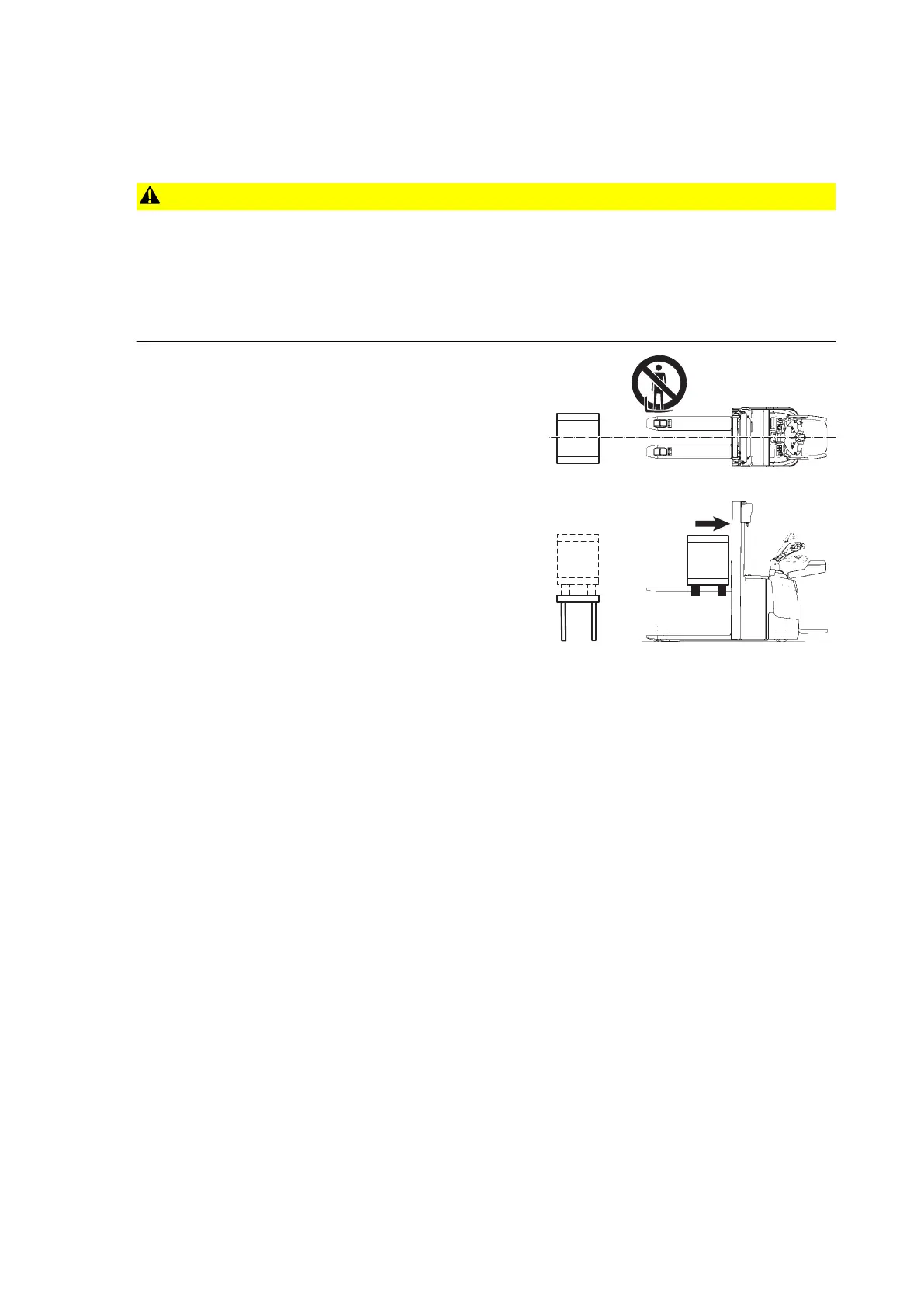

Procedure
• Drive the truck slowly up to the pallet.
• Insert the load handler slowly into the first
pallet until the pallet is resting against the
back of the load handler (see right-hand
graphic).
Z
The load must not extend by more than
50 mm beyond the load handler tips.
• Raise the load handler until you reach the desired height, (see page 94).
Z
In double-decker mode the load handler must not be raised higher than 1800 mm.
The bottom load must be heavier than the upper load.
• Insert the support arms under the second pallet.
• Raise the support arms with the "Support arm lift" button.
Both pallets are raised.
Z
When transporting, the load handler with the upper load must be lowered as near as
possible to the lower load, however not on top of the lower load.
