Jungheinrich ERE Series User Manual

0709.GB
F 10

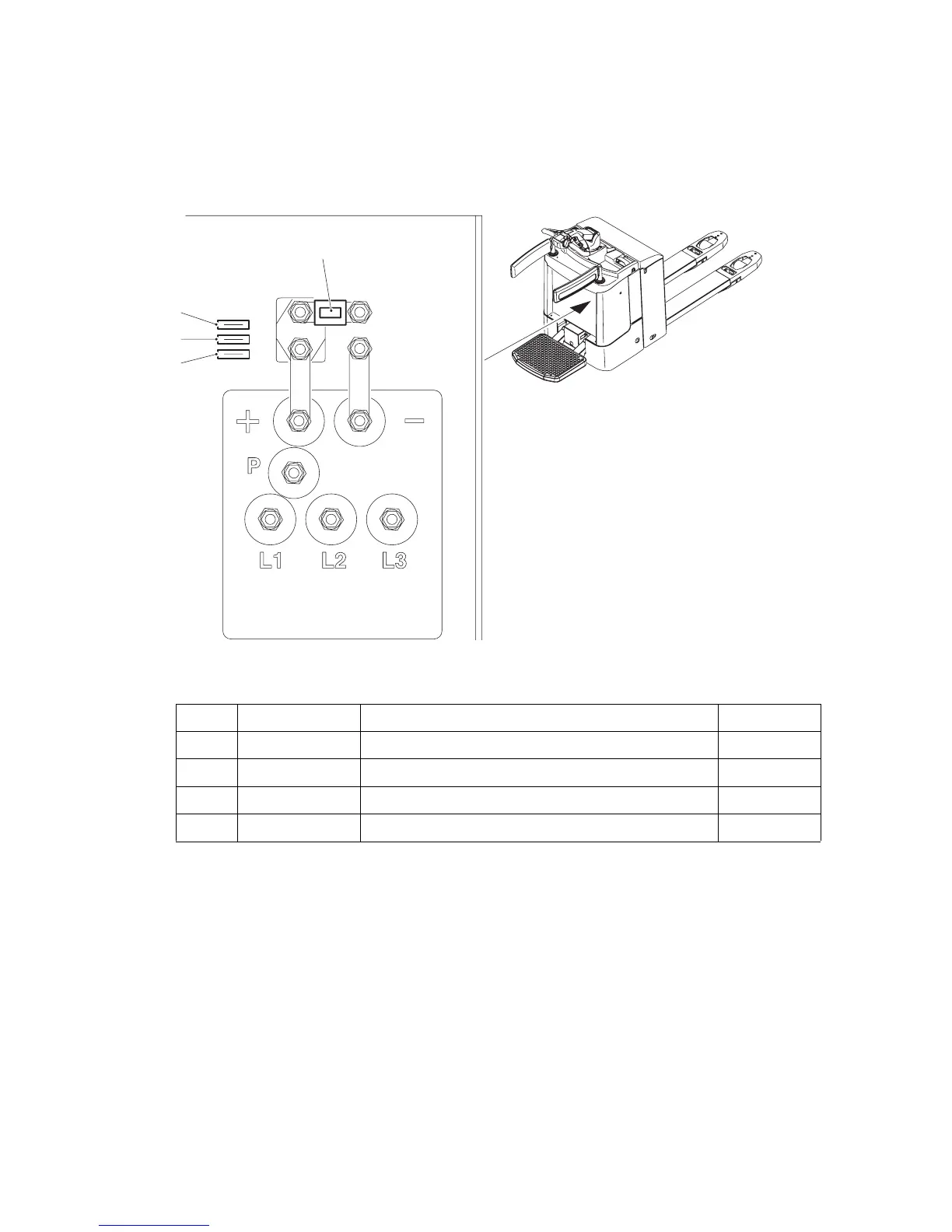

6.6 Checking electrical fuses
– Prepare the truck for maintenance and repairs (see Section 6.1).
– Dismantle the front panel (see Section 6.3).
– Check rating of all fuses in accordance with table, replace if necessary.
Item Description To protect: Rating
8 F15 Traction / Lift motor 200 A
9 F13 Solenoid / magnetic brake 10 A
10 1F9 Travel/Lift Controller 5 A
11 6F1 Battery discharge indicator 2 A
11
8
9
10
0709.GB
F 10
6.6 Checking electrical fuses
– Prepare the truck for maintenance and repairs (see Section 6.1).
– Dismantle the front panel (see Section 6.3).
– Check rating of all fuses in accordance with table, replace if necessary.
Item Description To protect: Rating
8 F15 Traction / Lift motor 200 A
9 F13 Solenoid / magnetic brake 10 A
10 1F9 Travel/Lift Controller 5 A
11 6F1 Battery discharge indicator 2 A
11
8
9
10
