Tilting the mast forward / backward
Requirements
– Truck prepared for operation, see
"Preparing the truck for operation" on
page 99.

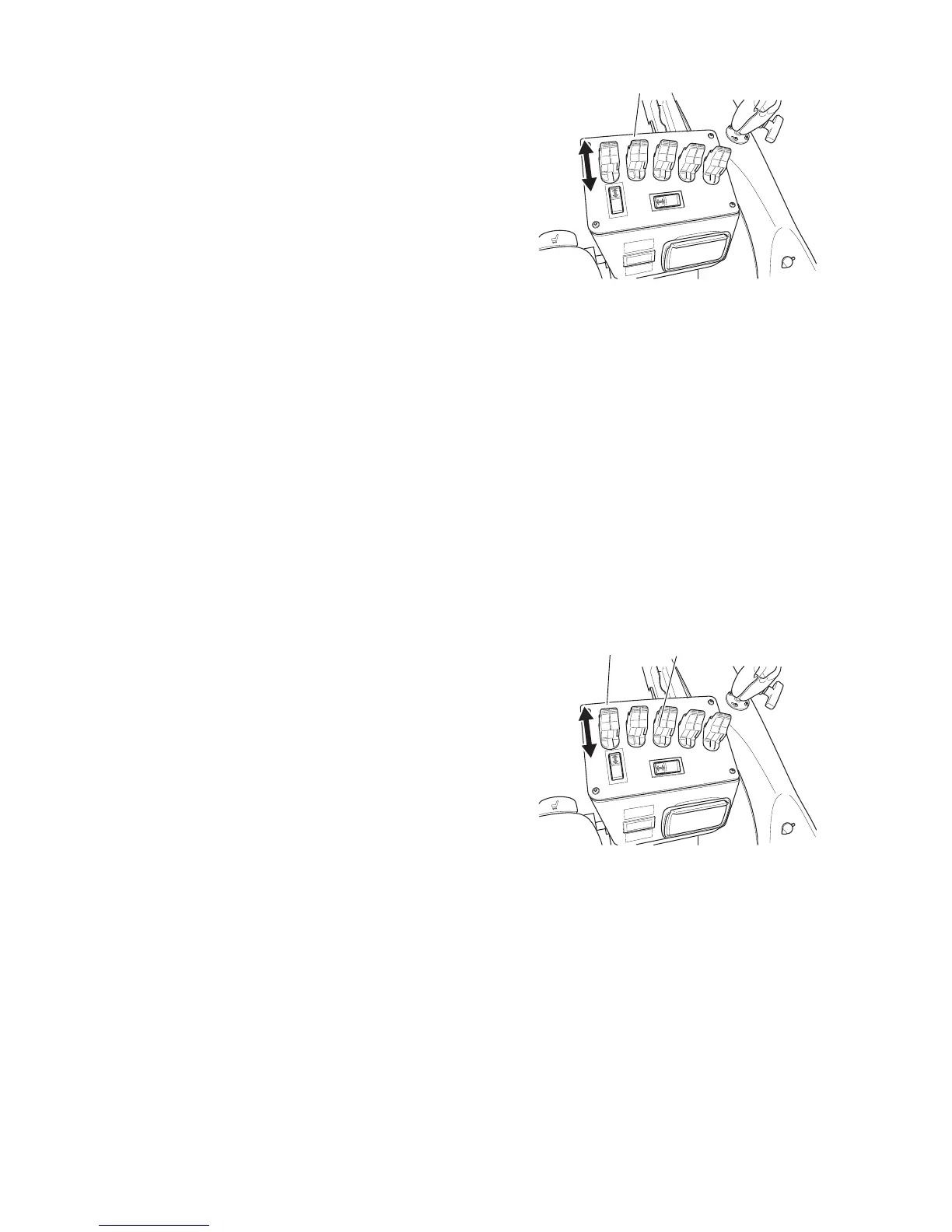

Procedure
• Pull back on the lever (78). The mast tilts
back.
• Push forward on the lever (78). The mast
tilts forward.
The mast is now tilted back or forward.
Z When the end stop for the operation has been reached (there will be a noise from
the pressure limitation valve) release the lever. The lever will revert automatically
to the neutral position.
Depositing a load unit (SOLO-PILOT)
Procedure
• To place the load in a horizontal position: Press the lever (78) in direction (A).
• To position the load at the correct height: Press the lever (187) in direction (A or B).
• To lower the load: Press the lever (187) in direction (A).
Z When you reach the limit position return the control lever to its home position.
Sideshifter (SOLO-PILOT)
Procedure
• Push the lever (79) in direction (A). The fork
tines are shifted to the right (as seen by the
driver).
• Pull the lever (79) in direction (B). The fork
tines are shifted to the left (as seen by the
driver).
