6.12.2 Operating the lift mechanism with the Multi Pilot
Lifting and lowering
Requirements
– Truck prepared for operation, see
"Preparing the truck for operation" on
page 99.
Procedure

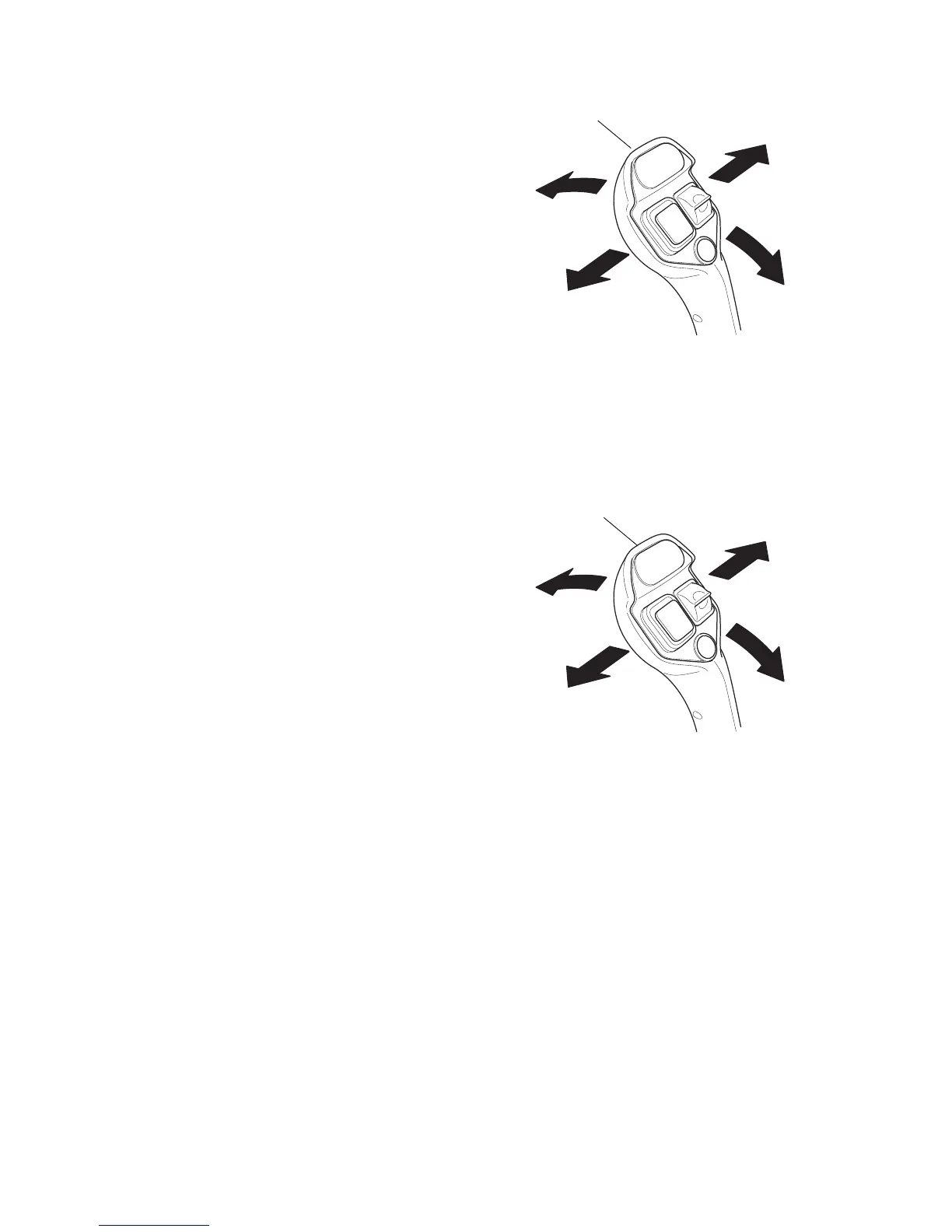

• Pull back on MULTI-PILOT (77). The load
is raised.
• Push MULTI-PILOT (77) forward. The
load is lowered.
The load is now raised or lowered.
Z When the end stop for the operation has been reached (there will be a noise from
the pressure limitation valve) release MULTI-PILOT. MULTI-PILOT will revert
automatically to the neutral position.
Tilting the mast forward / backward
Requirements
– Truck prepared for operation, see
"Preparing the truck for operation" on
page 99.
Procedure
• Push MULTI-PILOT (77) to the left. The
mast tilts back.
• Push MULTI-PILOT (77) to the right. The
mast tilts forward.
The mast is now tilted back or forward.
Z When the end stop for the operation has been reached (there will be a noise from
the pressure limitation valve) release MULTI-PILOT. MULTI-PILOT will revert
automatically to the neutral position.
